Operating Instructio
ns
CLV640 Bar Code Scanner
90
©
SICK AG · Division Auto Ident · German
y
· All rights reserved
8011975/0000/2008-04-1
4
Technical data
10.3.2
Depth of field ranges of the line
scanner/raster scanner with side reading
window

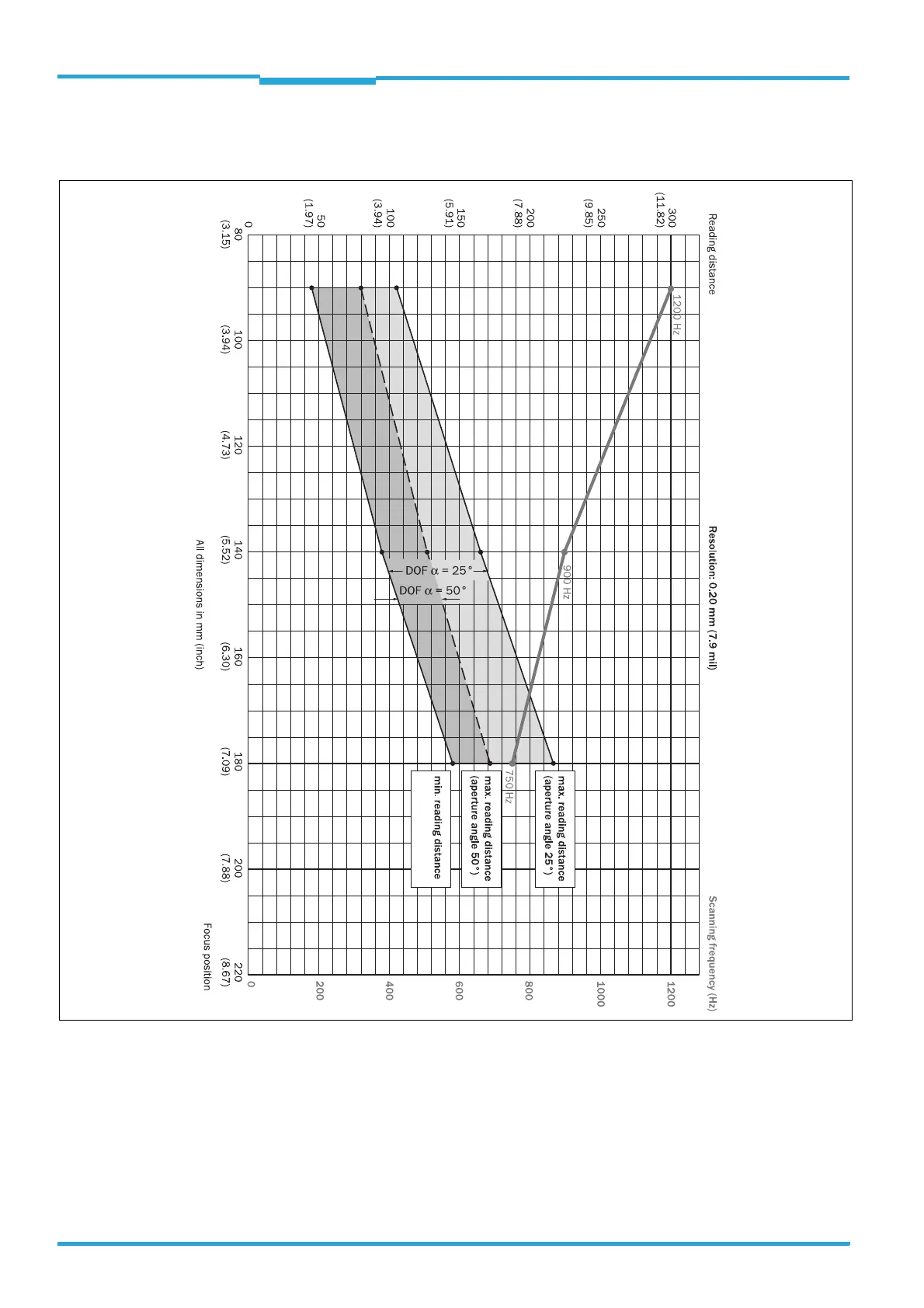

Fig. 10-7:
Line scanner/raster scan
ner with side reading window:
min. and max. reading distance depending on the focus position
and the aperture angle with a resolution of 0.2
mm (8
mil)
89
91
