Chapter 11 Operating Instructions
CLV640 Bar Code Scanner
116 © SICK AG · Division Auto Ident · Germany · All rights reserved 8011975/0000/2008-04-14
Appendix

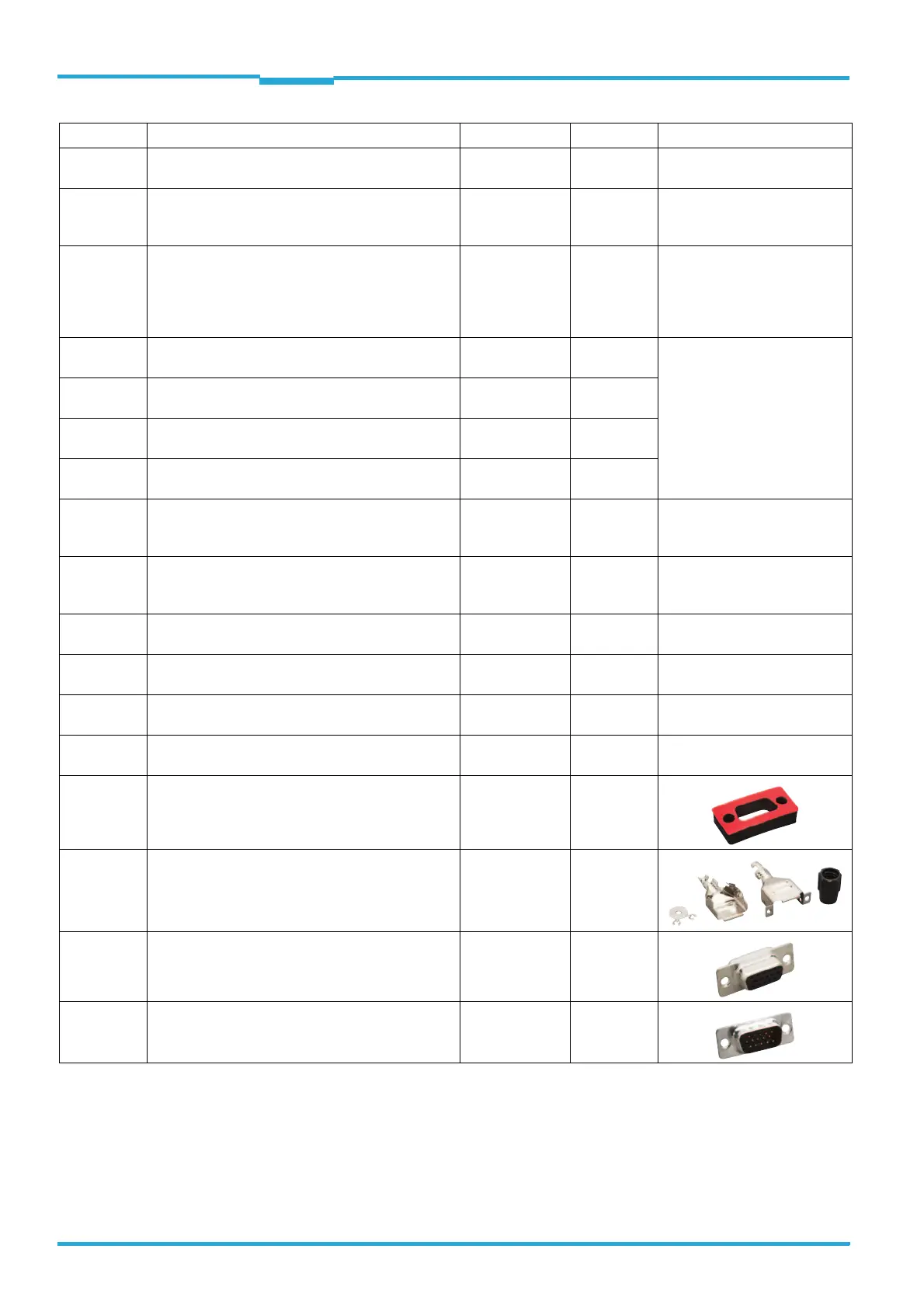

Tab. 11-9: In stock accessories: General cables and connectors for bar code scanner
6027048 Unitronic CAN data cable, Ø 9.7 mm (0.38 in),
twisted pair
2 x 2 x 0.5 mm²
(21 AWG)
Sold by the
metre
CAN-Bus
2014054 RS-232 data cable, shielded, with 2 x 9 -pole D-Sub
sockets. SICK null modem cable (pin 2 and pin 3
crossed)
3 3 m (118.11
in)
CLV640 to PC
2030490 Data cable with 9-pole D-Sub plug and 3-pole molex
plug. For configuring the CMF400 with PC software
"ComPro"
Required in addition to the extension: Data cable
no. 2014054
3 0.25 m (9.84
in)
PC to CMF400
6025906 Power supply line, with 5-pole M12 socket (direct),
A coded and open end
5 x 0,34 mm²
(28 AWG)
2 m (78.74
in)
CDF600 at power supply
6025908 As No. 6025906, but longer 5 x 0,34 mm²
(28 AWG)
10 m (394
in)
6025909 Power supply line, with 5-pole M12 socket (90° off-
set), A coded and open end
5 x 0.34 mm²
(28 AWG)
2 m (78.74
in)
6025911 As No. 6025909, but longer 5 x 0,34 mm²
(28 AWG)
10 m (394
in)
6025931 Connection cable for switching input or output, with
5-pole M12 plug (direct), A coded and 5-pole M12
socket (direct), A coded
2 m (78.74
in)
CDF600 at sensors and PLC
6021195 Data cable (RS-323), shielded, with 4-pole M8 plug
and 9-pole socket. For CDF600 configuration with
SOPAS-ET
2 m (78.74
in)
CDF600 on PC
6021156 Terminating resistor for PROFIBUS, 5-pole M12 plug
(direct), B coded
- - On PROFIBUS
6021353 5-pole M12 socket (direct), B coded, for PROFIBUS
connection cable
- - CDF600 on PORFIBUS (Bus IN)
6021354 5-pole M12 plug (direct), B coded, for PROFIBUS
connection cable
- CDF600 on PORFIBUS (Bus
OUT)
6021355 PROFIBUS connection, shielded 2 x 0,34 mm²
(28 AWG)
Sold by the
metre
PROFIBUS network
4038847 Sealing rubber IP 65 for extension cables with 15-
pole D-Sub connectors
--
6009438 D-Sub connector housing (metal) for 9-pole or 15-
pole HD inserts
--
6010019 D-Sub connector insert, 15-pole HD female
multipoint connector (socket), hand soldering
--
6010020 D-Sub connector insert, 15-pole HD male multipoint
connector (plug), hand soldering
--
Order no. Description Wires Length Connection/view
