SICK Lector64x Flex - Page 90

CDM420-0006
PNP sensor 4
V
S
GND
Out
GND
S6
V
S ext
V
in
CMC600
No
YES
S8 : CMC
ON
OFF
S6 : SGND
17
SGND
8
Shield
39
+24 V*
A
Aux In B
+24V*
SensGND
Trigger sensor 1
5
2
3
CDM420-0006
V
in
GND
S6
CMC600
ON
OFF
S6 : SGND
No
YES
S8 : CMC
17
SGND
8
Shield
39
+24 V*
A
Aux In B
+24V*
SensGND
3
1
V
S ext
GND
A
17
2
2

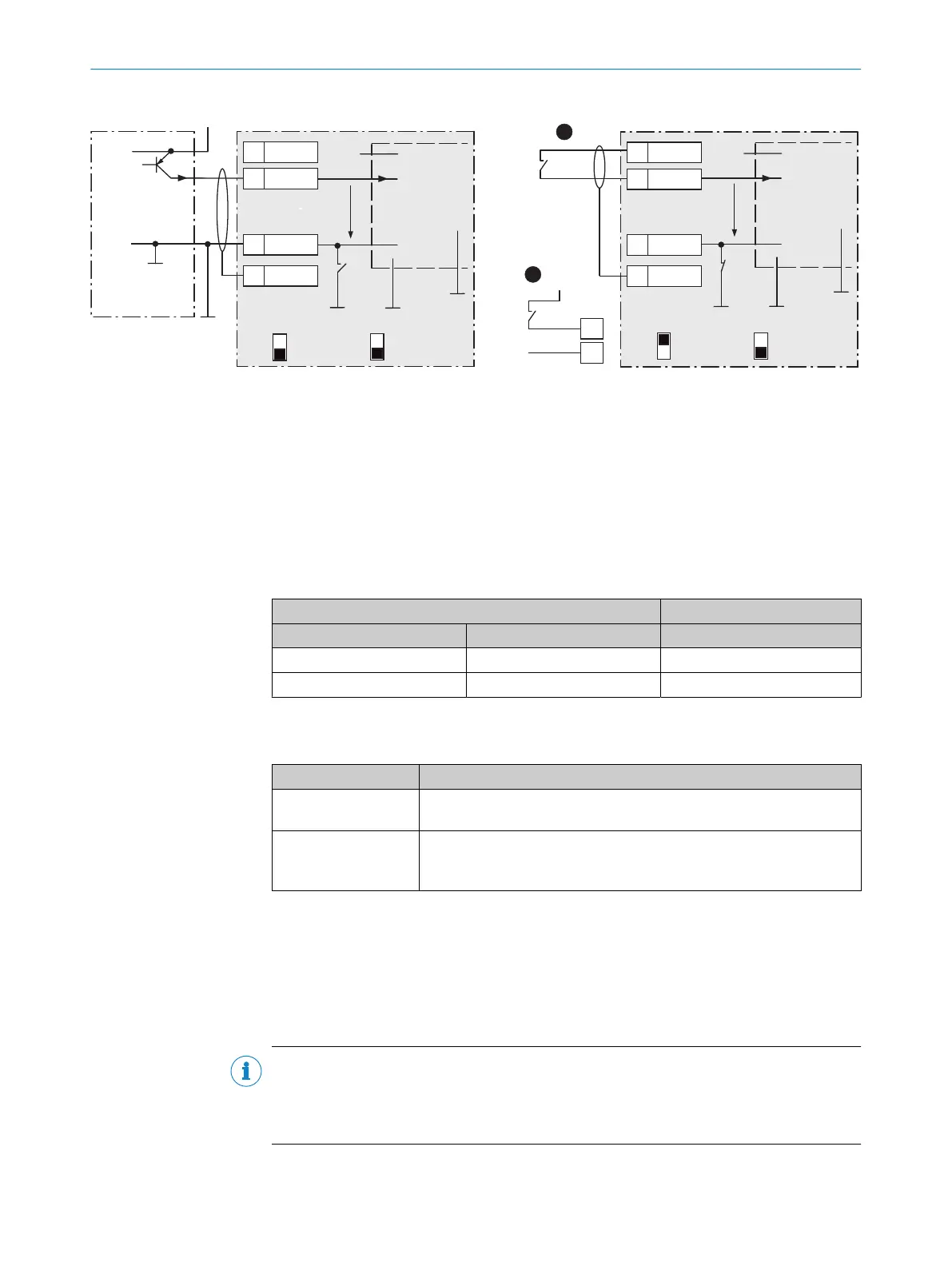

Figure 39: Left: Trigger sensor connected potential-free and supplied with power externally. Right: Alternatively switch, !
supplied with power by connection module CDM420-0006 or " connected potential-free and supplied with power externally.
Switch setting S3 then as in left figure.
1
Trigger sensor, e.g. for read cycle generation
2
External supply voltage V
S ext
3
Input voltage V
in
4
PNP sensor
5
Supply voltage V
S
Table 33: Assignment of placeholders to the digital inputs
CDM420-0006 Device
Terminal A Signal B External input C
18 Aux In 1 1
19 Aux In 2 2
Function of switch S6
Table 34: Switch S6: SGND - GND
Switch setting Function
ON GND of the trigger sensor connected with GND of CDM420-0006 and
CMC600
OFF Trigger sensor connected potential-free at CDM420-0006 and
CMC600.
Common, isolated reference potential of all digital inputs is SGND.
Functional principle of the external digital inputs
The optional CMC600 parameter cloning module in combination with the CDB or CDM
connection module offers two additional physical digital inputs for the device. The
inputs are available at the respective terminals of the connection module. To distin‐
guish them from the physical digital inputs directly on the device, these addition inputs
via the CMC600 are designated as “external inputs”.
NOTE
The CMC600 transmits the switching signals of the external digital inputs as statuses to
the local inputs of the device via its serial data interface.
The digital inputs are not suitable for time-critical applications.
13 ANNEX
90
