Installation
Assembly can be done in hot or cold state.

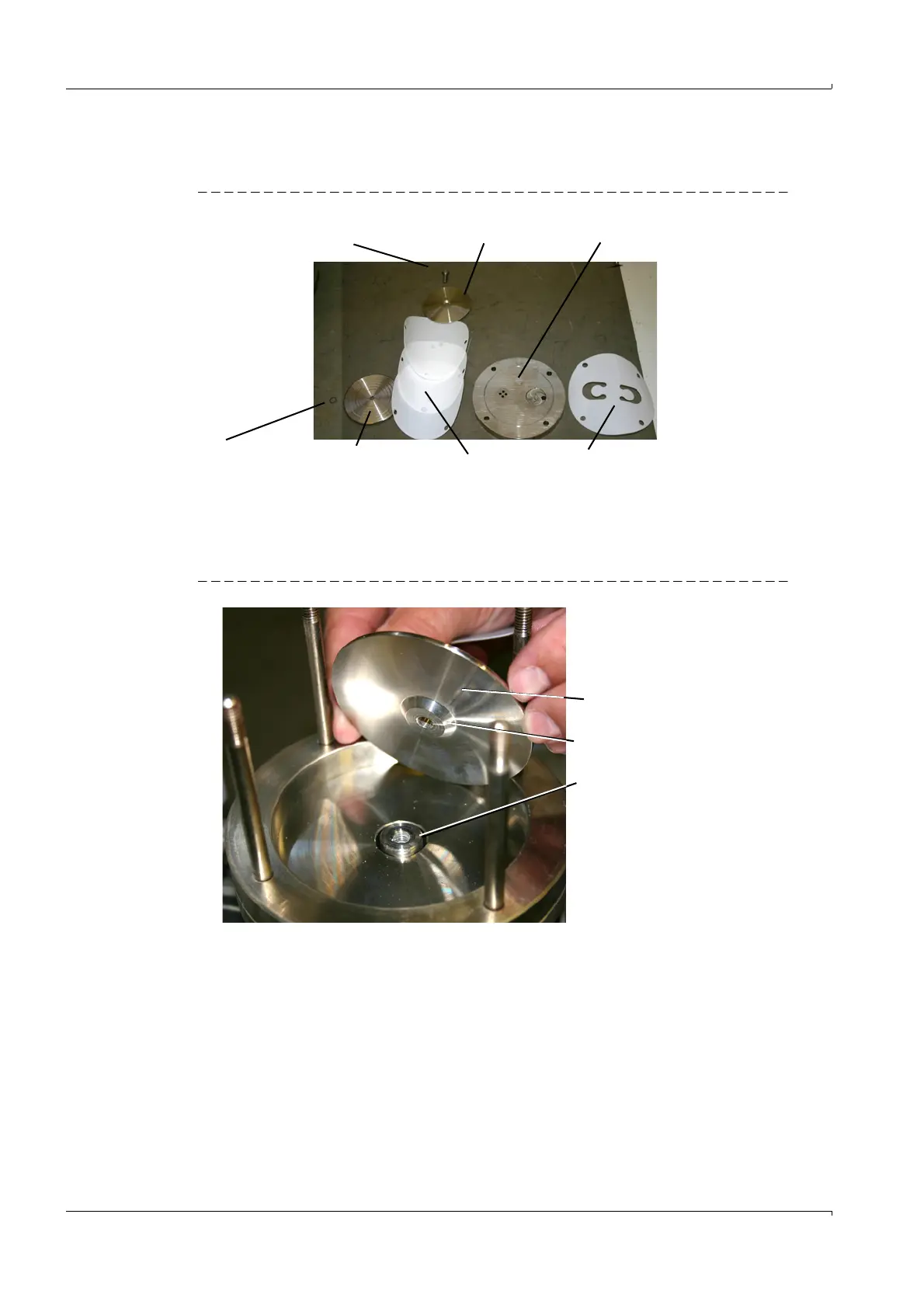

Fig. 38 Pump assembly - overview (use the parts from the left to the right)
1 Insert a new O-ring (
→
Fig. 39) into the groove of the con-rod.
2 Fit the lower pressure plate. The cone of the lower pressure plate must point down-
wards.
Do not shift the O-ring.
Fig. 39 Lower pressure plate
O-ring
Lower pressure plate
Pump membranes
Valve plate
Countersunk screw
Pressure disk
Intermediate plate
Lower pressure plate
Cone
O-ring
