4.2.1 Configuring with the Safety Designer
Overview

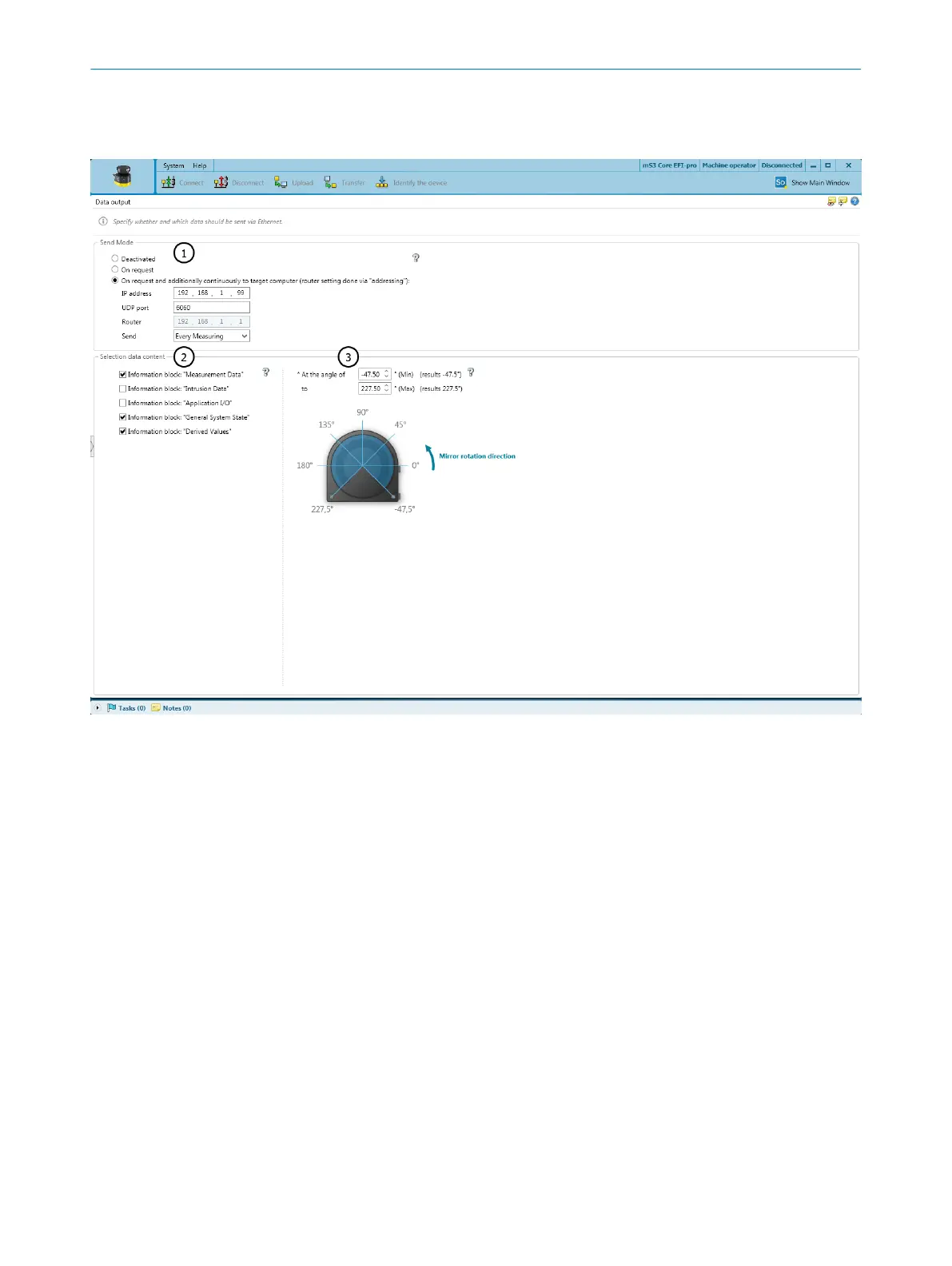

Figure 2: Data output
1
Send mode
2
Data content
3
Angular range
Using Safety Designer, you can configure the safety laser scanner and the data output.
A c
onfiguration that is created with the Safety Designer is saved in the device and is
also active after restarting the device.
Send mode
•
Deactivated: Data output is deactivated
•
On request: Data is output when there is an explicit request from a host computer
via TCP/IP using CoLa2
•
Continuous and on request: Data is output continuously via UDP to a defined target
address and also when there is an explicit request from a host computer via
TCP/IP using CoLa2
2)
2)
F
or devices with a max. protective field range of 9.0 m, the transmitted data quantity can be very large (> 230 kByte/s) if all measured
values are transmitted. For stable data output, you can adapt the transmission frequency (e.g. every second measurement) or decrease
the angular range.
DATA OUTPUT 4
8022708/2019-04-15 | SICK T E C H N I C A L I N F O R M A T I O N | microScan3, outdoorScan3
