SICK MPS-G

Q2
PWR
Q1
Q2
PWR
Q1
Q2
PWR
Q1
Q2
PWR
Q1
Q2
PWR
Q1
Q2
PWR
Q1
f f
fi
Q2
PWR
Q1
s
s s
f f
fi fi
si
s
s
x
Finish Teach
→ Save changes
→ Exit teach menu
→ Q1-LED lights up for Qint1,
Q2-LED lights up for Qint2,
Q1- and Q2-LED light up
same time to Qint3
Exit teach menu
without changes
→ Q1-LED lights up for Qint1,
Q2-LED lights up for Qint2,
Q1- and Q2-LED light up
same time to Qint3
1x
3 - 5 sec
(very long)
Delete
Qint
Action not preformed if button is released before
request time start
Reset Menu
Action preformed if button is
released within request time
Action not preformed if button is
released after request time end
0 sec 1 sec 1.2 sec 3 sec 5 sec time
LED behaviour
Off
On
Slow blink
Inverted slow blink
Fast blink
Inverted fast blink
Tallymark blink
** switch points can only be
adjusted seperately. After adjusting
width of one Qint the menu ist left.
For adjusting the width of the second
and/or third Qint menu has to be
entered again.
Qint
successfully deleted

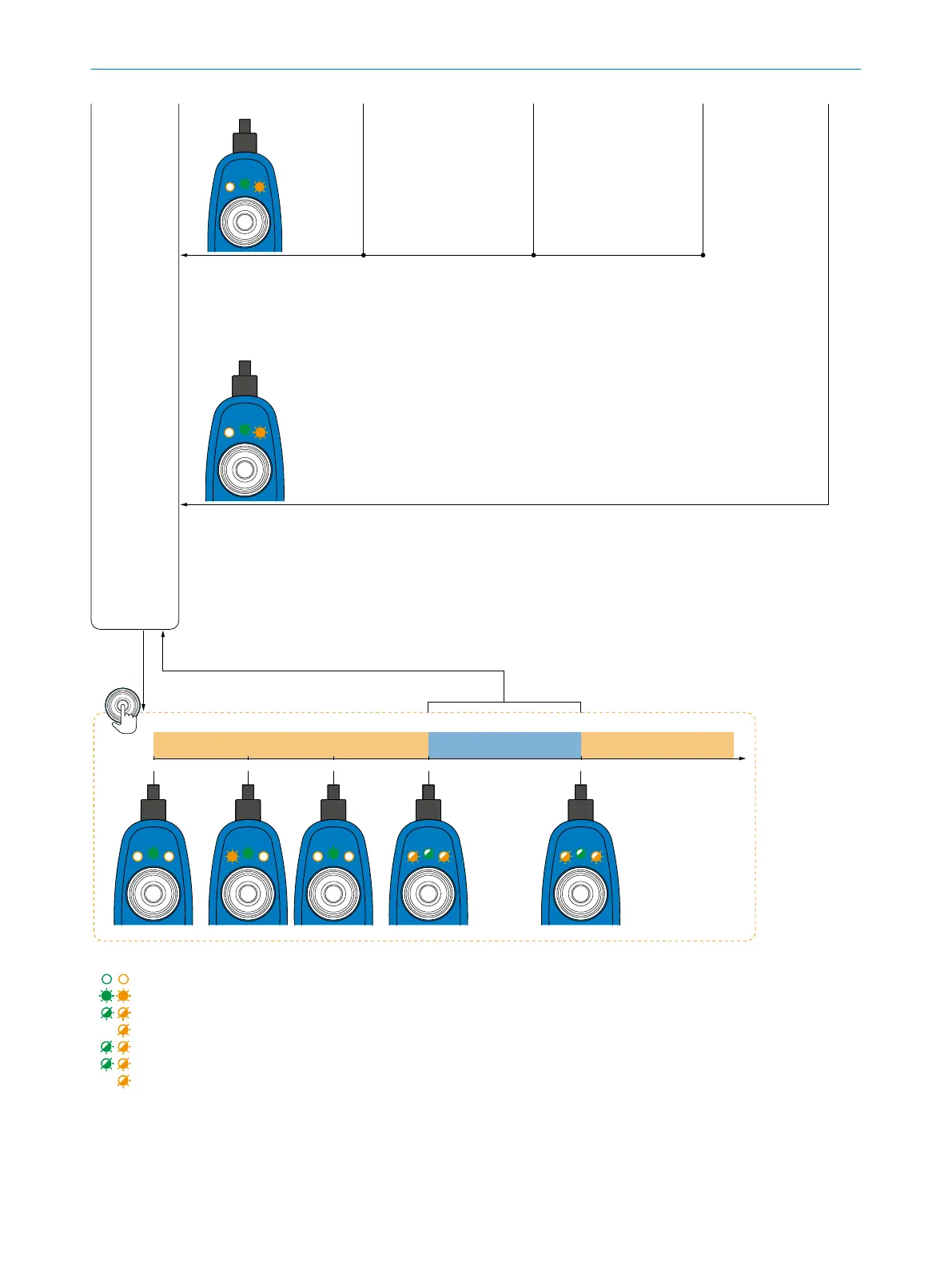

Figure 20: Manual Teach-in teach-in procedure
