SICK MPS-G

1
1
Qint.SP1
+ 25 mm
OFF
ON
OFF
OFF
ON
OFF
+ 25 mm
– 25 mm
– 25 mm
ON ON OFF OFF
OFF OFF
ONON
Qint.SP1
2 3 2
2 3 2

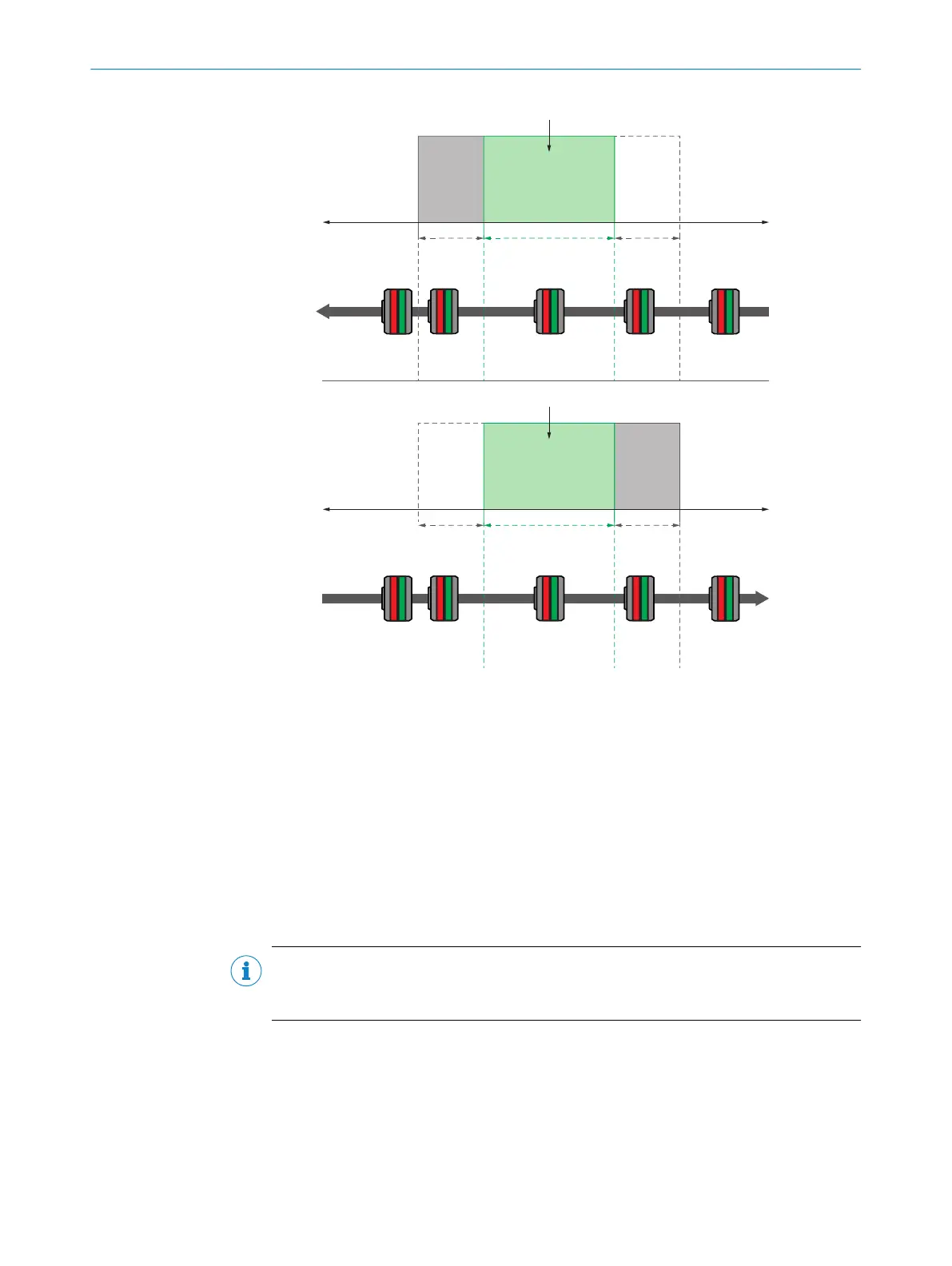

Figure 5: Switching behavior after Manual Teach
1
Direction of movement of the magnet
2
Hysteresis
3
Width of the switching point
There is no Dynamic Pilot during manual teach-in of the switching points. The switching
point width is 2mm according to the factory setting and can be adjusted via the Teach
menu (1 – 5mm).
3.3.5 Switching behavior after Dynamic Teach of 2 switching points
If the sensor, during Dynamic Teach, detects teach 2 x piston status v = 0, 2 switching
points are set.
NOTE
The dynamic teach-in and the dynamic pilot only start working from a speed of v
>0.025m/s.
Example: Arrangement of switching points for dynamic teach-in of 2 switching points
on a pneumatic cylinder
The 2 switching points are always arranged as follows during dynamic teach-in: Qint1
lies in the direction of the cable connection and Qint2 in the direction of the sensor
fixing screw. It does not matter which position is approached first.
