3 Product description
3.1 Product ID
3.1.1 Device view
1
5 6 7
2 3
4

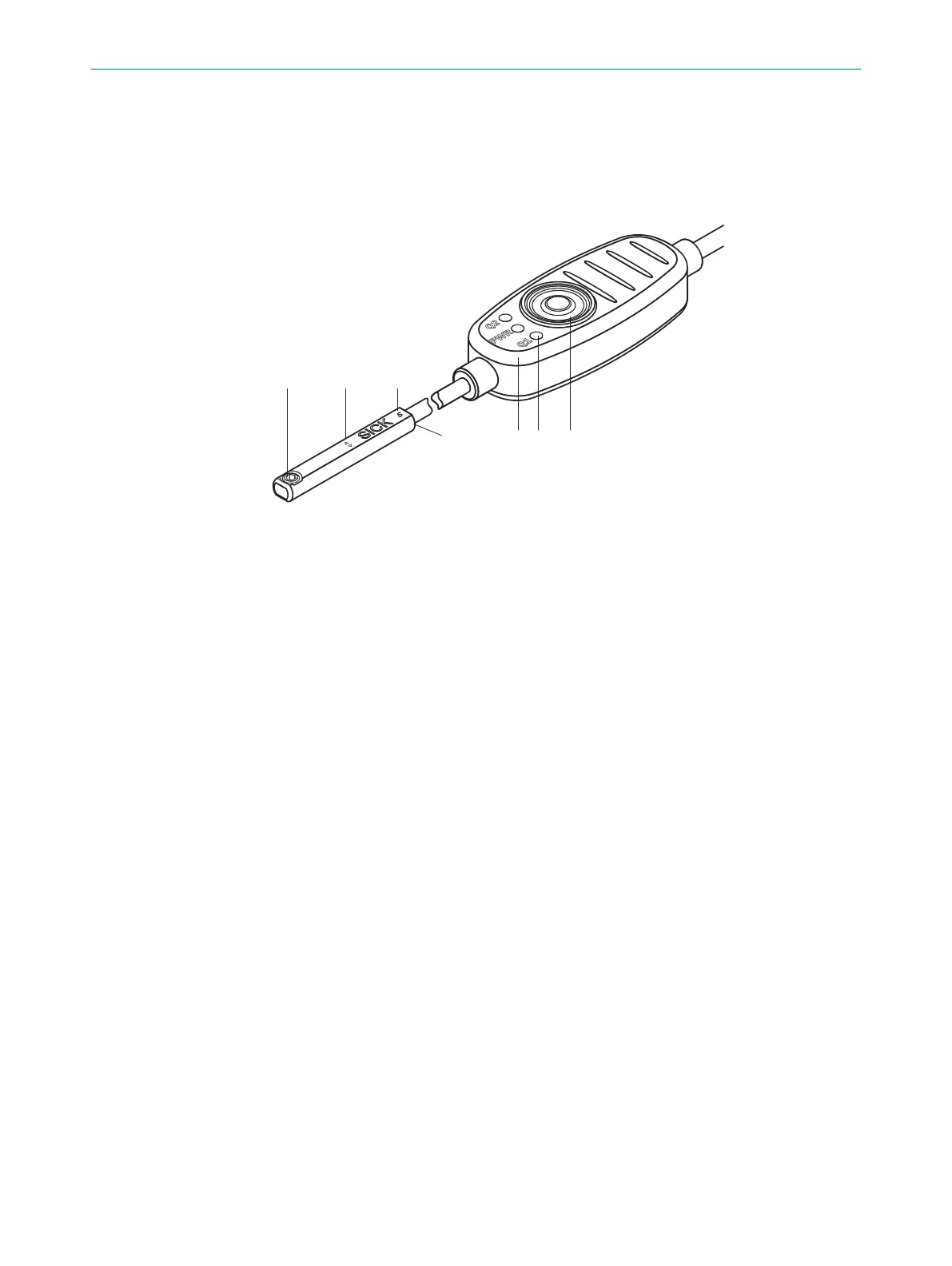

Figure 1: Operating elements and status indicators
1
Fixing screw, size 1.3 (Tightening torque M
A
= 0.1Nm)
2
Physical zero position
3
Cylinder type marking
(S = SMC/BIMBA/Schunk/PHD; F = FESTO/ZIMMER)
4
Sensor head
5
Operating element
6
3 x LED indicators
7
Teach-in button
3.2 Product characteristics
3.2.1 Product features
The MPS-G with 2 / 3 digital switching points and IO-Link (up to 8 switching points) is
used either as a magnetic cylinder sensor for non-contact detection of 2 end positions
or intermediate positions (up to 3 individually adjustable switching points in one hous‐
ing) or via IO-Link as a position sensor for non-contact linear position measurement
mainly in pneumatic cylinders, grippers and slides.
When using IO-Link, up to 8 switching points can also be set and additional actuator
diagnostic data can be recorded and output.
•
Stroke traveled
•
Cycle time
•
Dwell time of the piston
•
Travel time of the piston
•
Average piston velocity
•
Current measured field strength
•
Maximum measured field strength
•
Cycle count
•
Total distance traveled by the piston
•
Operating hours
•
Power-on/power-off cycles
