Group 3: Cables which are a source of interference such as control cables for
inductive loads, motor brakes
°
Group 4: Cables which are powerful sources of interference, such as output
cables from frequency inverters, welding system power supplies, power
cables
w
Cables in groups 1, 2 and 3, 4 must be crossed at right angles (see figure 4).
w
Route the cables in groups 1, 2 and 3, 4 in different cable channels or use
metallic separators (see figure 5 and see figure 6). This applies particularly if
cables of devices with a high level of radiated emission, such as frequency
converters, are laid parallel to device cables.
1
2
4
3
1
2
4
3
90
90

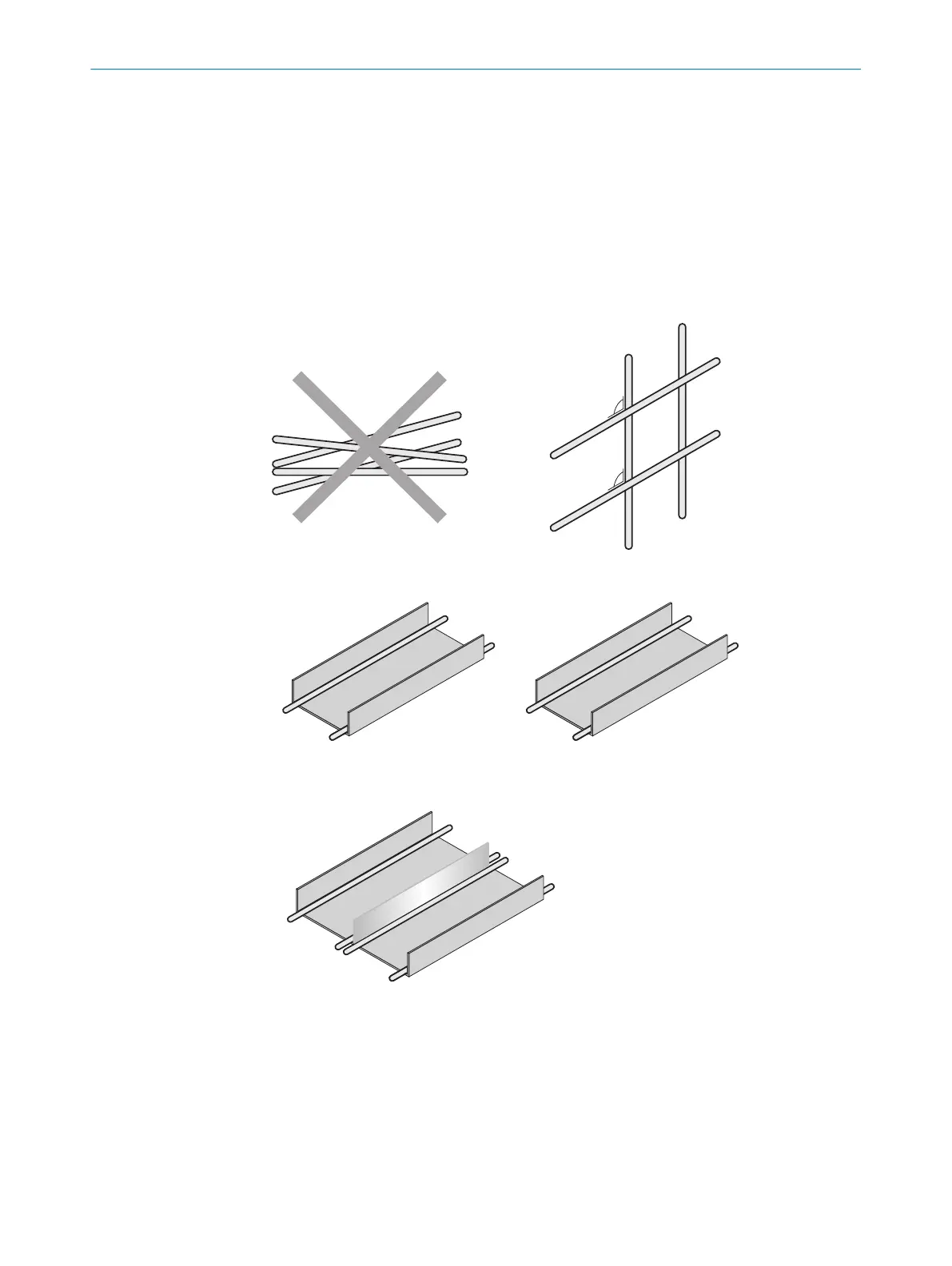

Figure 4: Cross cables at right angles
1
2
3
4
Figure 5: Ideal laying ‑ Place cables in different cable channels
1
2
3
4
Figure 6: Alternative laying – Separate cables with metallic separators
ELECTRICAL INSTALLATION
6
8019642/ZJW1/2017-04-03 | SICK O P E R A T I N G I N S T R U C T I O N S | OD1000
