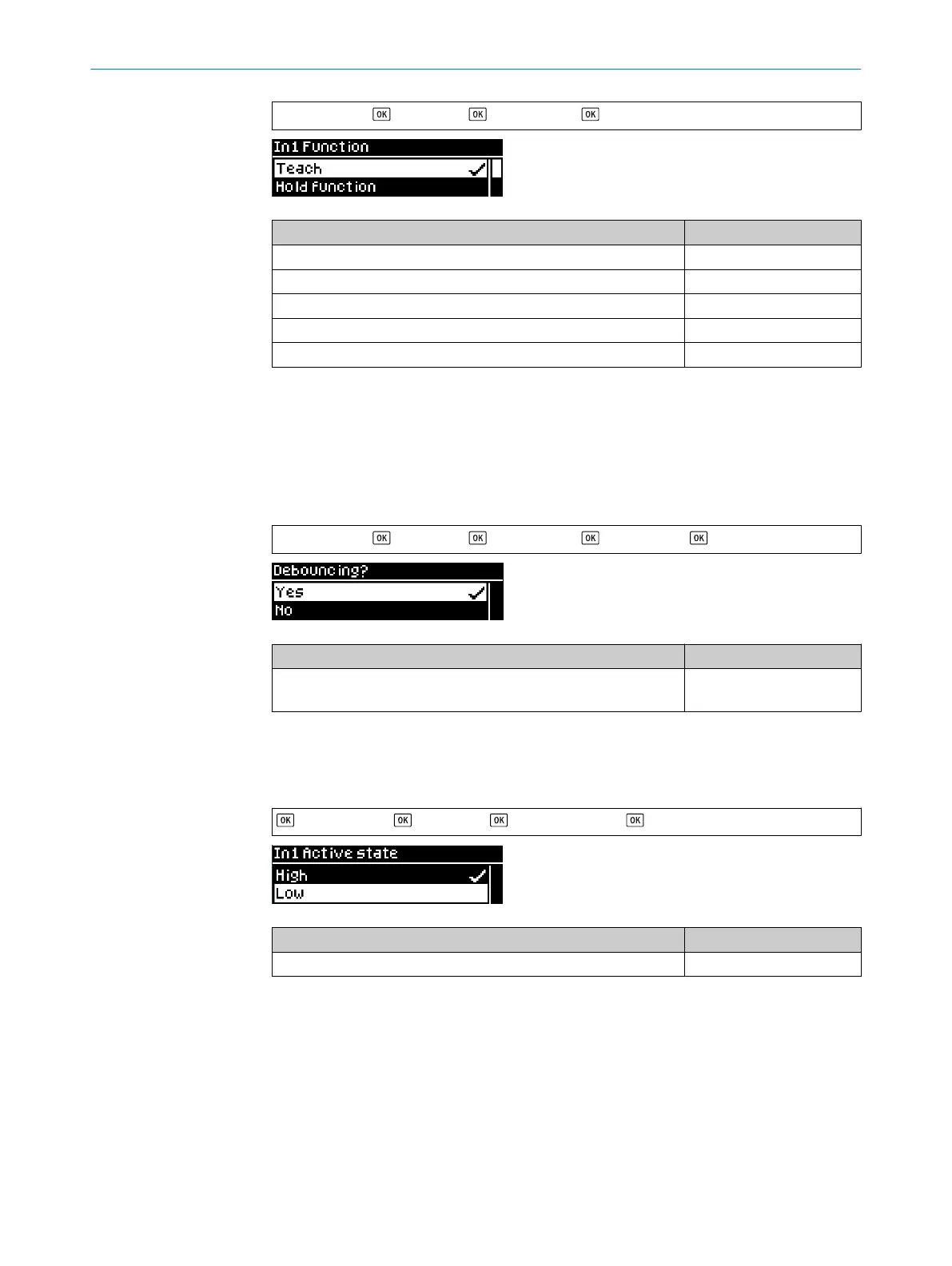

> I/O interface > > In1 input > > In1 function >
Parameter Factory setting
Teach-in
✓
Hold function -
Measured value offset -
Laser off -
Off -
Debouncing
The debounce function is only available in the Advanced user level.
When debouncing is activated, the input signal must be applied constantly to input In1
for 30 ms. The timing tolerances of the external teach-in functions take into account an
activation or deactivation of the debounce function. It is not necessary to adjust the
timings.
> I/O interface > > In1 input > > In1 function > > Debouncing>
Parameter Factory setting
Debouncing?:
Yes, no Yes
8.4.3.3 In1 active status
The input behavior can be selected as normally open (High Active, factory setting) or
normally closed (Low Active).
> I/O interface > > In1 input > > In1 active status >
Parameter Factory setting
High, Low High
8.4.3.4 Teach confirmation
If the function is activated, a confirmation can be output via the switching output Q1 for
each teach-in via the In1 input.
OPERATION VIA DISPLAY 8
8019642/ZJW1/2017-04-03 | SICK O P E R A T I N G I N S T R U C T I O N S | OD1000
49
