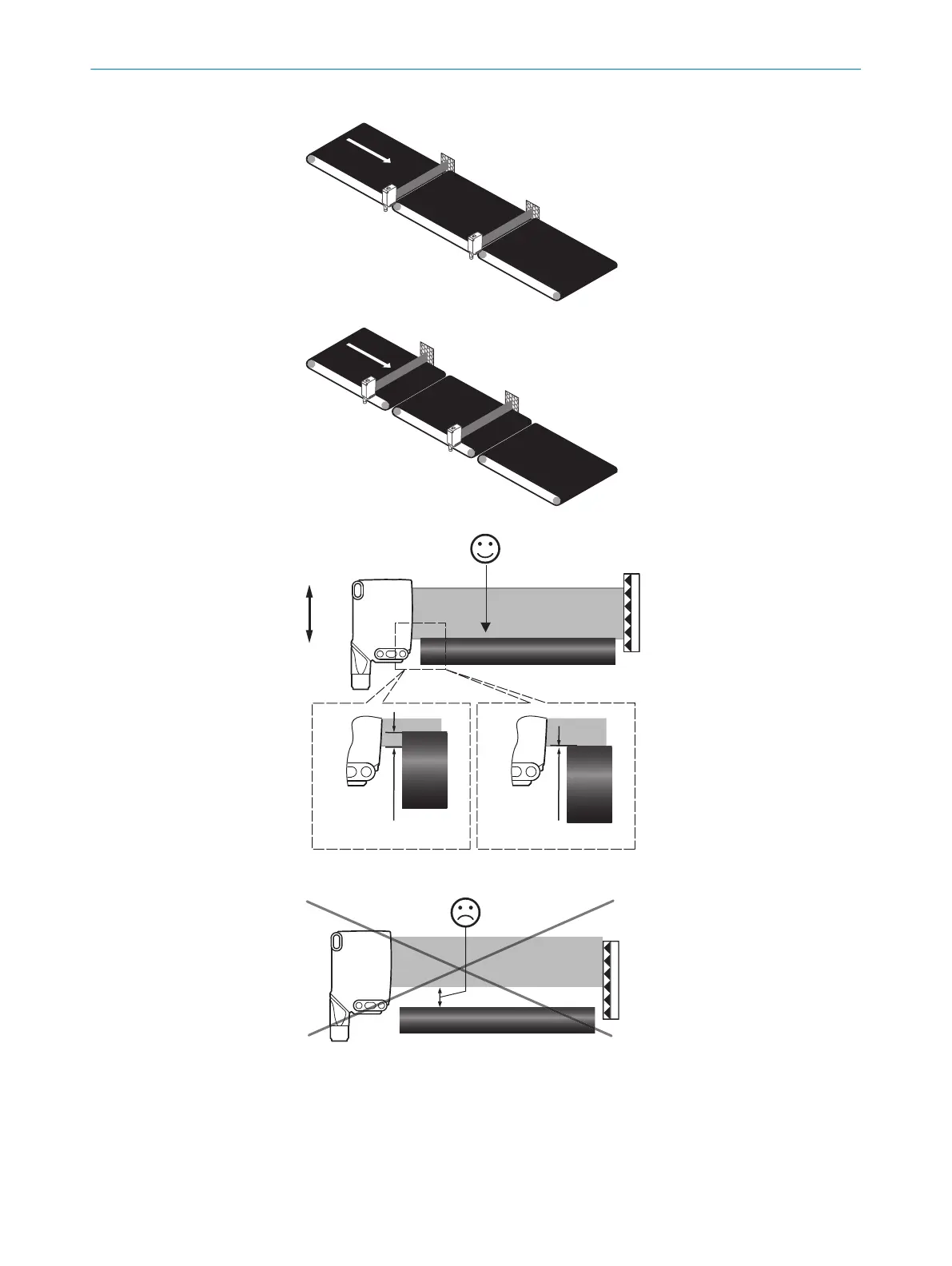

1 在两条输送带之间的间隙中对准光带
2 a) 在输送带上方对准光带。
光带位置必须与输送带平行。
3 mm
0 mm
1
2
1 RAY26P-xxxxx1 / RAY26P-xxxxx3 / RAY26P-xxxxx5 / RAY26P-xxxxx9
2 RAY26P-xxxxxA
b) 取一块金属板放在反射器前方。略微向上旋转传感器。光带大约位于输送带
上方 20 mm 处。
73
调试
118
8022178.18JF 02.07.2020 | SICK
