SICK RAY26 User Manual

Q
Push-pull
(≤ 100 mA)
+ (L+)
Q
‒ (M)
+ (L+)
Q
‒ (M)
Q
Push-pull
(≤ 100 mA)
+ (L+)
Q
‒ (M)
+ (L+)
Q
‒ (M)

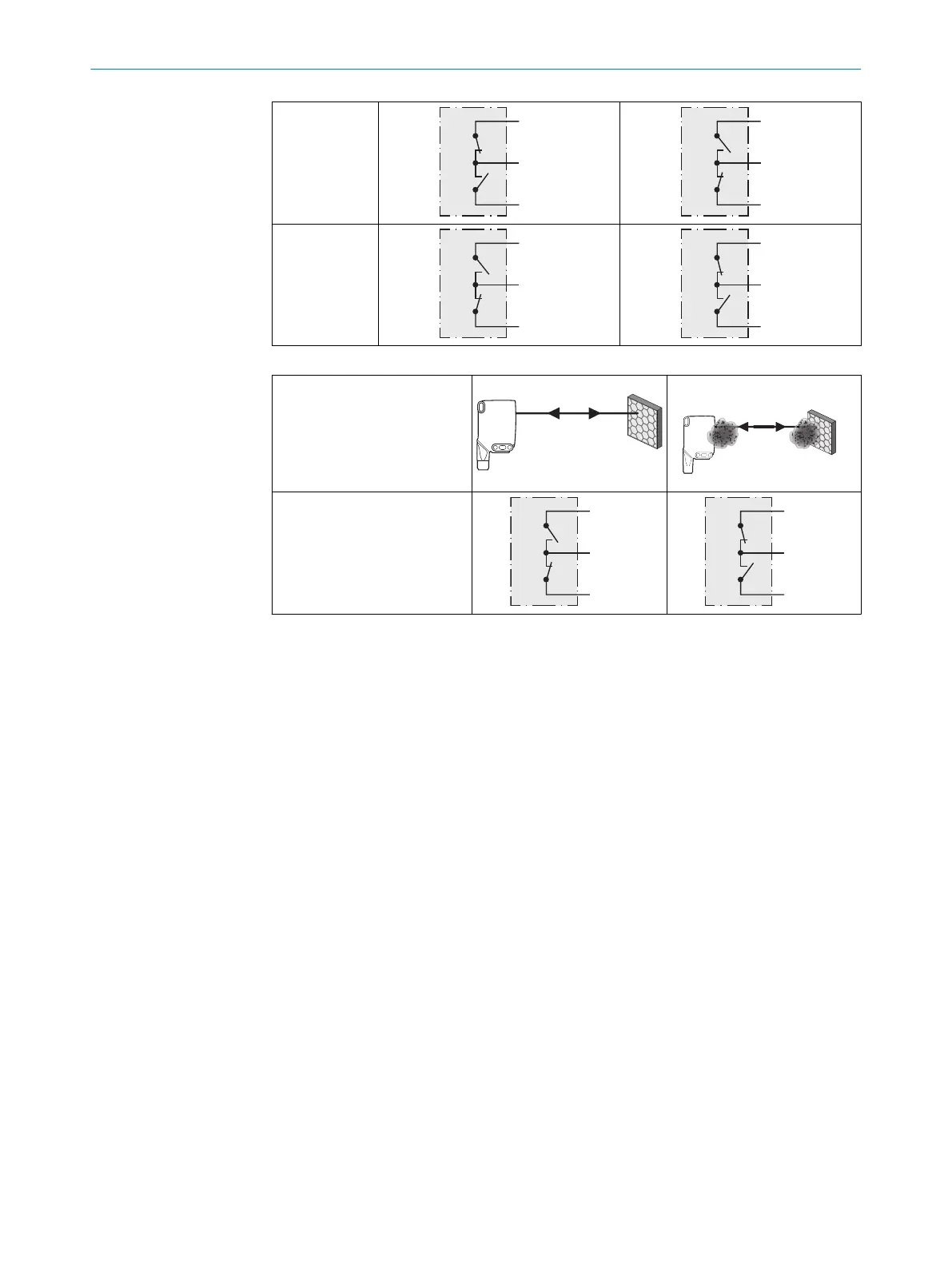

Table 4: Alarm
Alarm (≤ 100 mA)
+ (L+)
Alarm
‒ (M)
+ (L+)
Alarm
‒ (M)
7 Commissioning
7.1 Alignment
Align the sensor with a suitable reflector. Select the position so that the red emitted
light beam hits the center of the reflector. The frontlens of the sensor and the reflector
have to be cleaned before teaching.
The sensor must have a clear view of the reflector, with no object in the path of the
beam [ see figure 1]. You must ensure that the optical openings of the sensor and
reflector are completely clear.
7 COMMISSIONING
8
8022178.18JF 02.07.2020 | SICK
Subject to change without notice
