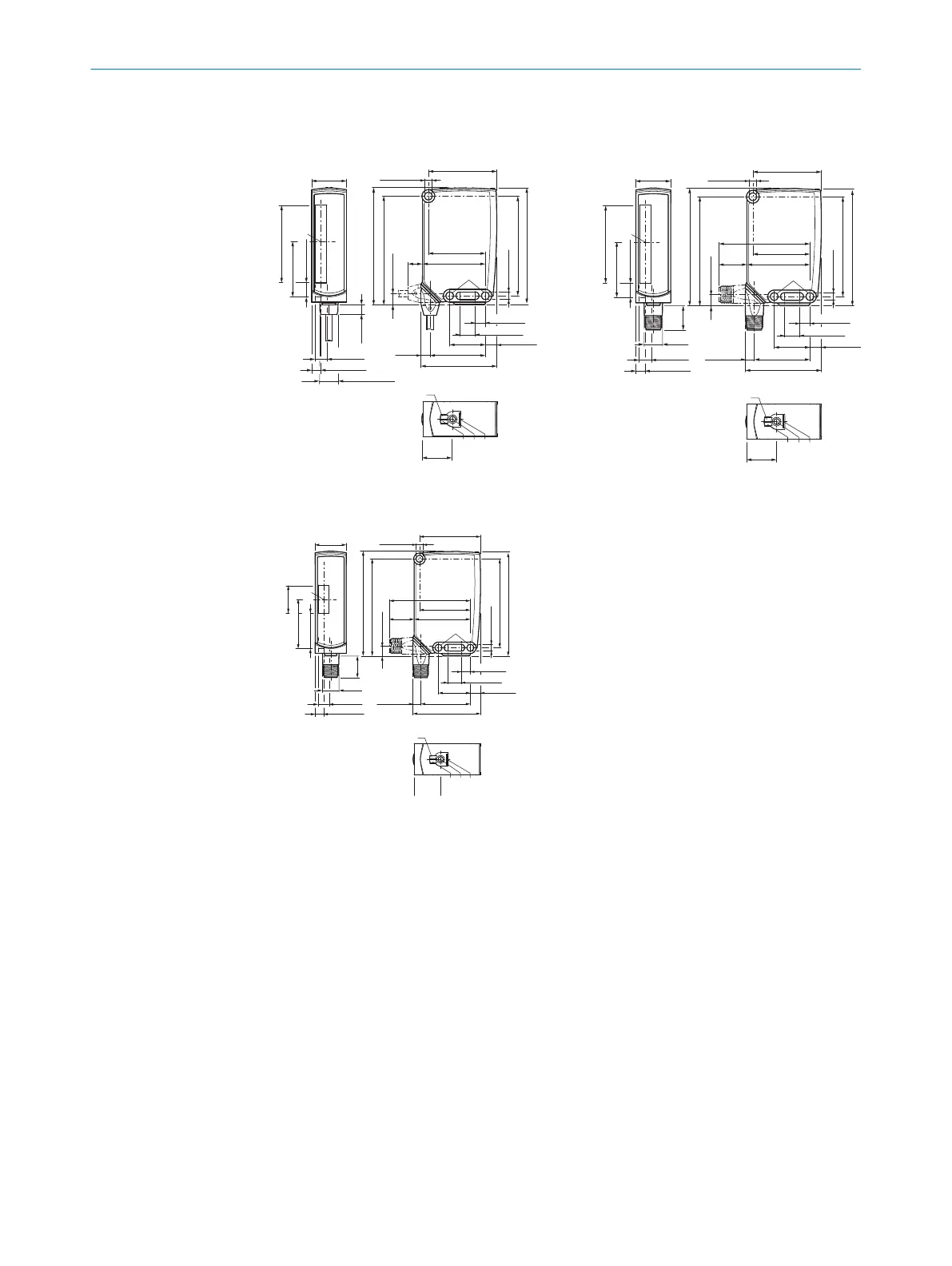

88.2 寸法図
表 64: 寸法図
1
24.6 (0.97)
8 (0.31)
6.9 (0.27)
Ø 12.8 (0.50)
55 (2.17)
37.9 (1.49)
9.4 (0.37)
7.2
(0.28)
3
2
2
7.1 (0.28)
8.1 (0.32)
10.8 (0.43)
25 (0.98)
38.9 (1.53)
6.4
(0.25)
48.1 (1.89)
40 (1.57)
44.2 (1.74)
10
(0.39)
Ø 5.2 (0.2)
82.2 (3.24)
70 (2.76)
Ø 5.2 (0.2)
8.1 (0.32)
76.5 (3.01)
82.5 (3.25)
53.4 (2.10)
7
465
21
(0.83)
図 118: ケーブル付き
RAY26P-xxxxx3、RAY26P-xxxxx5、
RAY26P-xxxxx9、RAY26P-xxxxxA
M12
1
3
2
2
7.1 (0.28)
8.1 (0.32)
10.8 (0.43)
25 (0.98)
38.9 (1.53)
6.3 (0.25)
48.1 (1.89)
40 (1.57)
44.2 (1.74)
19.7
(0.78)
Ø 5.2 (0.2)
24.6 (0.97)
8 (0.31)
6.9 (0.27)
82.2 (3.24)
70 (2.76)
Ø 5.2 (0.2)
17.1
(0.67)
7.9 (0.31)
76.5 (3.01)
82.5 (3.25)
55 (2.17)
37.9 (1.49)
9.4 (0.37)
53.3 (2.1)
63.9 (2.52)
21
(0.83)
7
465
図 119: コネクタ付き
RAY26P-xxxxx3、RAY26P-xxxxx5、
RAY26P-xxxxx9、RAY26P-xxxxxA
M12
1
3
2
2
7.1 (0.28)
8.1 (0.32)
10.8 (0.43)
25 (0.98)
38.9 (1.53)
6.3 (0.25)
48.1 (1.89)
40 (1.57)
44.2 (1.74)
19.7
(0.78)
Ø 5.2 (0.2)
24.6 (0.97)
8 (0.31)
6.9 (0.27)
82.2
(3.24)
70
(2.76)
Ø 5.2
(0.2)
17.1
(0.67)
7.9
(0.31)
76.5
(3.01)
82.5
(3.25)
20
(0.78)
37.9
(1.49)
36.9
(1.45)
53.3 (2.1)
63.9 (2.52)
21
(0.83)
7
5
6 4
図 120: RAY26P-xxxxx1
1
光軸中心
2
取り付け穴 Ø5.2 mm
3
接続
4
青色の BluePilot: 実行モードでの AutoAdapt インジケータ
5
ティーチインボタン
6
黄色の LED 表示: 受光状態
7
緑色 LED 表示: 供給電圧アクティブ
88 テクニカルデータ
144
8022178.18JF 02.07.2020 | SICK
