5.4.2 Assembling the basic device with C-mount lens and external ICL ring illumination unit
NOTE
The mounted external ICL ring lighting and the mounted optics protective hood for the
lens need to be briefly removed again later to set the image sharpness and aperture on
the lens.

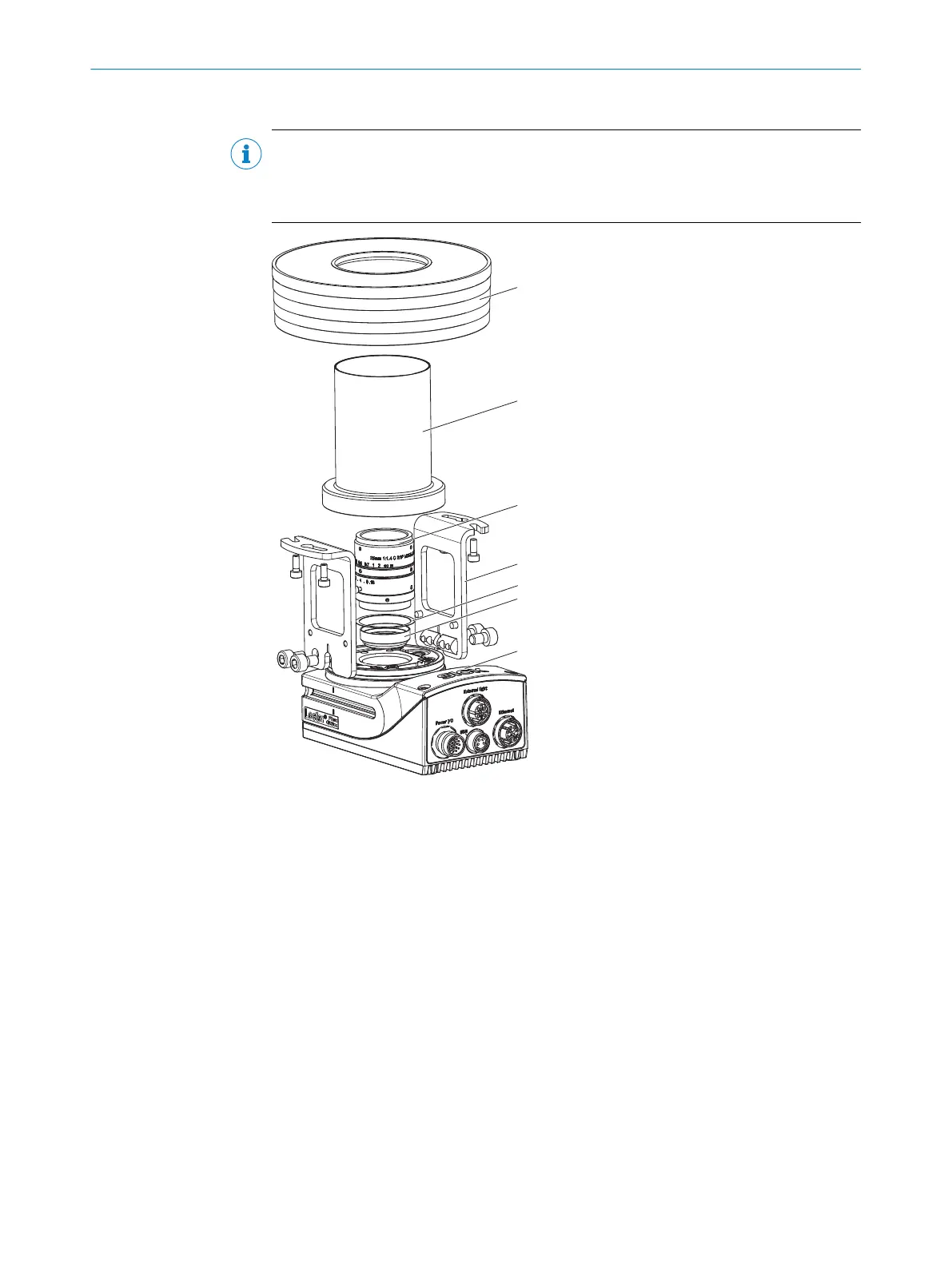

1
Camera housing
2
C-mount filter (optional)
3
Spacer disk (included with delivery of filter)
4
C-mount lens
5
Mounting bracket for the ICL ring lighting
6
Protective lens cover for ICL ring lighting
7
ICL ring lighting
1. Switch off the supply voltage to the device.
2. Place the camera housing on a nonslip base.
3. Remove the protective cap from the round light inlet.
4. Carefully insert the optional filter and spacer disk into the light inlet.
5. Carefully screw the C-mount lens into the C-mount thread until it engages. This will
also lock the optional filter in place at the same time.
6. Mount the two mounting brackets for the ICL ring lighting on the sides of the cam‐
era housing.
7. If the required adjustments to the lens are not carried out immediately, mount the
optics protective hood for the lens.
MOUNTING
5
8018071/16XD/2020-05-06 | SICK O P E R A T I N G I N S T R U C T I O N S | Lector63x Flex C-mount and S-mount
29
Subject to change without notice
