Device saves
the parameters 2
Result
|Teach
|Focus
L/A GbE
Funct
Light
O
Ready |Test
Press key 3 seconds 1
0%
100%
|Setup
1 Press the p function button for 3 seconds
2
Device permanently saves the parameters
✓
The existing configuration in the device is overwritten.
Alternatively, the device saves the parameters automatically if 5 minutes elapse without
a pushbutton being pressed, and it returns to read mode.
7.3 Initial commissioning
The device is configured for the particular application situation on site using the
SOPAS ET configuration software on a computer. The default factory settings of the
device are the starting point for this. The default parameter values (configuration data)
in the working memory of the device can be modified for optimization purposes. To do
so, the user creates an application-specific parameter set using the SOPAS ET configu‐
ration software, or edits the parameter set later as required. The user then loads the
current parameter set into the permanent parameter memory of the device.
Memory organization for parameter set
The following diagram shows the memory organization scheme for the internal and
external components involved:
Parameter set in the
main memory of the
device 8
Permanently saved
parameter set of the
device 5
Factory default setting of
the device 9
Device 2Optional: 1 Computer with SOPAS ET
Configuration Software 3
MicroSD memory card 4
Parameter memory module
CMC600 7
Volatile memory â
Opened project file
with current parameter
set of the device ß
Volatile memory â
Non-volatile memory á
Non-volatile memory á
Saved project file (*.sopas)
with archived parameter
set of the device à
Data base on e. g. hard drive
(non-volatile memory) ã
‒ and/or ‒ 6
Permanently saved
parameter set of the
device 5
Non-volatile memory á
Permanently saved
parameter set of the
device 5
Non-volatile memory á

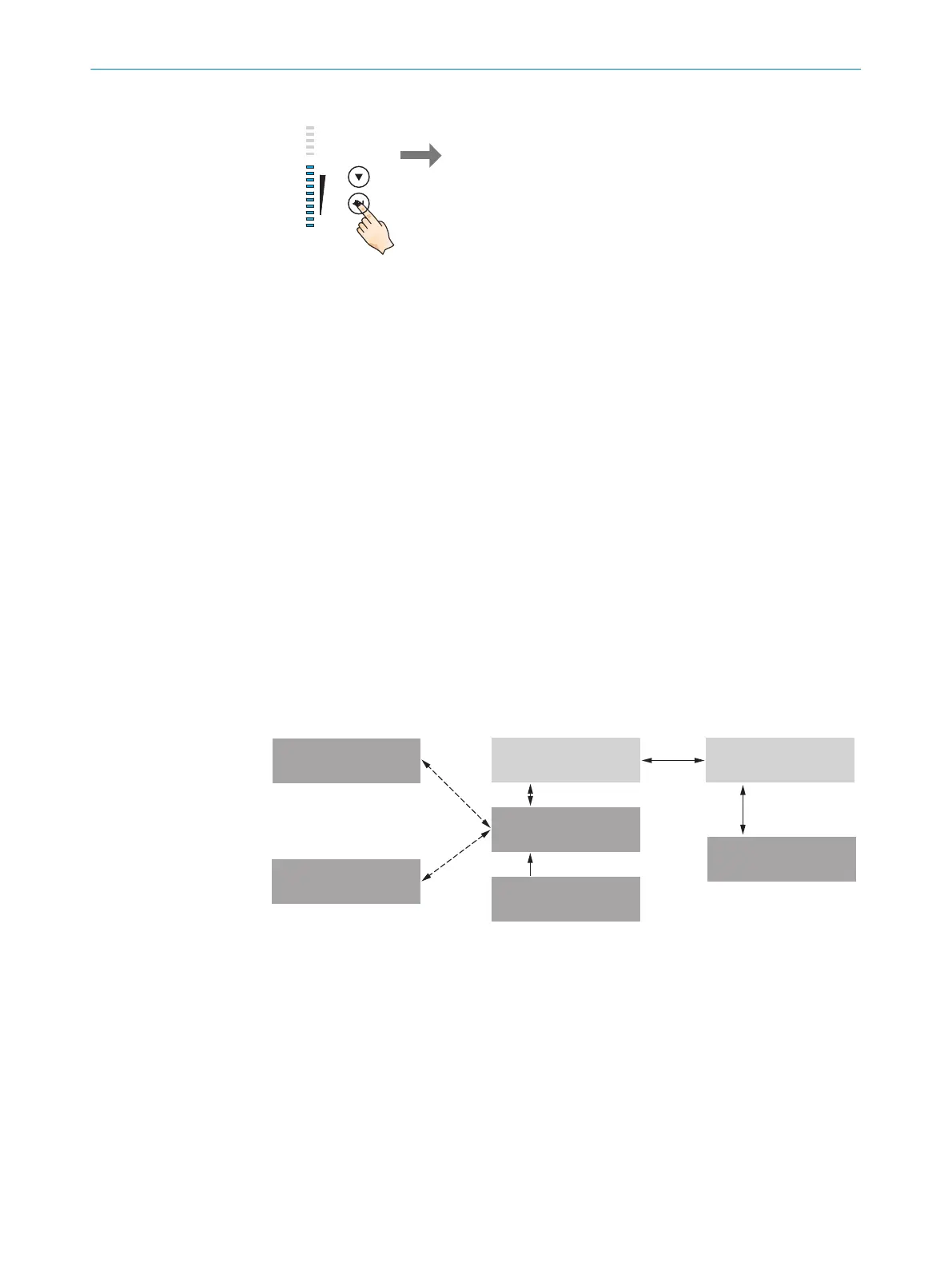

Figure 17: Configuration with SOPAS ET and saving the parameter set
1
Optional
2
Device
3
Computer with the SOPAS ET configuration software
4
MicroSD memory card
5
Permanently saved device parameter set
6
and/or
7
CMC600 parameter cloning module
8
Parameter set in the working memory of the device
9
Factory-set defaults for the device
ß
Opened project file with current device parameter set
COMMISSIONING 7
8018071/16XD/2020-05-06 | SICK O P E R A T I N G I N S T R U C T I O N S | Lector63x Flex C-mount and S-mount
57
Subject to change without notice
