FOV 3
1.3 Mpx image sensor 1 1.9 Mpx image sensor 2
FOV 3

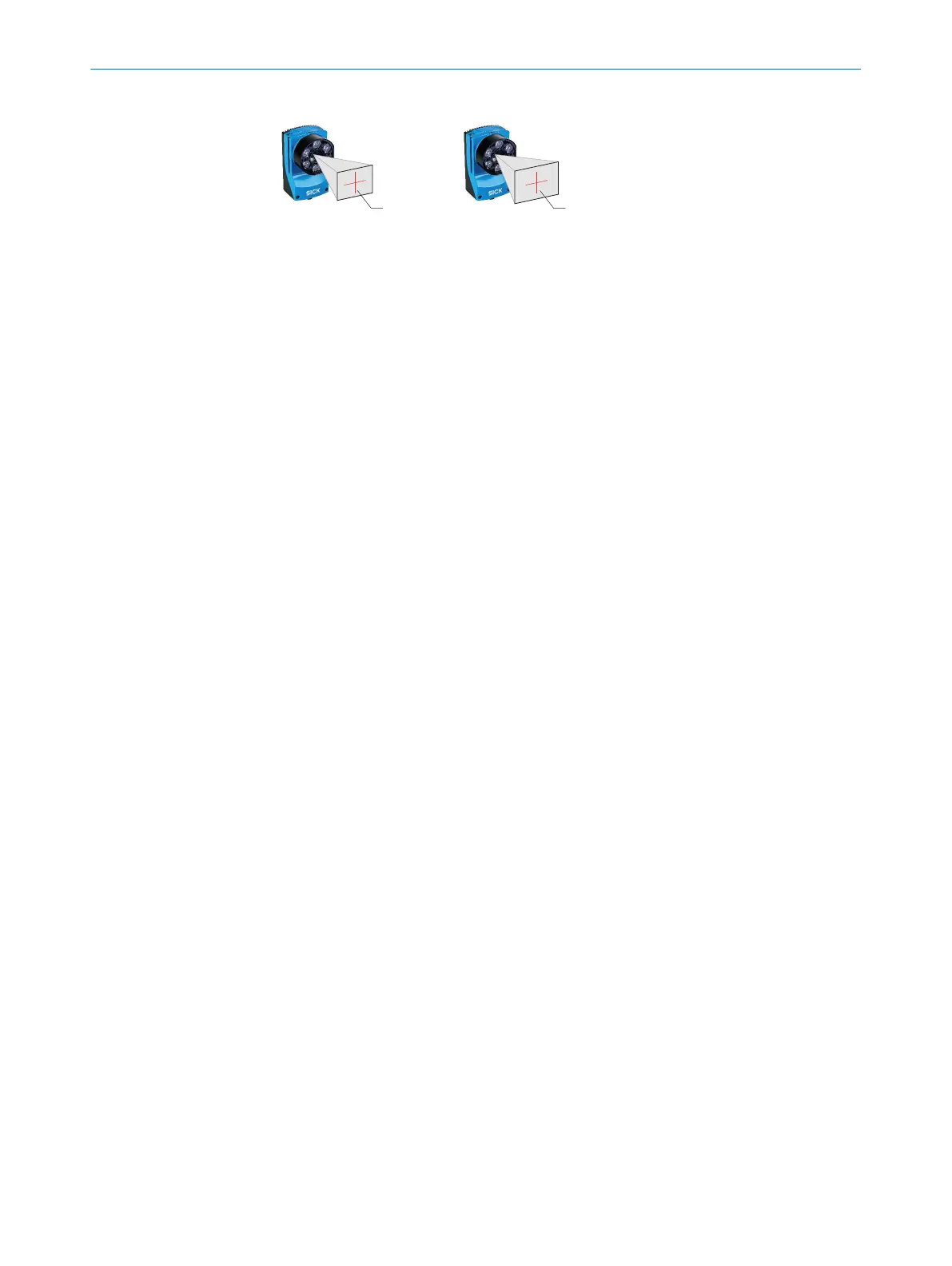

Figure 8: Resolution-dependent field of view geometries
1
Device with image sensor 1.3 Mpx
2
Device with image sensor 1.9 Mpx
3
Field of view
Align the device taking into consideration the field of view (see "Field of view diagrams",
page 33) and the application circumstances (see "Installation requirements", page 26).
Mounting the device
Perform one of the following steps:
•
Mount the device on a customer-supplied mounting system using at least 2 M5
screws of a suitable length. Screw the screws no more than 5 mm into the tapped
blind holes or sliding nuts of the device.
°
To do this, either use all 4 threaded mounting holes on the rear of the device
or, alternatively, use the two M5 sliding nuts in the lateral slots.
•
Attach the separately-ordered, optional SICK mounting system using the two slid‐
ing nuts on the device.
5 MOUNTING
38
O P E R A T I N G I N S T R U C T I O N S | Lector63x Flex C-mount and S-mount 8018071/16XD/2020-05-06 | SICK
Subject to change without notice
