13.4.9 Wiring digital outputs of the device in the CDM420-0006
Device = Lector63x = V2D63xx-xxxxYx (Y = A, B or S)
Device 1
CDM420-0006
Load (e.g. PLC) 4
C
5
.
.
.
E
Result D
13
GND
5
Shield
+24 V* (V
S
)
V
S
GND
V
out
Result A
GND
B
1
2 1
For inductive load: 6
5
2
3
3
1
7
2
6
5
4
8
13
14
17
15
9
10
12
16
11
8 7
110
15
6
11
5

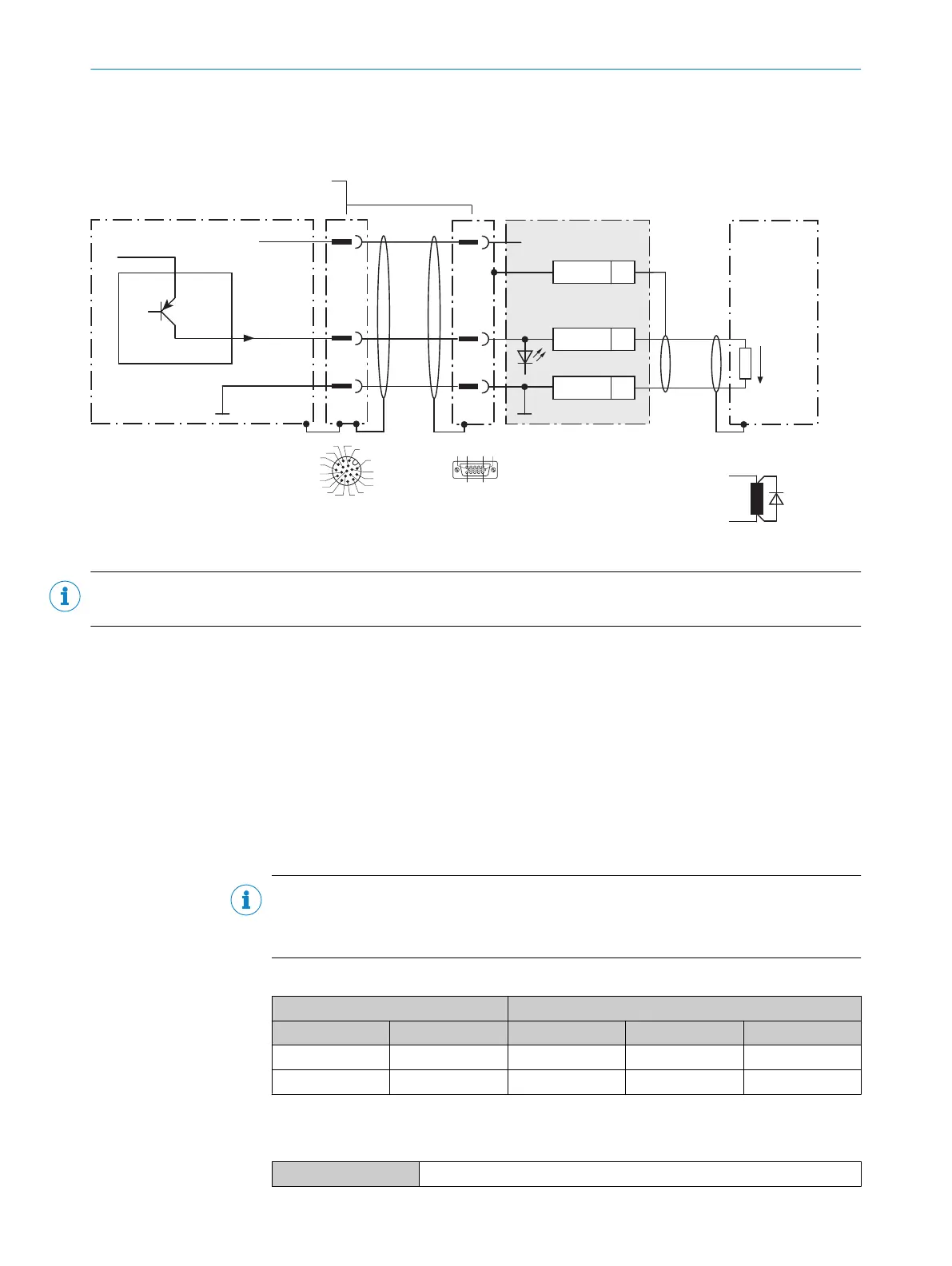

Figure 40: Wiring the digital outputs “Result 1” and “Result 2” of the device in the connection module CDM420-0006
NOTE
The two digital outputs “Result 3” and “Result 4” are not available in the CDM420-0006.
1
Device
2
Supply voltage V
S
3
Adapter cable (female connector, M12, 17-pin, A-coded/male connector, D-Sub-HD, 15-pin)
4
Load (e.g. PLC)
5
Output voltage V
out
6
With inductive load: see note
7
Connection module: female connector, D-Sub-HD, 15-pin
8
Device: male connector, M12, 17-pin, A-coded
Inductive load
NOTE
Provide an arc-suppression switch at the digital output if inductive load is present.
b
Attach a freewheeling diode directly to the load for this purpose.
Table 38: Assignment of placeholders to the digital outputs
Device CDM420-0006
Output A Pin B Pin C Signal D Terminal E
Result 1 13 12 Result 1 14
Result 2 14 13 Result 2 15
Characteristic data of the digital outputs
Table 39: Characteristic data of "Result 1" and "Result 2" digital outputs
Type Switching
13 ANNEX
96
O P E R A T I N G I N S T R U C T I O N S | Lector63x Flex C-mount and S-mount 8018071/16XD/2020-05-06 | SICK
Subject to change without notice
