Description of the motors
1.4 Rating plate
1FT7 Synchronous Motors
Configuration Manual, (PFT7S) 01/2009, 6SN1197-0AD13-0BP2
19
1.4 Rating plate
The rating plate contains the technical data relevant to the motor. A 2nd rating plate is
enclosed with the motor when it is supplied.
PNJ
a0RW
)7$.1+
1R<)8
0
(QFRGHU,65
%UDNH9'&BB
7K&O))
,
51
,
,
8
Q
Q
,3
(1
0DGHLQ*HUPDQ\
&
1P
0
1
,1
PD[
1
1
1P
$
$
9
PLQ
PLQ

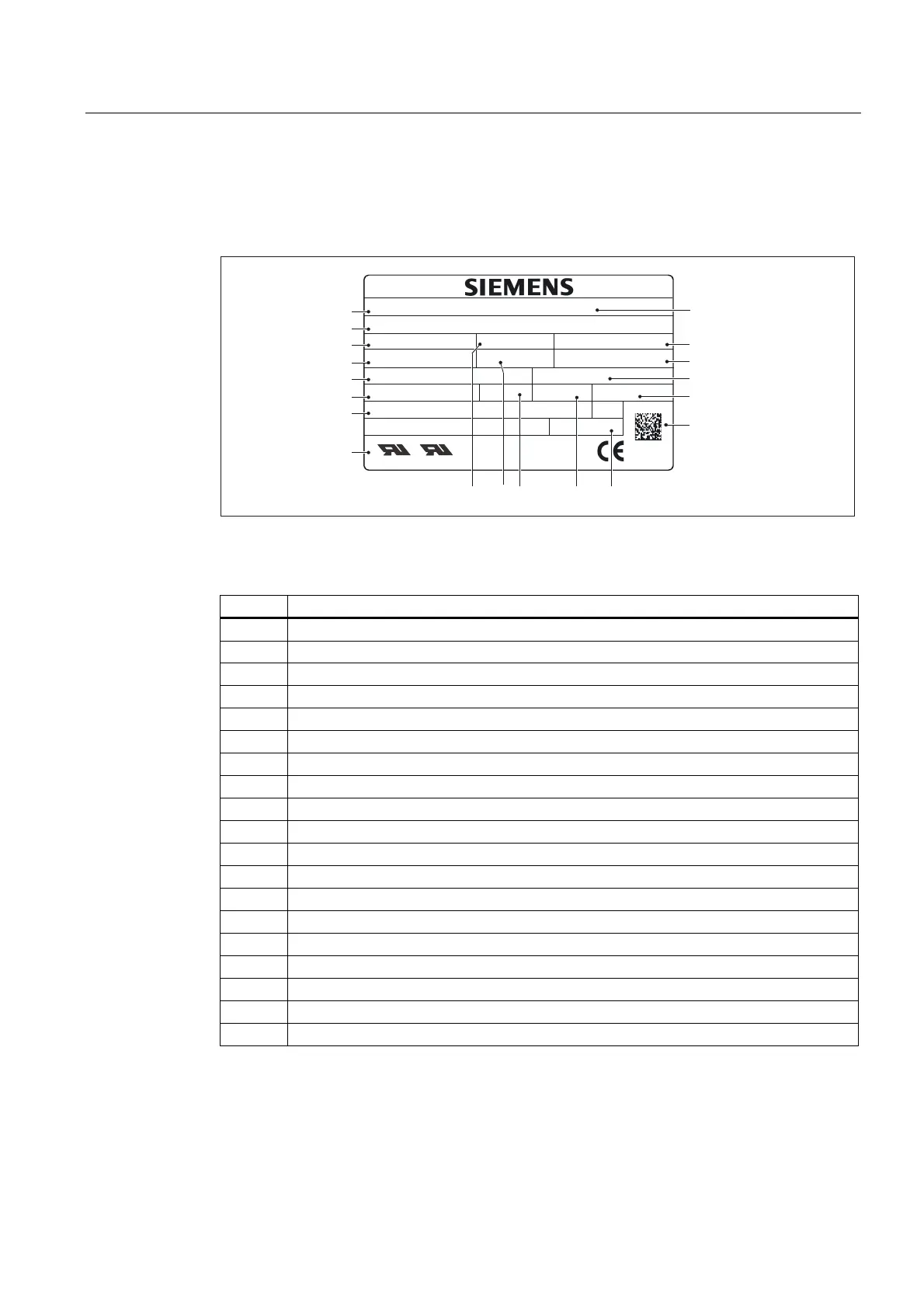

Figure 1-4 Schematic layout of rating plate
Table 1- 2 Description of the rating plate data
Position Description / Technical data
1 Motor type: Synchronous motors
2 Ident. No., production number
3 Stall torque M
0
[Nm]
4 Rated torque M
N
[Nm]
5 Temperature class
6 Code, encoder type
7 Holding brake data: Typical, voltage, power consumption
8 Standards and regulations
9 Stall current I
O
[A]
10 Rated current I
N
[A]
11 Encoder version
12 Motor version
13 Motor weight m [kg]
14 Bar code
15 Degree of protection
16 Induced voltage V
IN
[V]
17 Rated speed n
N
[rpm]
18 Maximum speed n
max
[rpm]
19 SIEMENS motor type/designation
