Connection system
6.3 Rotating the connector at the motor
1FT7 Synchronous Motors
Configuration Manual, (PFT7S) 01/2009, 6SN1197-0AD13-0BP2
229
6.3 Rotating the connector at the motor
Power connector, signal connector and DRIVE-CLiQ can, to some extent, be rotated.
NOTICE
• It is not permissible that the specified rotation range is exceeded.
• In order to guarantee the degree of protection, max. 10 revolutions are permissible.
• Do not exceed max. torques when rotating.
• Connectors should be rotated using the matching mating connector located on the
connector thread.
• Connecting cables must be secured against tension and bending.
• The motor connectors must then be secured so that they cannot rotate.
• It is not permissible to subject the connector to continuous force.
r
r
r
r
r
r
r
r
r
r
)7)76L]H
URWDWLQJDQJOHRIWKHSOXJ
)76L]H
URWDWLQJDQJOHRIWKHSOXJ
)7)7)76L]H
URWDWLQJDQJOHRIWKHSOXJ

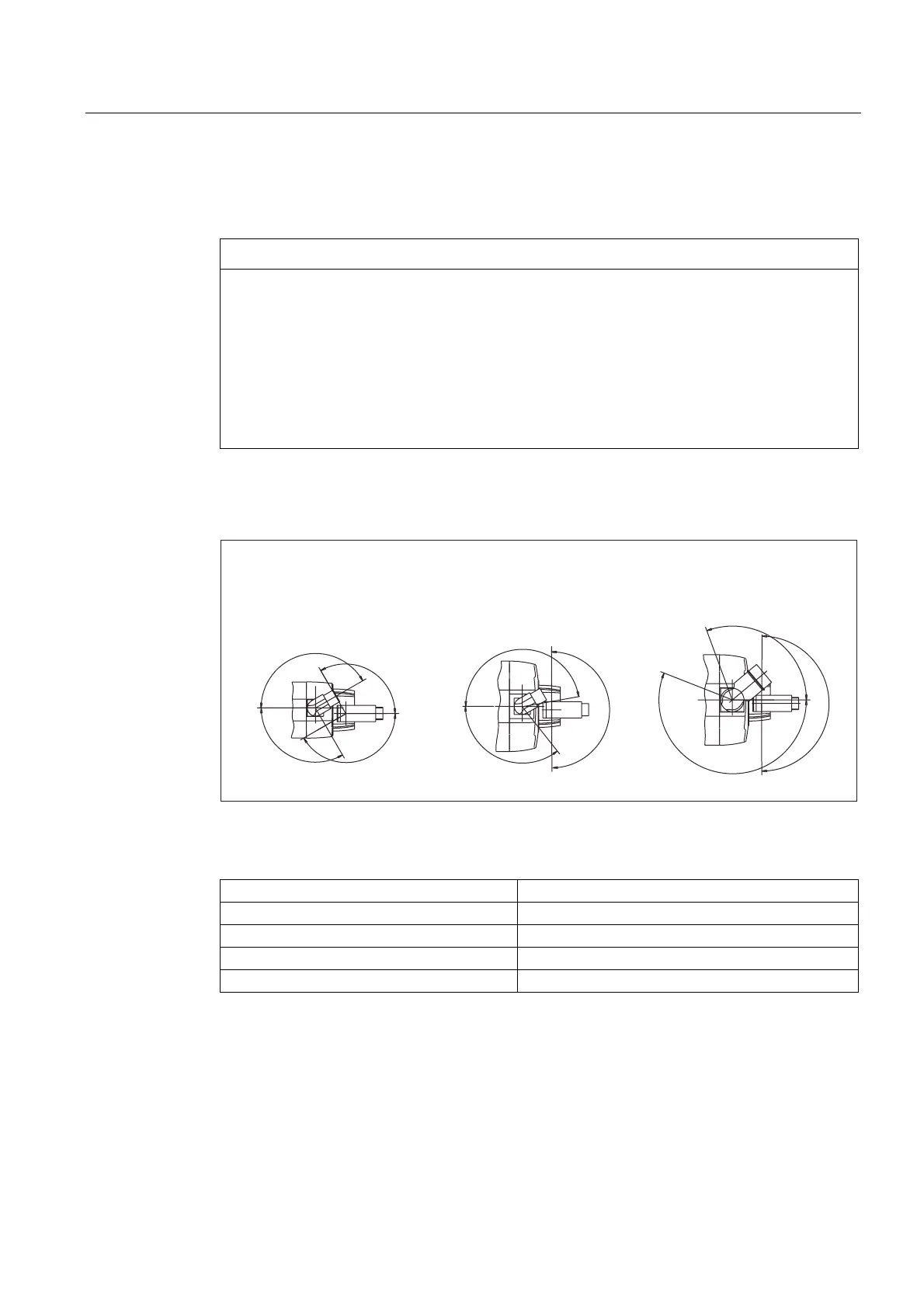

Figure 6-5 Connector direction of rotation and angle of rotation
Table 6- 7 Torques when rotating
Connector Max. torque when rotating [Nm]
Power connector, size 1 8
Power connector, size 1.5 15
Signal connector 8
DRIVE-CLiQ (connector) 8
