Mechanical properties of the motors
3.7 Smooth running, concentricity and axial eccentricity
1FT7 Synchronous Motors
68 Configuration Manual, (PFT7S) 01/2009, 6SN1197-0AD13-0BP2
3.7 Smooth running, concentricity and axial eccentricity
The shaft and flange accuracies are checked according to DIN 42955, IEC 60072-1. Any
specifications deviating from these values are stated on the dimension drawings.
Standard: Tolerance N
Option: Tolerance R
'LDOJDXJH
0RWRUVKDIW
0RWRU
/
/

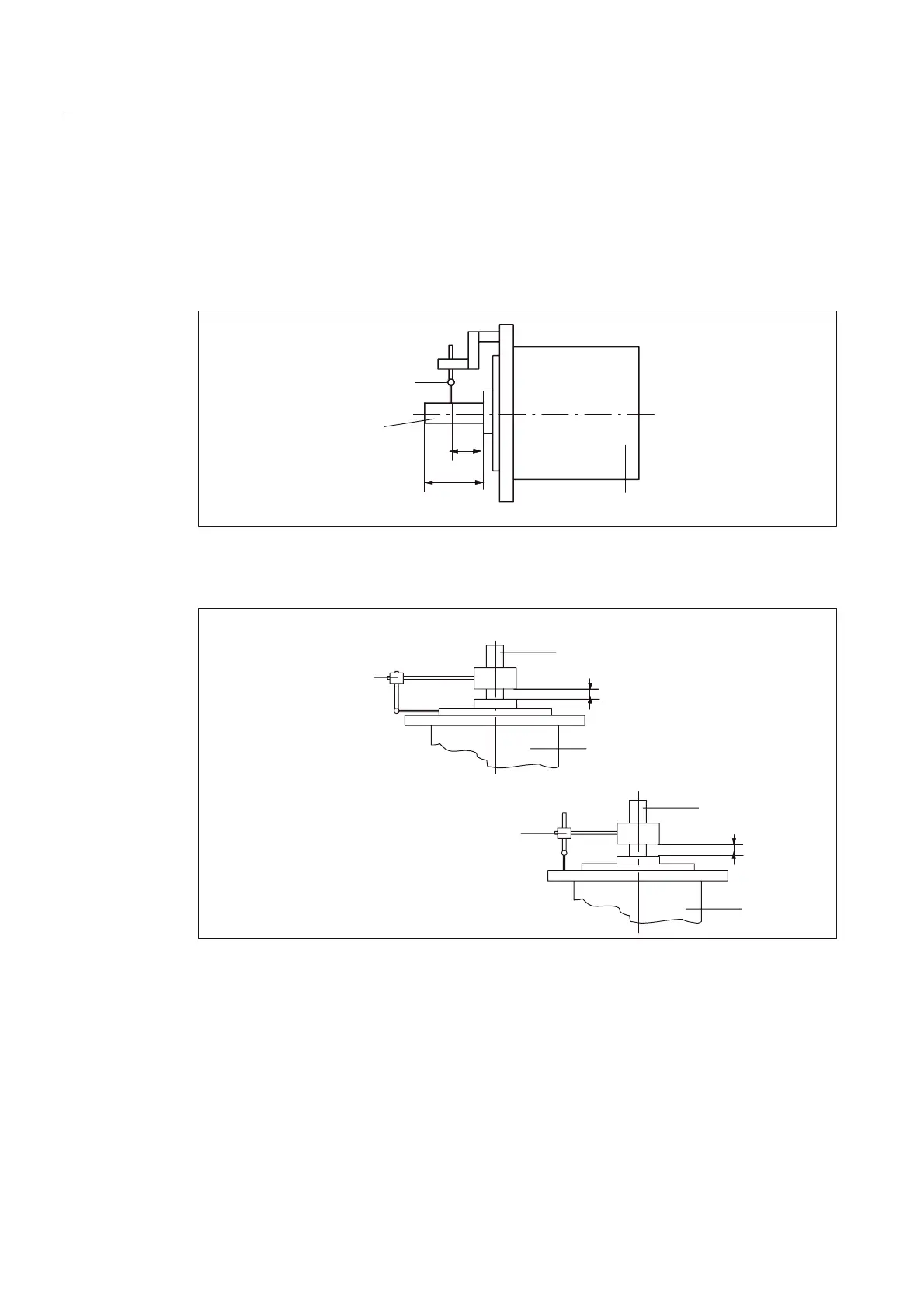

Figure 3-10 Checking the radial eccentricity
&KHFN&RQFHQWULFLW\
'LDOJDXJH
&KHFN$[LDOHFFHQWULFLW\
0RWRUVKDIW
PP
0RWRU
'LDOJDXJH
PP
0RWRU
0RWRUVKDIW
Figure 3-11 Checking the concentricity and axial eccentricity
