Description
2.3 Scope of delivery
A5E00215731A AD
16 Siemens AG Operating Instructions 2.02 1PL618
2.3 Scope of delivery
Checking the scope of delivery for completeness
The drive systems are put together on an individual basis. When you take receipt of the
delivery, please check immediately whether the scope of the delivery matches up with the
accompanying documents. Siemens will not accept any claims relating to items missing from
the delivery and that are submitted at a later date.
● Report any apparent transport damage to the delivery agent immediately.
● Report any apparent defects/missing components to the appropriate SIEMENS office
immediately.
These Operating Instructions are included in the scope of delivery and must be kept in a
location where they can be easily accessed.
The rating plate enclosed as a loose item with the delivery ensures that the motor data can
also be affixed on or near the machine or system.
[ID: 303.02]
2.4 Rating plate
The motor rating plate shows the technical specifications applicable to the supplied motor.
a
0RW
*HZ:7 NJ
3/+'$& 1R17
,3,0
%
7K&O
)
9
<
<
<
$
N: FRV
+] PLQ
(1(&
PLQ
PD[
(1&2'(5B+BB65
.7<
'(:
0$'(,1*(50$1<'1íUQEHUJ
0$'(,1*(50$1<'1íUQEHUJ
SIEMENS
ແ
໎
ໍ
໌
໋
໊
້
່
ໆ
ໄ
ໂ
ໃ

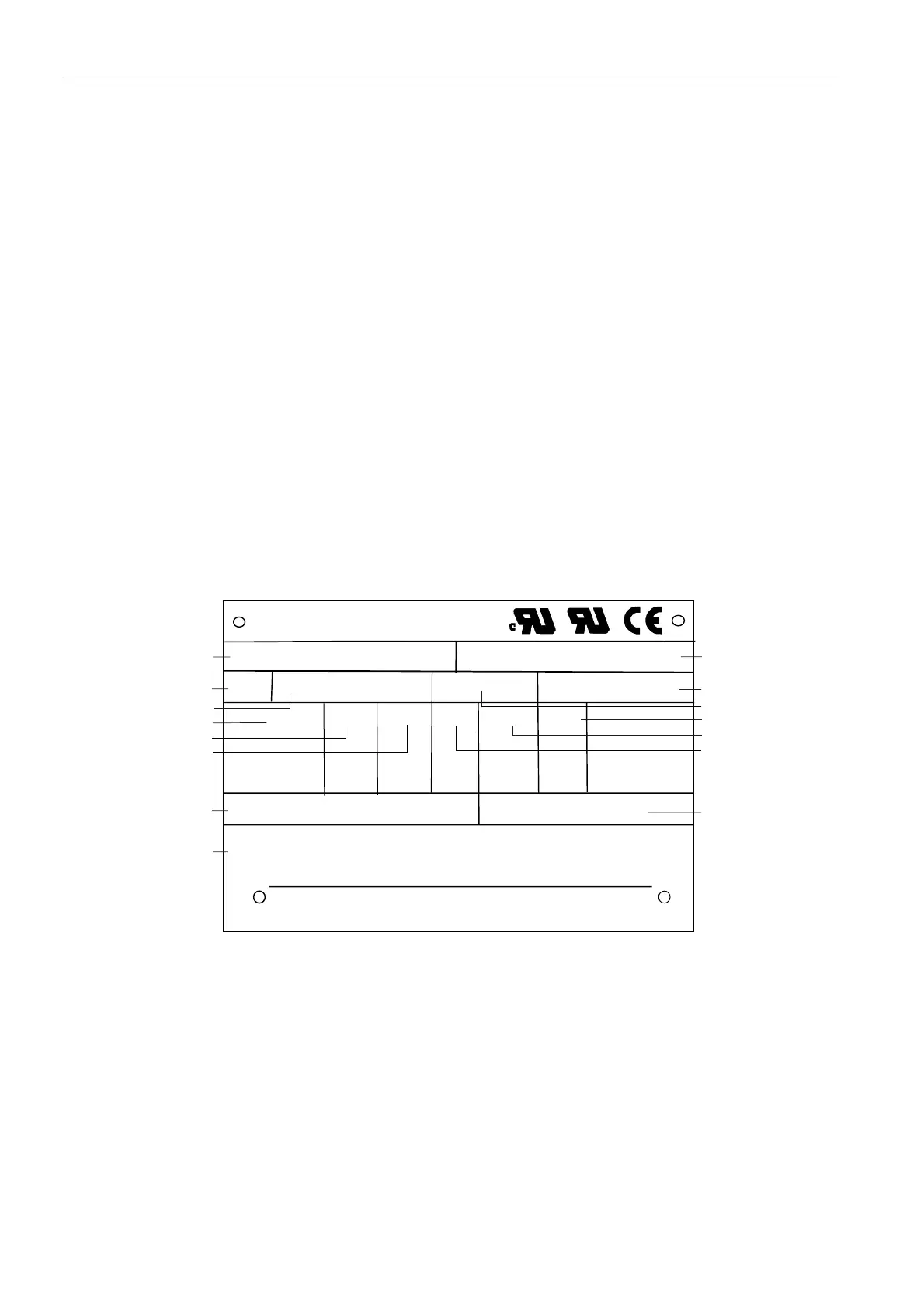

Figure 2-1 Example - 1PL6 motor rating plate
Table 2-2 Motor rating plate – technical specifications
1 Motor type: Three-phase induction motor
2 Type of construction
3 Degree of protection
4 Rated voltage [V] and winding connection
5 Rated current [A]
