Transport, assembly, and connection
3.3 Electrical connection
A5E00215731A AD
36 Siemens AG Operating Instructions 2.02 1PL618
NOTICE
Do not turn the Sensor Module with a pipe wrench or hammer or any similar tool as this
could damage the Sensor Module.
Turn the Sensor Module by hand.
Typical twisting moment: 4 ... 8 Nm
¡
ແ

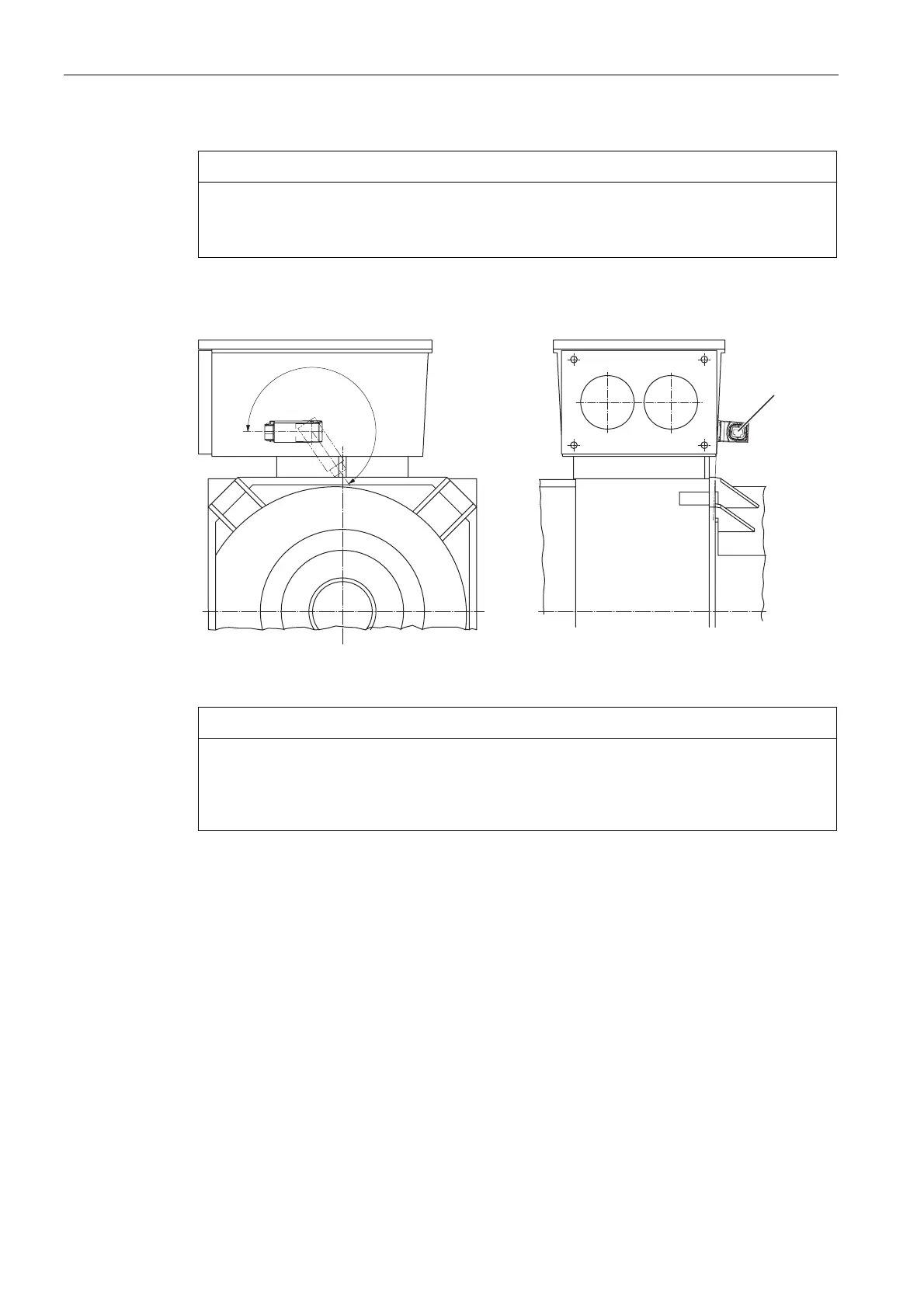

Figure 3-8 Sensor Module ① mounted on terminal box
NOTICE
Changing the cable outlet direction by any improper means will cause damage to the
connecting cables.
The permissible rotation range must not be exceeded. A maximum of ten changes to the
rotation angle of the Sensor Module are permissible within the rotation range.
[ID 964]
3.3.7 Connecting the temperature sensor
Connection
Connect the wires of the temperature sensor to the speed sensor connector with the aid of
connecting leads (see section entitled "Connecting the speed sensor").
