Transport, assembly, and connection
3.3 Electrical connection
A5E00215731A AD
Siemens AG Operating Instructions 2.02 1PL618
35
Electrical connection of the speed sensor
ཱ
ི

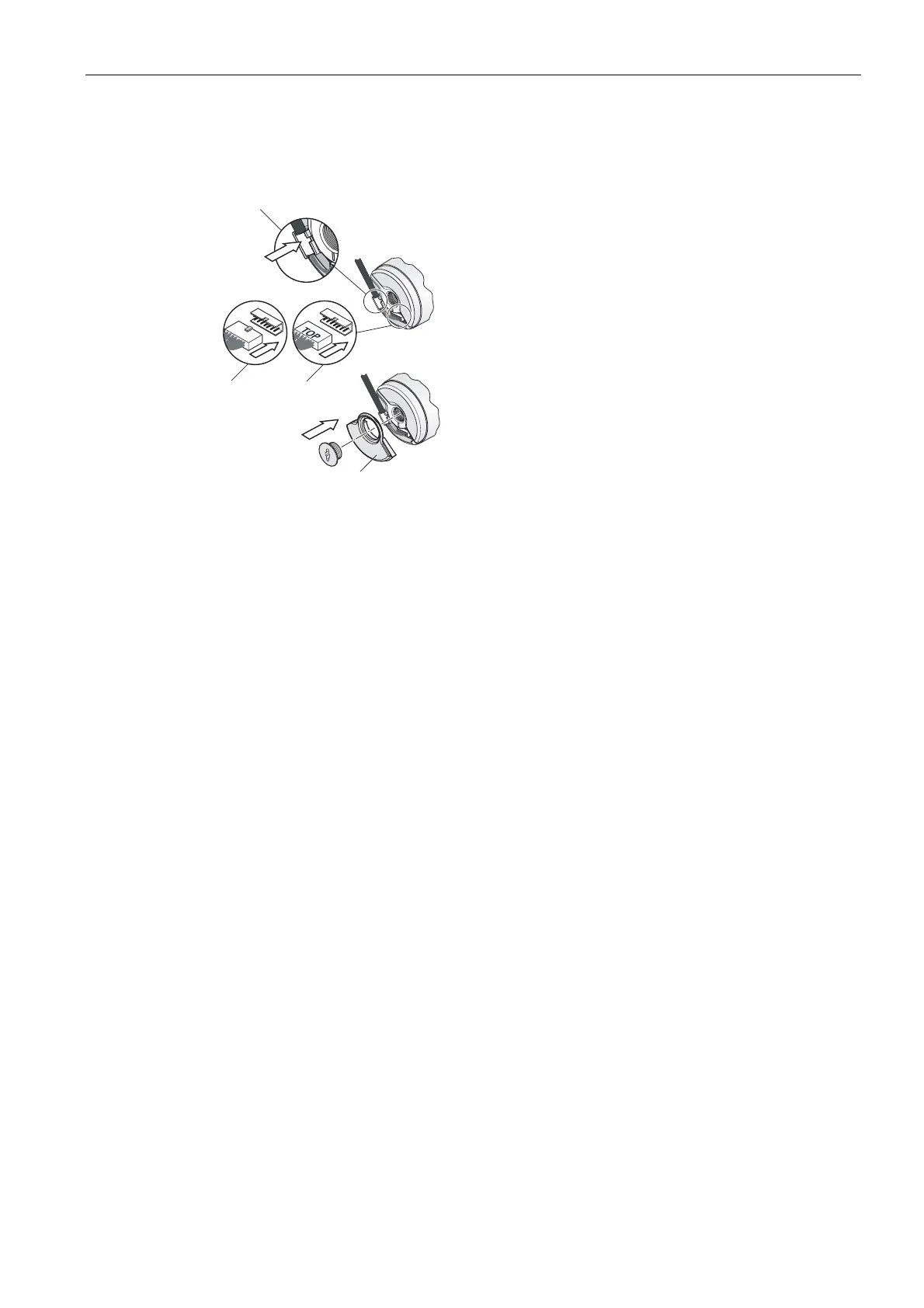

Figure 3-7 Electrical connection of the speed sensor
① Insert the connector into the socket.
② Press the cable into the holder provided for it.
③ Screw on the sensor cover. Take care that you do not catch the cable as you screw it
in.
[ID: 977.00]
3.3.6 Connecting the Sensor Module
Signal connection
The signal connection between the motor and the converter is via the DRIVE-CLiQ cable
MOTION-CONNECT. Always use prefabricated cables from SIEMENS. Thes cables reduce
the mounting/installation time and costs and increase operational reliability.
Push the connector on the DRIVE-CLiQ cable into the socket until the catch spring latches
into place. Pay attention to the coding of the connector.
Cable outlet directions
The Sensor Module is mounted on the motor terminal box. The Sensor Module can be
rotated through approximately 235°. You can change the cable outlet directions by rotating
the Sensor Module, as shown in the diagram below.
