2.5 Layout
A5E00215731A AD
Siemens AG Operating Instructions 2.02 1PL618
19
Basic construction type acc.
to rating plate
Type Other applications in construction type
IM B3 1PL6 184…1PL6 186 IM B6, IM B7, IM B8, IM V5, IM V6
IM B35 (1) 1PL6 184…1PL6 186 IM V36, IM V15
The maximum permissible speed for flange-mounted construction types (IM B5, IM V1, IM
V3) is restricted to 3000 rpm (see also "Planning Guide").
Note
For additional instructions and restrictions for construction types that do not correspond to
the basic type, please refer to the "Planning Guide".
Additional hoisting points for different construction types (option)
Additional hoisting points are provided for those construction types that differ from the basic
construction types IM B3 and IM B35 (see Fig.).
ແ
ແ

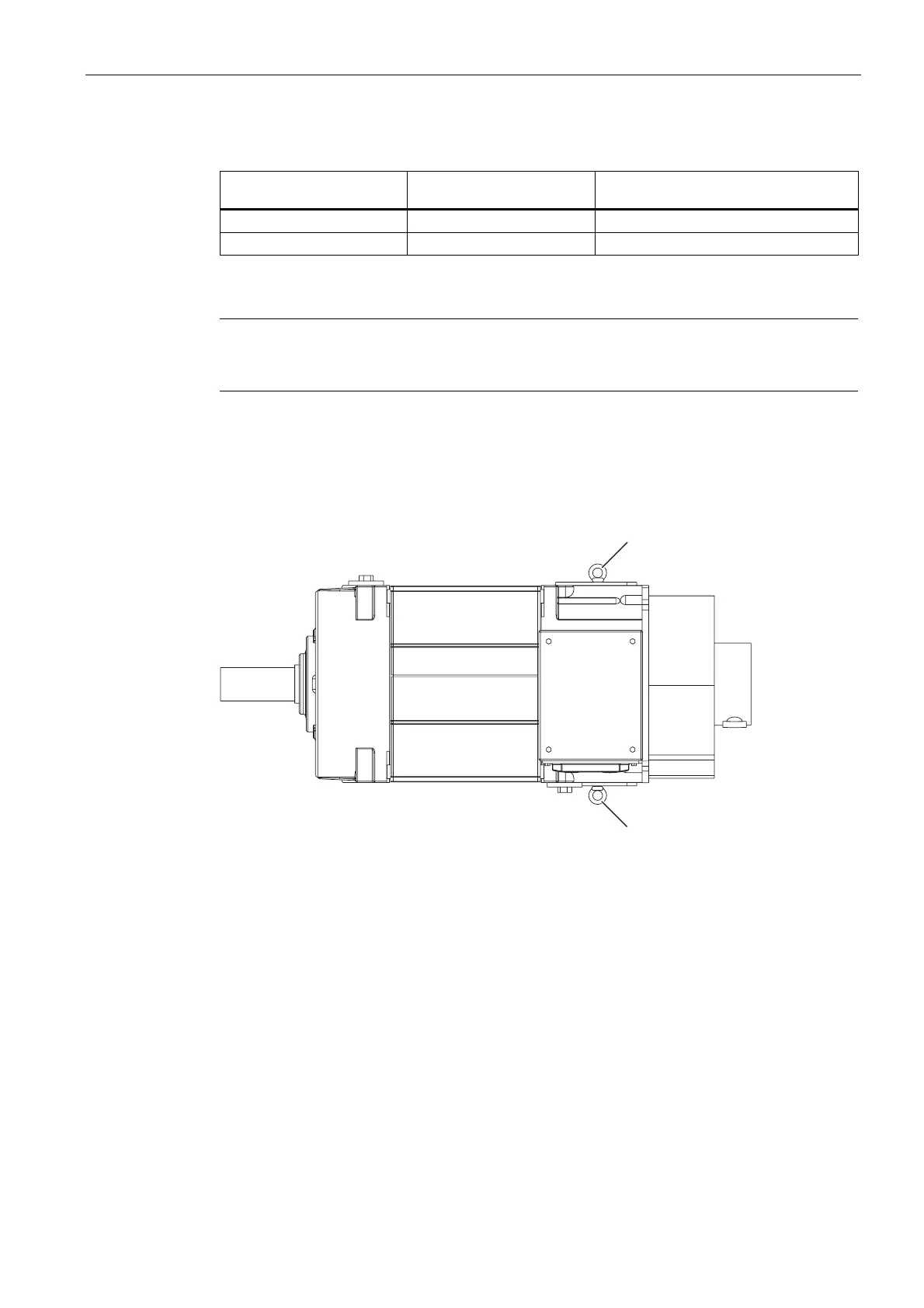

Figure 2-3 View from above onto construction type IM B3
① Hoisting points
[ID: 318.01]
2.5.4 Regulations
Overview
The motors comply with the following regulations under IEC EN 60034:
