Expert Functions
5.2 Extending a PROFIdrive message frame
Connection of the SINAMICS S120 to the Technology CPU
144 Product Information, 09/2011, A5E00480378-04

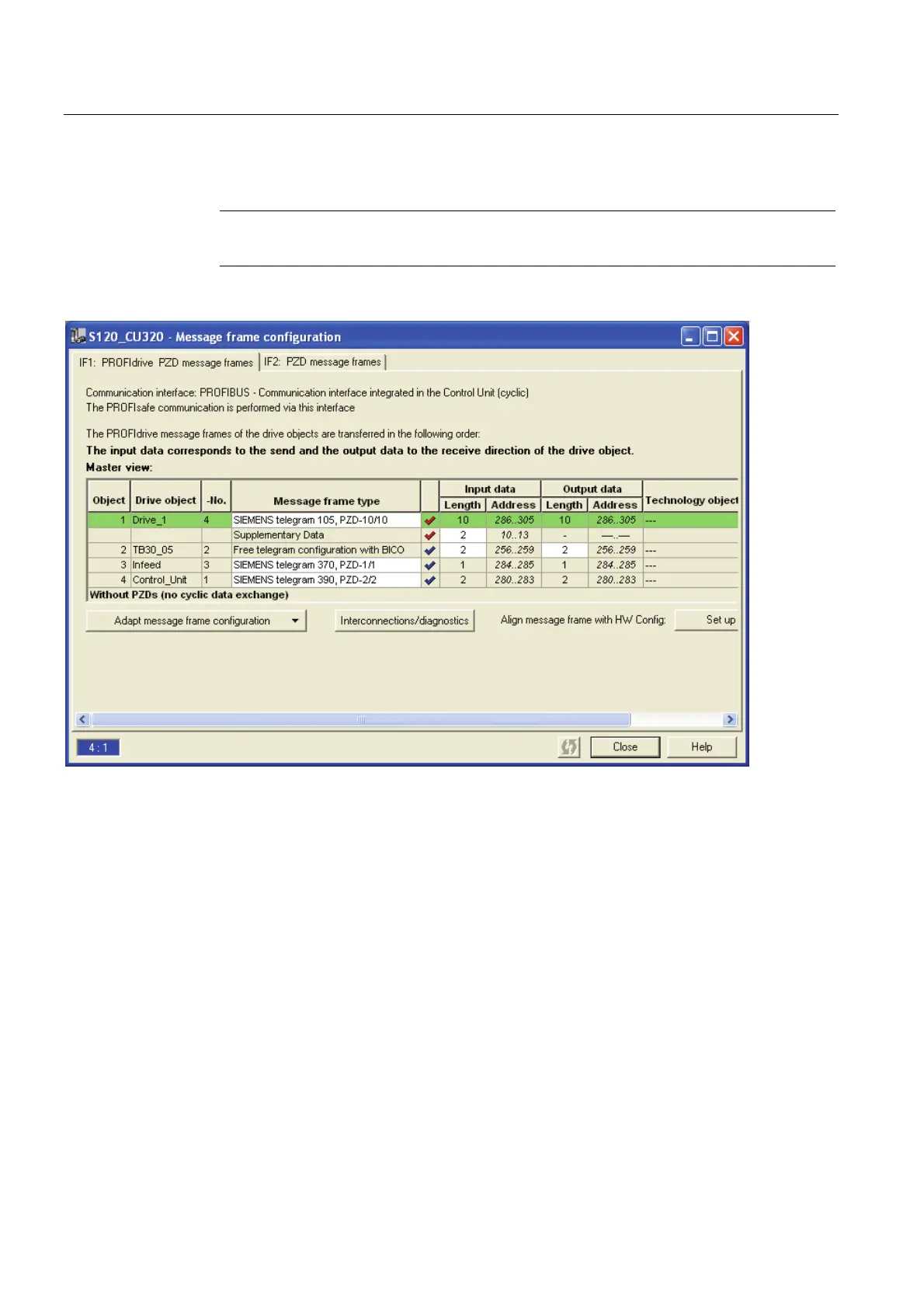

13. Open the "Message frame configuration" in the S7T Config project navigator.
Note
If the window was still open, you need to close and reopen it.
14. Check whether the address setting from HW Config was accepted.
15. Click "Align message frame with HW Config: Set up addresses" to complete the message
frame extension.
