Connection of the SINAMICS S120 to the Technology CPU
Product Information, 09/2011, A5E00480378-04
15
Commissioning
3
3.1 Commissioning procedure
Operational sequence
The commissioning procedure is divided into two parts:
1. Create a STEP 7 project and make the settings of the technology CPU for the connected
hardware using the HW Config and S7T Config programs. Special attention is placed on
the parameterizations that must be performed both in the technology CPU and in the
SINAMICS S120.
2. Parameterize SINAMICS S120, create drives and axes. The base device commissioning
required for the connection to the technology CPU is also described here.
The following sections describe these settings in detail, both for the technology CPU as well
as the SINAMICS S120.
3.2 Connecting hardware components
3.2.1 PROFIBUS interconnection
Introduction

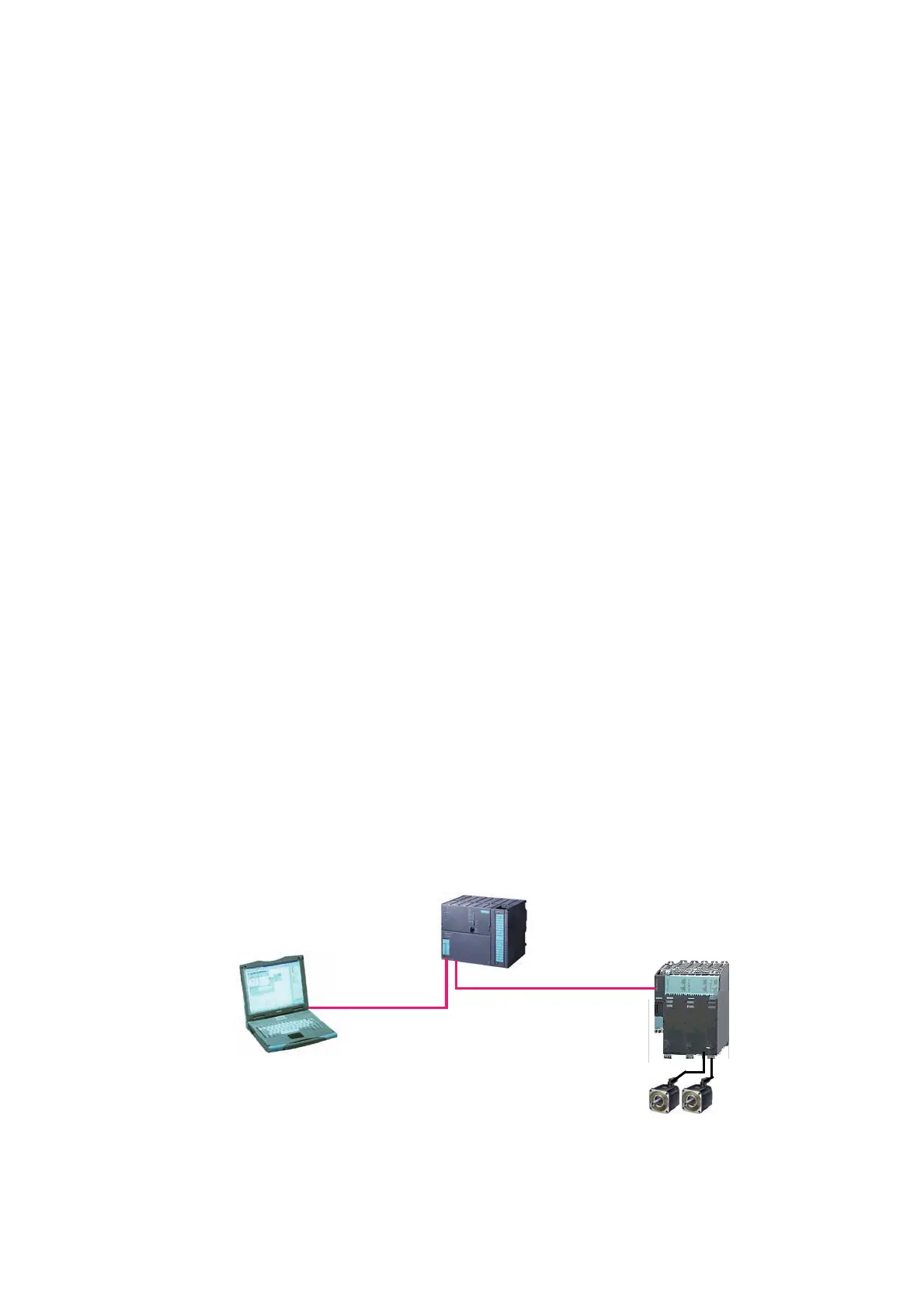

Connect the programming device to the PROFIBUS X1 terminal and the
SINAMICS S120 drive system to the PROFIBUS DP (DRIVE) X3 terminal
of the Technology CPU.
352),%86
'3'5,9(
6,1$0,&66
; ;
3URJUDPPLQJGHYLFH
7HFKQRORJ\&38
