Expert Functions
5.6 Measuring Function
Connection of the SINAMICS S120 to the Technology CPU
160 Product Information, 09/2011, A5E00480378-04
Basic procedure
To integrate a TM17 terminal module in the SINAMICS topology, follow these steps:
1. Connect the power supply and the measuring line of the measuring input to the
TM17 terminal module. For our example, wire the measuring input to the DI/O 0 input.
2. To create a TM17, switch to the S120_CU320 > Input/output components
folder in the S7T Config project navigator.
3. Click "Insert input/output components".

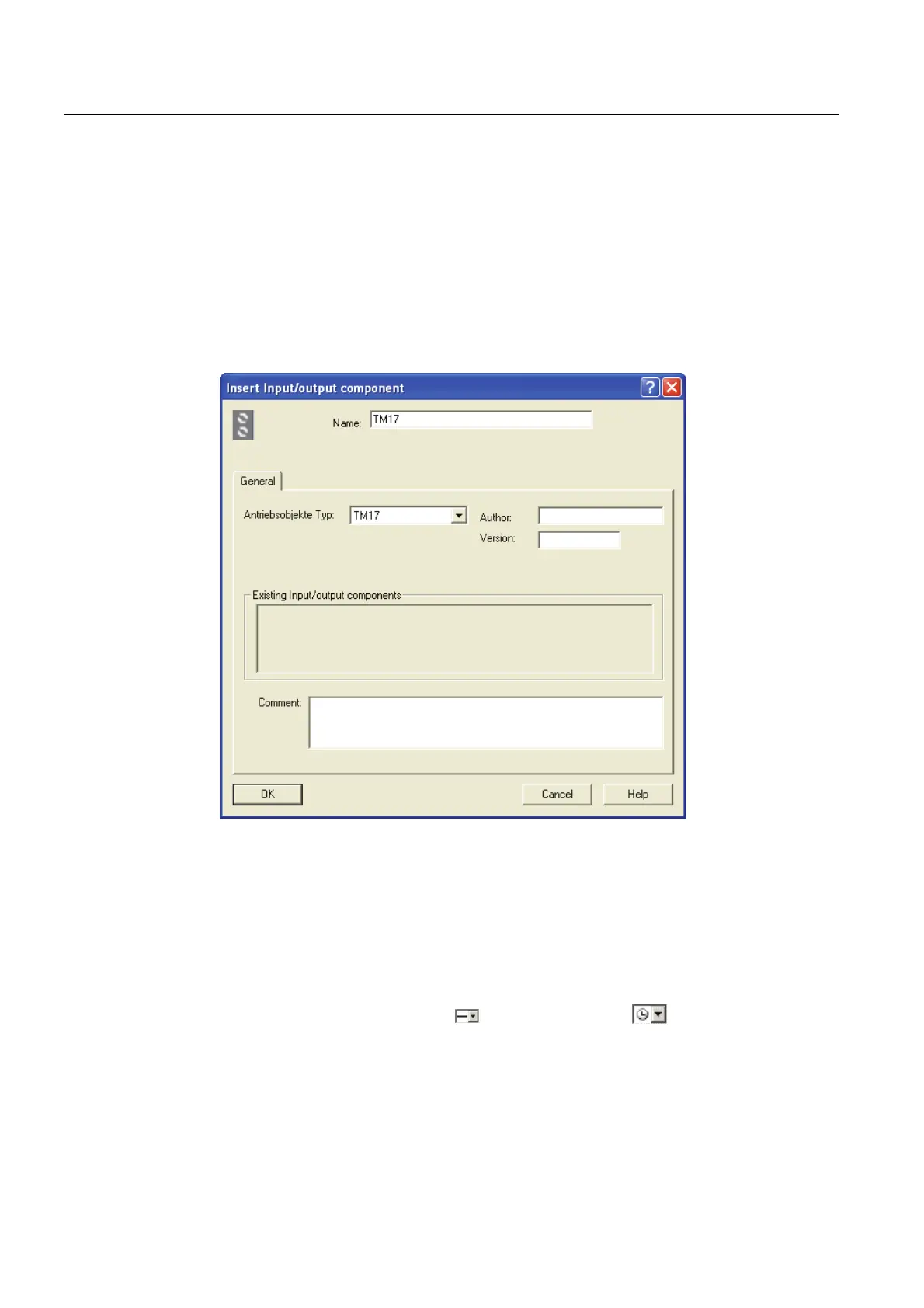

The "Insert input/output components" dialog will be displayed.
4. Select the TM17 drive type from the selection list.
5. Enter "TM17" in the "Name" field for this example.
6. Click the "OK" button to accept the settings.
7. To parameterize the TM17 terminal module, switch to the S120_CU320 > Input/output
components > TM17 folder in the S7T Config project navigator.
8. Click "Inputs/outputs".
9. Enter the "Measuring" function in the "Function" column for the DI/O 0 input.
Accept the "Single measurement"
and "Without enable" default settings in the
"Mode" and "Enable" columns.
