Expert Functions
5.6 Measuring Function
Connection of the SINAMICS S120 to the Technology CPU
162 Product Information, 09/2011, A5E00480378-04

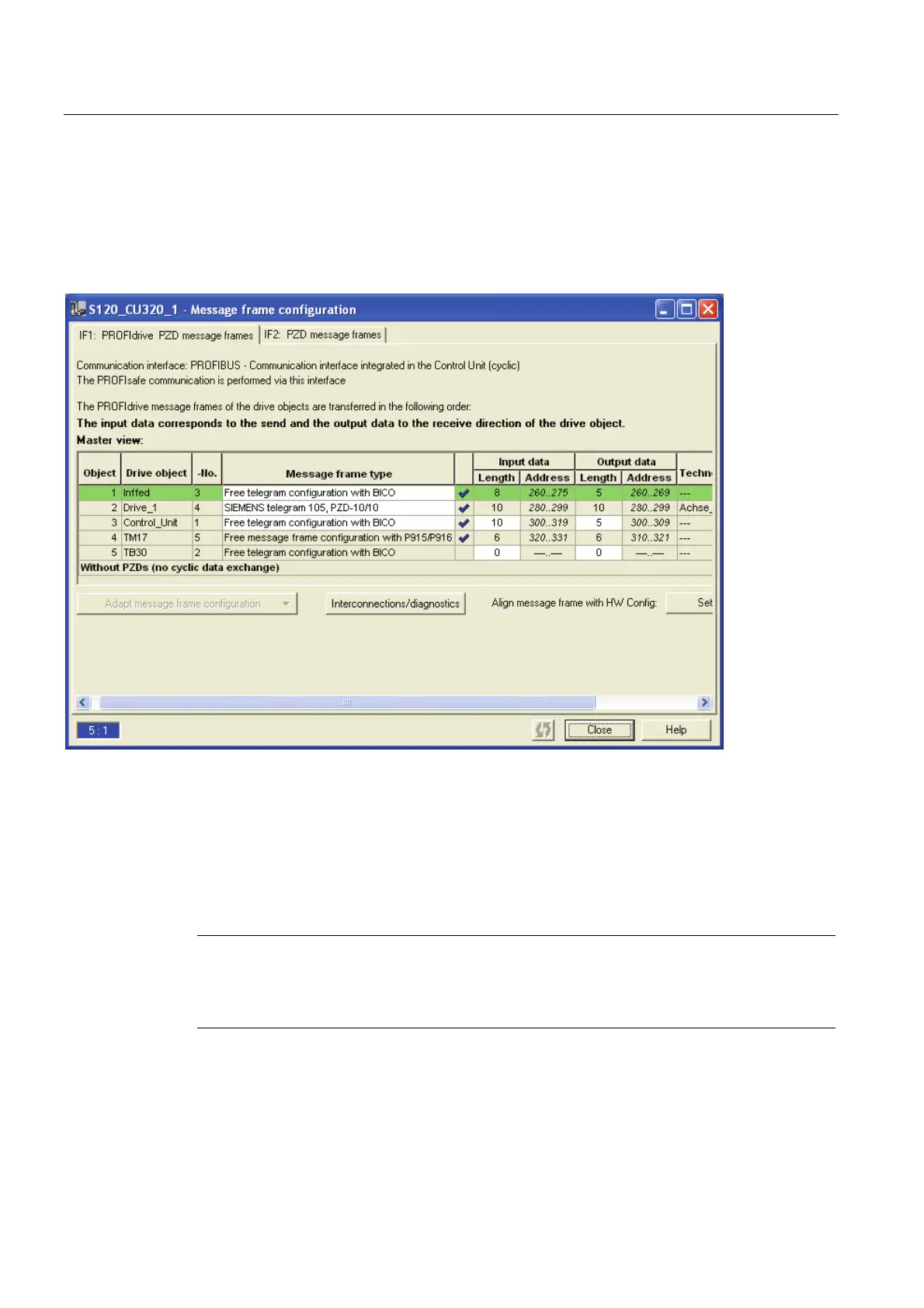

11. For alignment with the hardware configuration, switch to the
S120_CU320 > Communication > Message frame configuration
folder in the S7T Config project navigator.
The work area shows the newly added TM17 terminal module.
To align with HW Config, click "Align message frame with HW Config: Set up addresses".
Result
Following the alignment with HW Config, the TM17 terminal module is assigned the
input/output addresses via which it can be accessed on PROFIBUS DP (DRIVE).
For the further processing, note the entry of the TM17 row from the E Address column.
This address, 320..331 in this example, is required for the subsequent address assignment
of the measuring input.
Note
Always close the "Message frame configuration" window following the alignment with the
HW Config. Otherwise a subsequent change in the hardware configuration will not be
accepted.
