Commissioning
3.6 Creating technology objects
Connection of the SINAMICS S120 to the Technology CPU
86 Product Information, 09/2011, A5E00480378-04

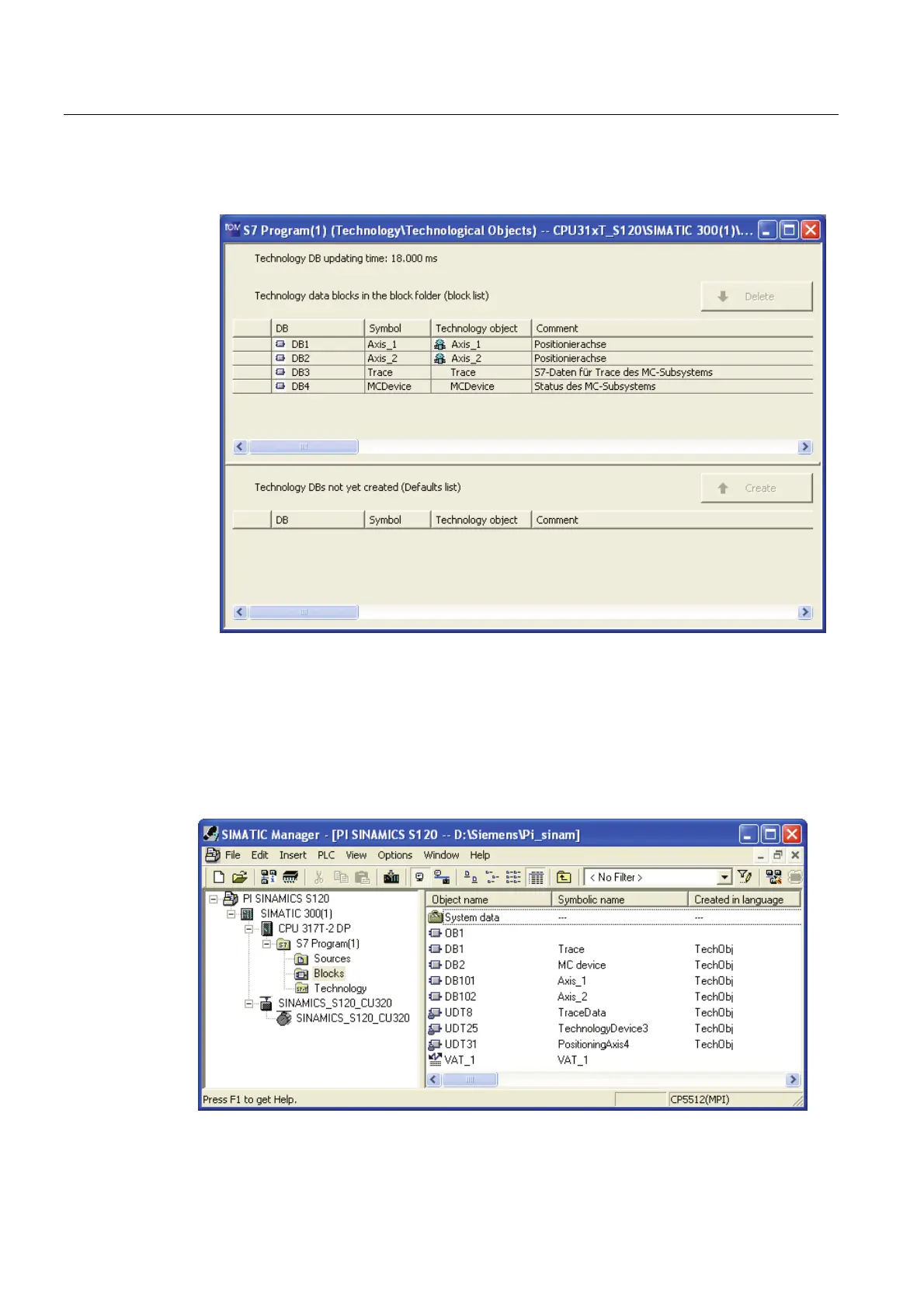

The created technology data blocks are displayed in the list of the technology data blocks
in the module folder. The Technology Objects Management program can then be closed.
Result
The created technology data blocks are now also in the SIMATIC Manager in the "Blocks"
folder of the SIMATIC 300 station. The icons of the data blocks are derived from the
designations of the technology objects in S7T Config.
In addition to technology data blocks, a number of User Defined Datatypes (UDT)
that from the basis for the technology data blocks will also be created.
