[dw_7SR45_transparentcover_step1, 1, en_US]

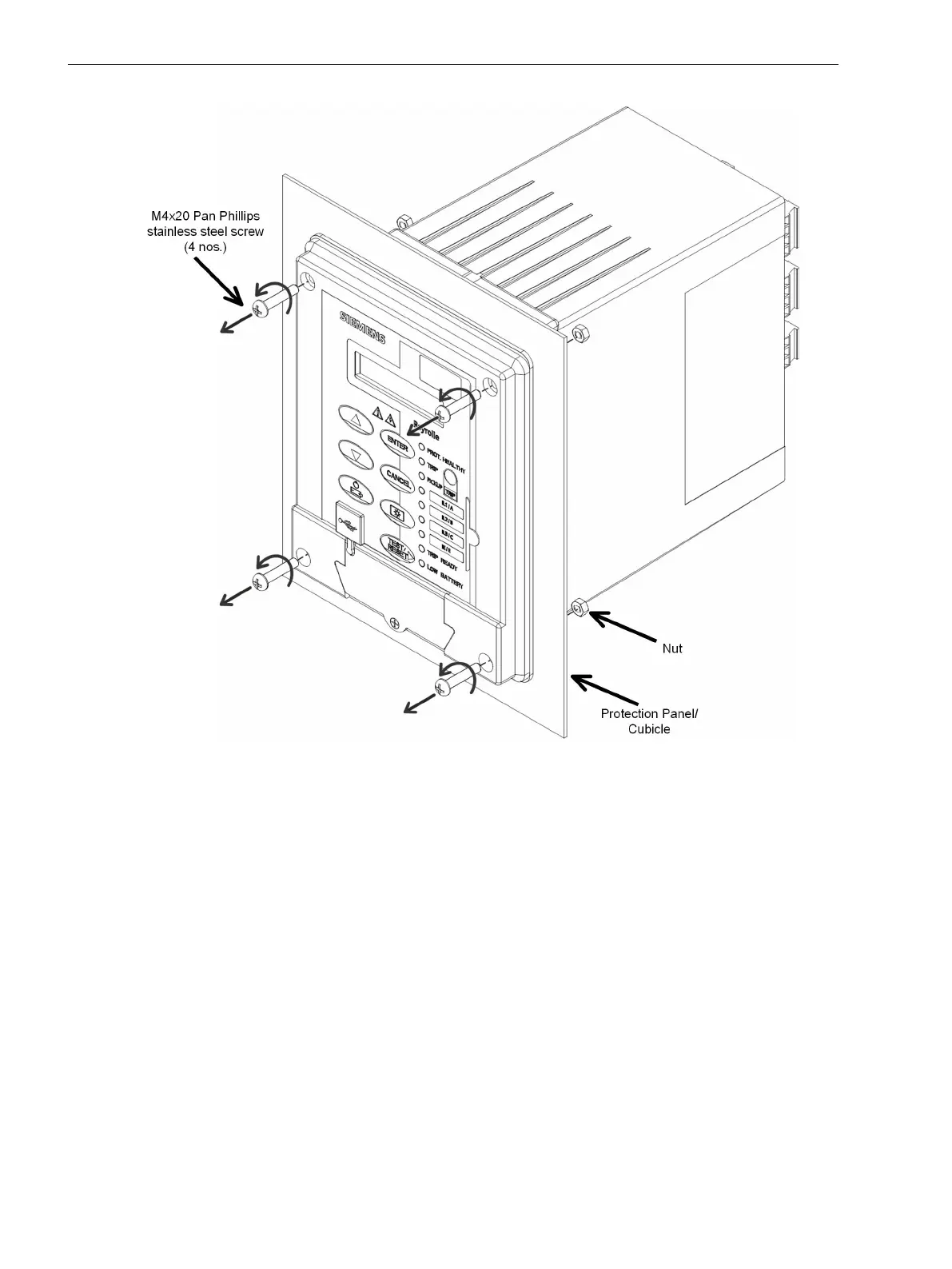

Figure 3-5
Removing Screws from Protection Panel/Cubicle
²
Fix the 7SR45 Argus Relay to protection panel/cubicle using 4 M4x20 Round SS studs, 4 lock washers and
4 nuts with a torque of 1.0 Nm.
Handling of the Device
3.2 Installing Transparent Front Cover
34 Reyrolle, Operating, Manual
C53000-B7040-C101-1, Edition 08.2020
