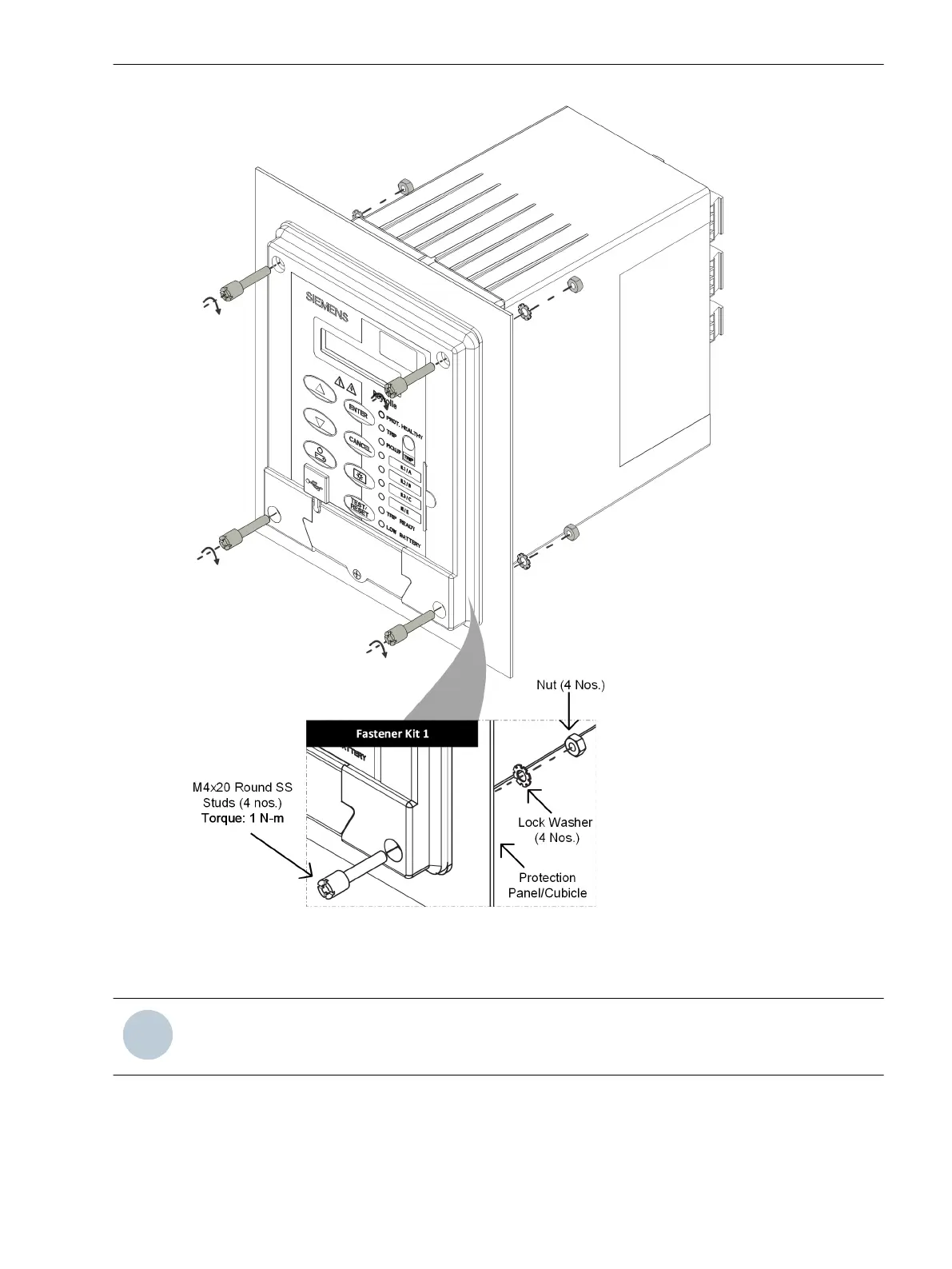

Figure 3-6
Fixing Relay to Protection Panel/Cubicle
²
Install the transparent front cover to the relay using 4 M4 knurled screws with a torque of 0.8 Nm.
NOTE
Ensure that the gasket is in place before fixing the M4 knurled screws.
²
To secure the transparent front cover with the device, fasten the seal through hole using the metal wire
seal.
