Siemens CP1430 TCP User Manual

2 Engineering
Ethernet Communication (ISO on TCP) between SIMATIC S5 and
SIMATIC S7-1500 Controllers
Entry-ID: 109482475, V1.2, 07/2019
88
© Siemens AG
2019 All rights reserved
No.
Action
4.

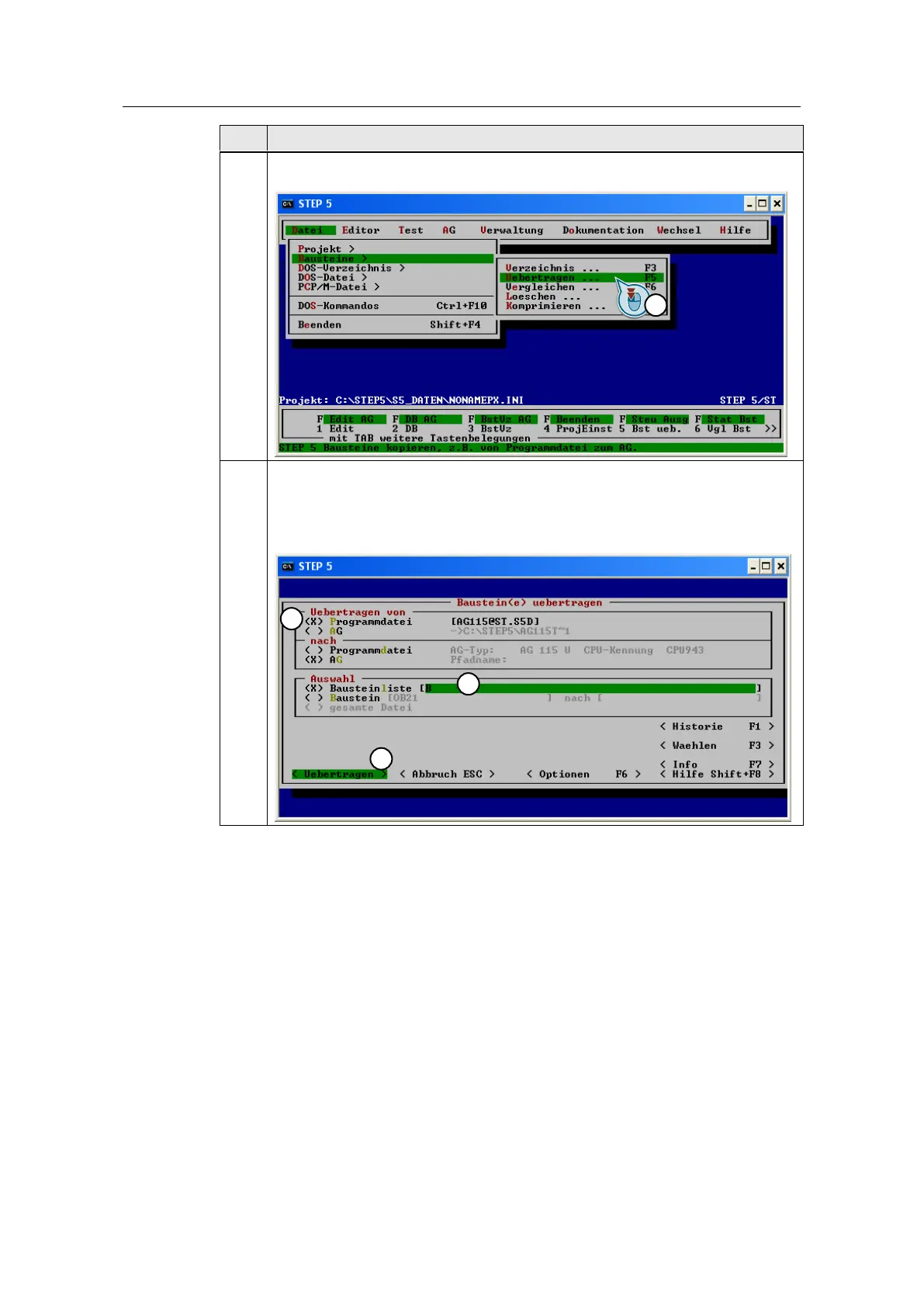

(1) In the STEP 5 main menu, double-click to select the menu items "Datei” ["File”]
> "Bausteine” ["Blocks”] > "Uebertragen” ["Transfer”] or press the function key "F5”.
5.
(1) In the transfer screen, select the transfer mode from "Programmdatei” [program
file] to "AG”.
(2) Under "Auswahl” ["Selection”] > "Bausteinliste” ["Block list”], select type "B” (all
blocks).
(3) Start transfer to the S5-CPU by clicking "Uebertragen” ["Transfer”].
1
2
3
1
