Siemens CP1430 TCP User Manual

2 Engineering
Ethernet Communication (ISO on TCP) between SIMATIC S5 and
SIMATIC S7-1500 Controllers
Entry-ID: 109482475, V1.2, 07/2019
89
© Siemens AG
2019 All rights reserved
Commissioning the CP1430 TCP
The table below shows how to commission the CP1430 TCP.
First, connect the engineering station with the installed NCM COM 1430 TCP
software to the PG interface of the CP1430 TCP.
Table 2-27
No.
Action
1.

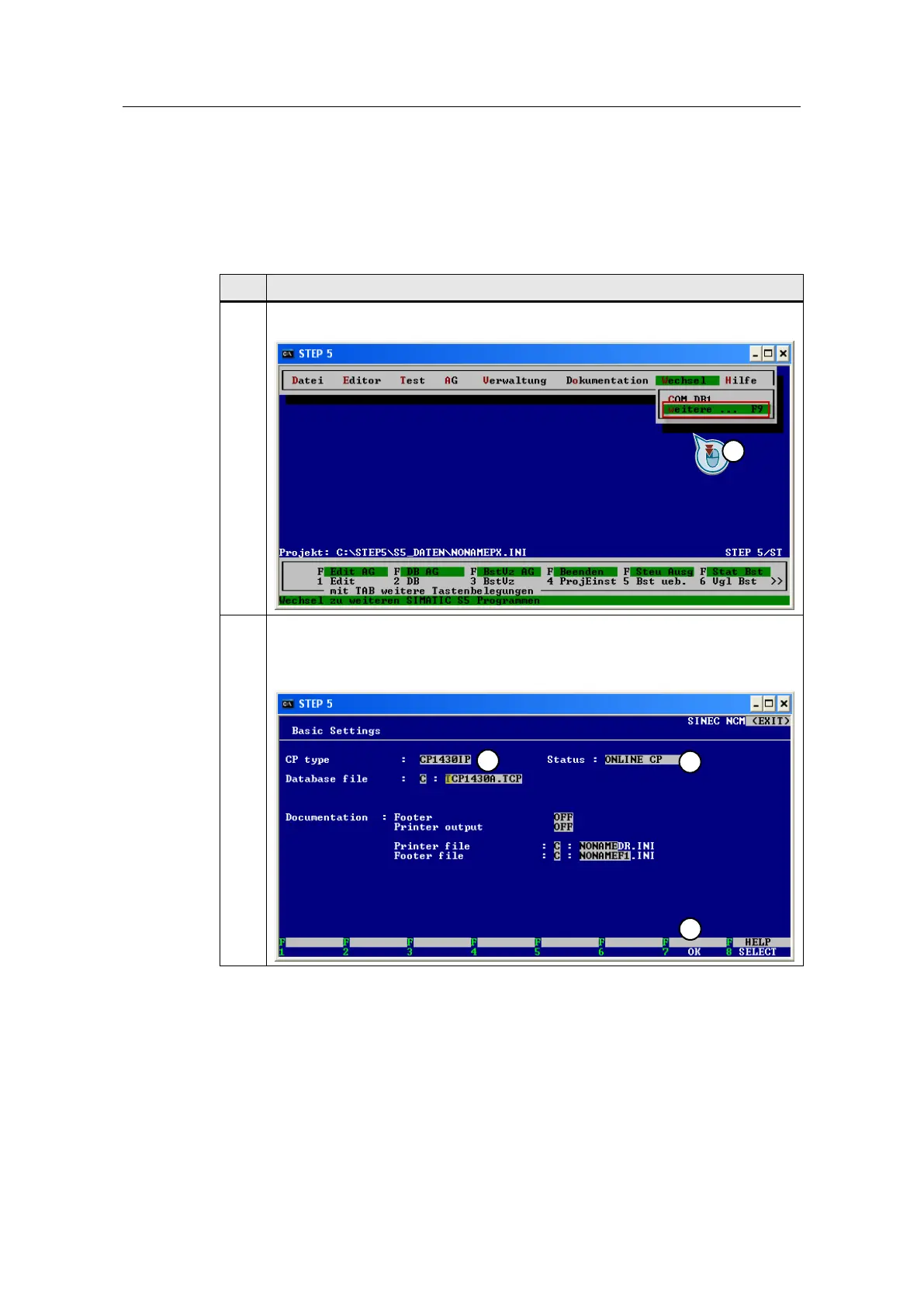

(1) In STEP 5, start your additional software NCM COM 1430 TCP by double-
clicking the menu item "weitere...” ["Further programs”] or press the F9 key.
2.
(1) Under "Database file”, navigate to your unzipped CP1430 TCP file
"TCP1430A.TCP”.
(2) Set the status to "online”.
(3) Click "OK” to confirm the settings.
1
2
3
1
