9.2.6 Assigning with the hardware tree
Components can be allocated to a geographical location in the system. This
assignment is a ↑ link.
Geographical allocation
Each device in the ↑ 'Hardware tree' has a unique address. In ↑ 'Detection tree', it
is possible to allocate room x on floor y to the device, for example.

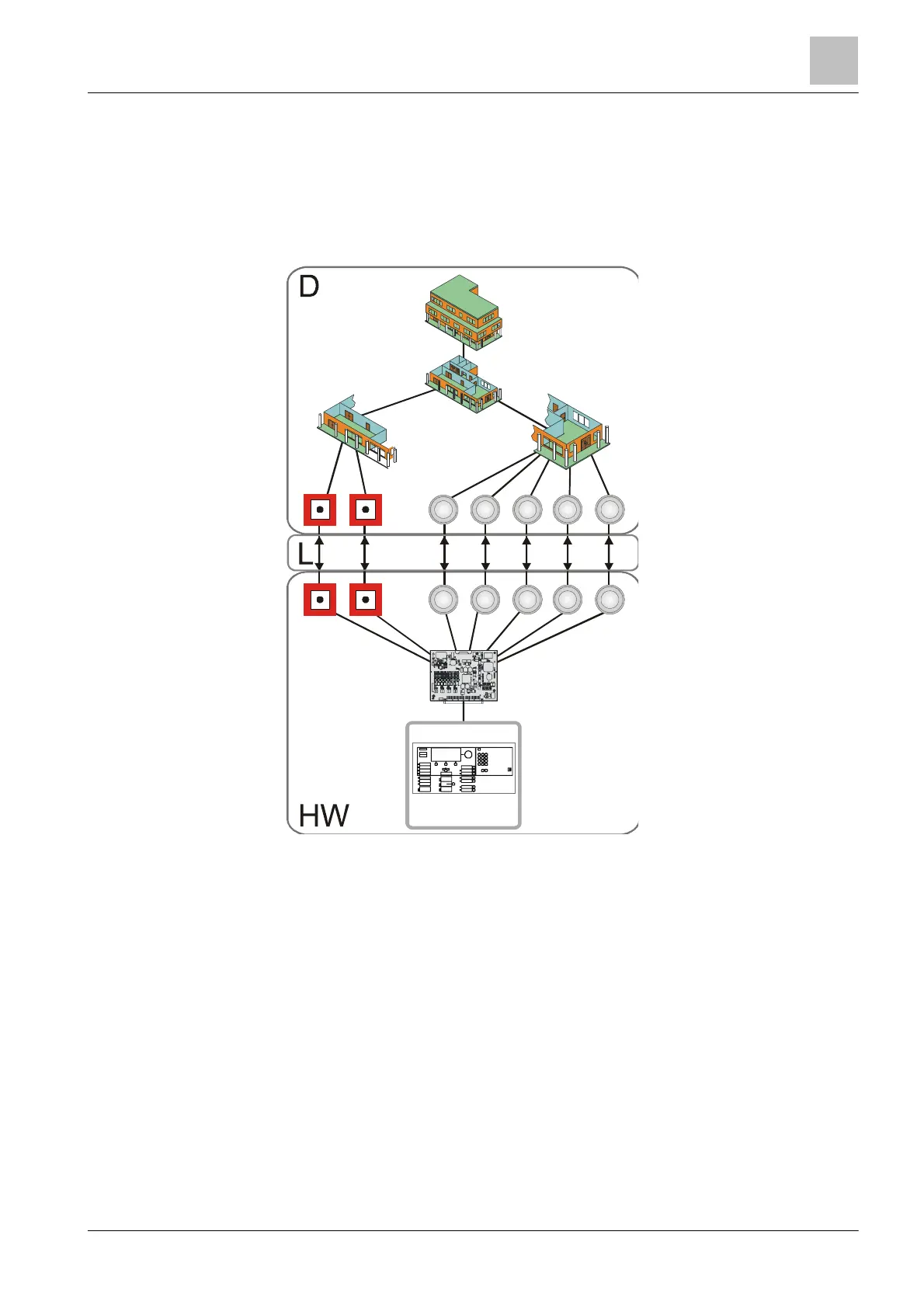

Figure 15: Sample ↑ assigning of the detection tree to the hardware tree
D ↑ 'Detection tree'
L ↑ Link
HW ↑ 'Hardware tree'
The physical and the ↑ logical channel of a device are assigned between the
↑ 'Detection tree' and ↑ 'Hardware tree'.
The physical channel is the lowest level in the 'Hardware tree' and maps the
physical function of a device.
The logical channel is the lowest level in the 'Detection tree' and maps the logical
function of a device.
