System description
Control
9
149 |
184
Bui
ld
ing T
ec
hn
olog
ies
A6V
10
21
1076_
i_
en_
--
Fire Sa
fety
2015
-
12
-
15
9.
5.1
Fir
e co
nt
rol
In t
he event of a fire, dif
ferent meas
ures are init
iat
ed au
tomat
ically
, suc
h as:
●
The clos
ing of
fire dampers and f
ire door
s
●
↑
Swit
ching off
fans and air condit
ioning syst
ems
●
The desc
ending of
elevators

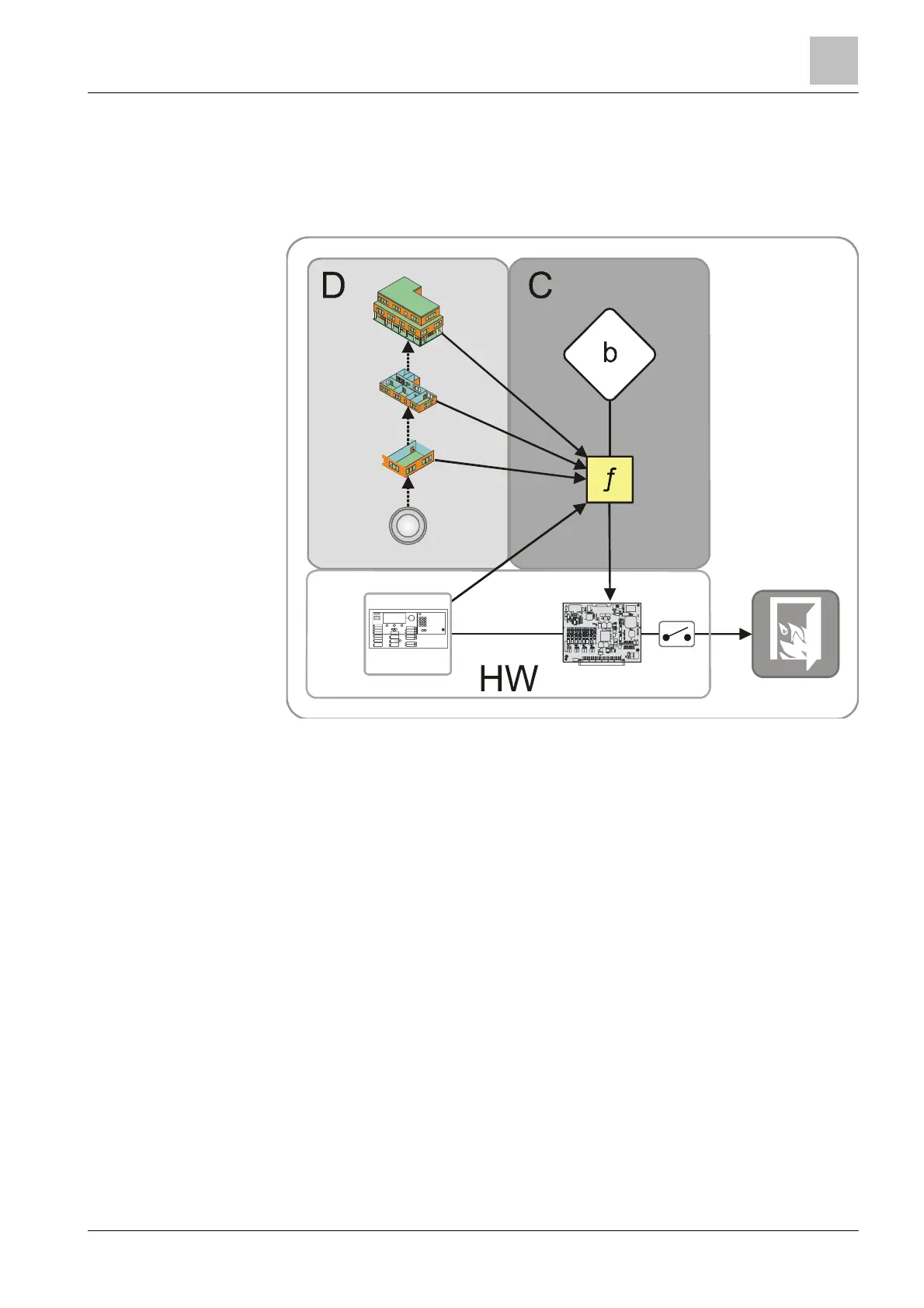

Figure
22: Inf
or
ma
tion flo
w f
or fire
con
tro
l
D
↑
'Det
ect
ion tree'
C
↑
'Cont
rol tree'
b
↑
'F
ire control
group'
f
'Fire c
ont
rol'
HW
'Hardware
tree'
148
150
Table of Contents
Default Chapter
1
Operation Manual
1
Table of Contents
3
1 About this Document
9
Applicable Documents
10
Technical Terms and Abbreviations
10
Revision History
11
How Displays Are Represented in the Document
13
Download Center
13
2 Safety
14
Safety Instructions
14
Safety Regulations for the Method of Operation
16
Standards and Directives Complied with
18
Release Notes
18
Cyber Security Disclaimer
18
3 Setup of the Person Machine Interface
19
Pmi
19
Evac Nl
21
Key Switch (Optional)
22
Standard Keys
22
Other Alarms
23
Person Machine Interface with FBP [AU]
23
Display
26
Normal View
26
Extended View
27
Fire Brigade View
27
Display with Window and List
27
Display with Window and Input Field
28
Display with Window and Command Response
28
Soft Keys
29
Navigation Buttons
30
Keypad
30
Menu Button
31
Button 'Ok
31
Button 'C
31
Leds
31
Menu Structure
32
Cerberus Remote
33
Cerberus Mobile
34
4 Operation Functions
35
Selection and Opening / Execution
35
Scrolling
35
Indication of the Position and Length of the List
36
Shortcut
36
Favorites
36
Entry of Numbers and Letters
37
Cerberus Remote Operation Modes
38
Cerberus Mobile Operation Modes
39
5 Operation
40
ALARM Procedure
40
ALARM Procedure PMI with FBP [AU]
42
Procedure in Case of Fault
44
Switching off / Switching on
45
Switching a Detector Zone off / on
45
Switching a Detector off / on
48
Temporary Switching-Off
51
Switching off / on the Remote Transmission Fire
53
Switching off Alarm Activation
57
Switching off Sabotage Evaluation [DE]
57
Log in / Change Access Level
58
Logging out from an Access Level
58
Switching between 'Manned' / 'Unmanned' Operation Modes
59
Changing Visibility
60
Deactivating Standby
60
Activating / Deactivating Expanded Visibility
61
Main Menu / Open Menu Item
62
Execute Commands - Basics
62
Execute Commands - General
63
Execute Commands - Object-Oriented
64
Executing Commands - Function-Oriented
66
Hide Command Confirmation Message
67
Selecting Elements or Events
68
Select Events
68
Selection in the Topology
69
Searching for Elements
71
Testing
74
Testing Detectors
74
Carrying out an Installation Test
75
Carrying out the Walk Test
75
Control Test
76
Testing Indicators
77
Activation / Deactivation / Reset
78
Activating an Alarm Indicator (AI)
78
Deactivating / Activating Alarm Devices
81
Activating / Resetting Zone
82
Activating / Deactivating Fire Control
85
Activating Evac Controls
87
Show Information
89
Polling Alarm Counters / Remote Transmissions
89
Polling the IP Address of the 'Station
90
Polling Reports
91
Entering the Configuration
92
Auto-Configure Station
93
Auto-Configure Line
94
Enabling / Disabling Cerberus Remote
96
Connecting Cerberus Remote
98
Setting up Cerberus Remote Link with Integrated IP
99
Operating Cerberus Remote
99
Specifying the Operation Mode for Cerberus Mobile
100
Enabling a Smartphone
100
Removing a Smartphone
101
Polling / Deleting the Event Memory
102
Settings / Administration
103
Change Language
103
PIN Administration
104
Setting the Buzzer Sound Level
105
Adjusting the Display Brightness
106
Setting Time and Date
106
Entering/Changing Customer Text
107
Insert Printing Paper
107
Switching off the Printer
110
Show Version
110
6 System Functions
111
Note on the Configuration of the Local Fire Detection Installation
111
Operating Condition
112
Operation Modes
112
Normal Operation
112
Isolation
113
Renovation
113
Normal Operation
113
Test
114
Detector Test
114
Installation Test
114
Walk Test
115
Control Test
115
Test Variants
115
Isolation
116
Renovation
116
Access Level and Access Rights
116
PIN Input Dialog
118
Logout Timeout
118
Visibility
118
Standby Visibility
119
Expanded Visibility
119
7 Commands with Required Access Levels
120
Switching On/Off' Command Group
120
Command Zone 'Test
121
Activating/Deactivating' Command Group
123
Command Group 'Information
124
Configuration' Command Group
124
Maintenance' Command Group
125
Report' Command Group
126
Other Commands
126
8 List of Elements
127
9 System Description
129
Overview
129
Topology
131
Hardware Tree
131
Detection Tree
132
Control Tree
136
Operating Tree
138
Network Tree
140
Assigning with the Hardware Tree
141
Functional Allocation
142
Acquisition
143
Evaluation
144
Control
148
Fire Control
149
Evacuation Control
150
Extinguishing Control with Sprinkler
152
Extinguishing Control with Extinguishing Control Unit XC10
153
Damper Control
154
Alarm Verification Concept (AVC)
158
Attendance Check
159
Investigation Time
159
Example of a Verification Process
159
Fire Alarming
161
Intervention Concept (IC)
163
Attendance Check
165
Intervention Monitoring
165
Example of an Intervention Process
165
Intervention Alarming
167
Events
168
Event Categories
168
Event Status Identification
169
Event Memory
169
Message Overview
170
List Representation and List Types
171
Event Lists
171
Element Lists
172
Selection Lists
172
Version Display for Station / Configuration Data
173
10 Faults / Troubleshooting
174
11 System Maintenance
175
Maintenance Recommendation
175
Opening the Control Panel [DE]
175
Glossary
176
Index
179
