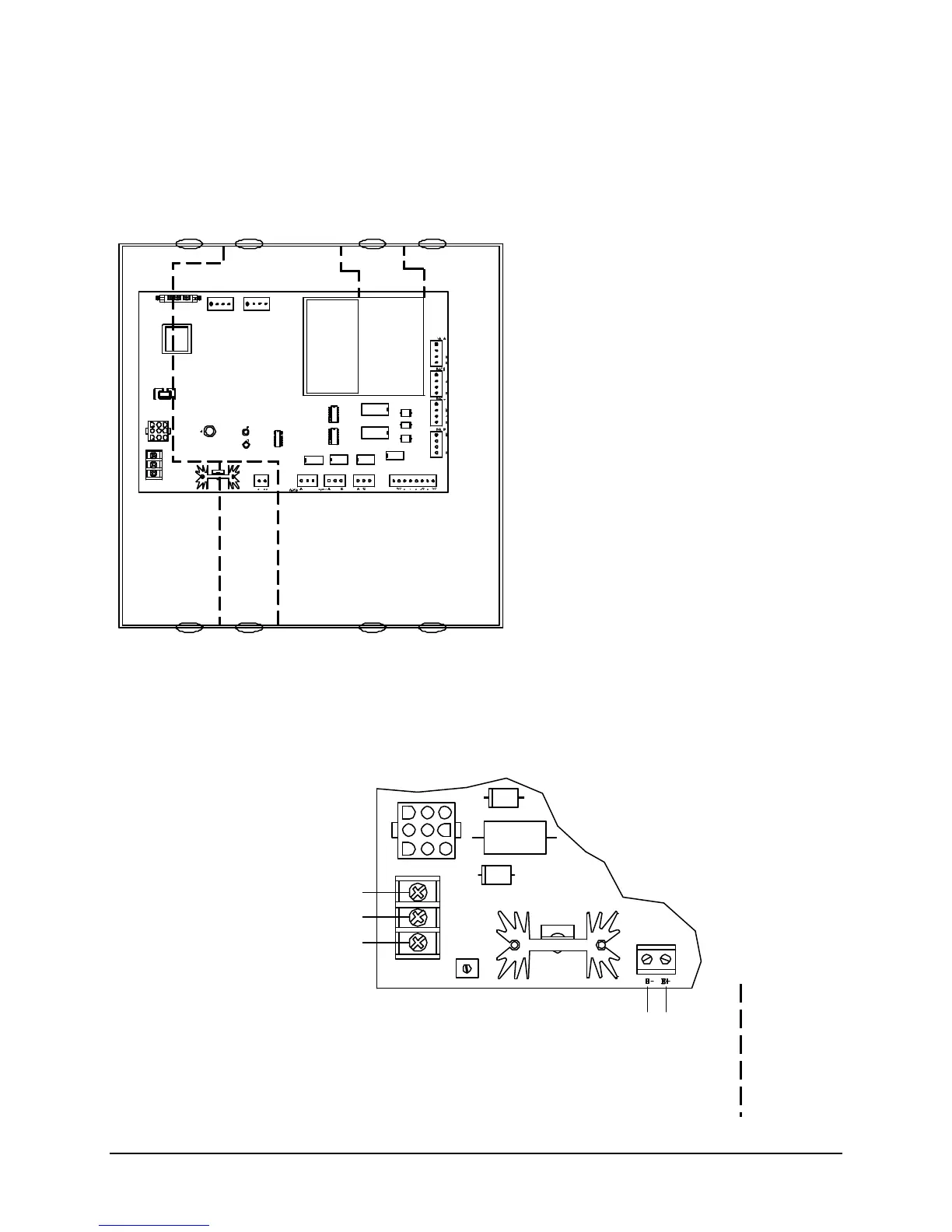

WIRING SEPARATION
All high voltage and non-power limited wiring must be kept separate from power limited wiring. A ¼”
separation must be maintained, with high voltage and non-power limited wiring running in separate
conduit openings from power limited wiring.
PRIMARY AND SECONDARY POWER WIRING
The AC main connections and the battery connections must be made along the left-hand side of the
board. Route all high voltage and non-power limited wiring together and away from power limited wiring.
24V Battery Set
(7 to 38AH)
Supervised
Non-Power Limited
120VAC 60Hz
1.3A max., Supervised
Non-Power Limited
AC
N
GND
Keep All Non-Power Limited Wiring
Separate from Power Limited Wiring
2*3
1
E C A
B G
F
A. Non-power limited - High Voltage
(AC power) or B
B. Non-power limited - High Voltage
(AC power) or A
C. Power limited
D. Non-power limited
(Battery If external enclosure required)
E. Non-power limited
(Phone line or local energy box)
F. Power limited or G
G. Power limited or F
D
