FS-100 Installation & Operation Manual
P/N 315-699461 21
C. Knock-Outs
1. To prepare the enclosure for electrical wiring, break out the appropriate conduit entry points. Note
the wiring diagram requirements for non-power limited and power limited wiring separation.
2. Attach conduit (if required) and run wires as required. Label each field cable for future reference.

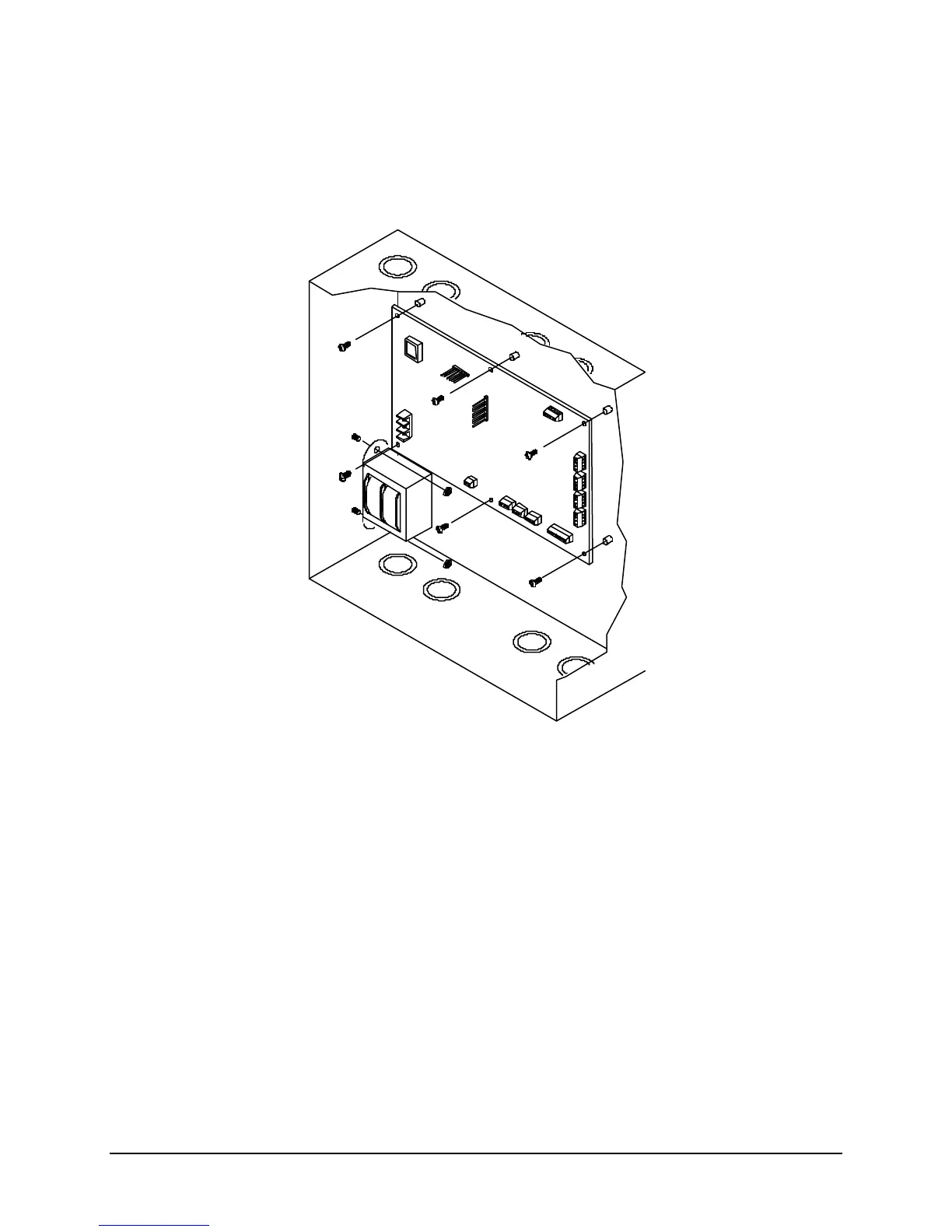

D. Main Board Installation
1. Secure the board to the back of enclosure using six of the provided #6-32 x 1/4 screws.
E. AC Supply Connection
1. Wire the AC supply to terminal block TB2 on the main board. The supply should originate from a
separate, fused circuit. It should be provided with a breaker or other means of isolation.
2. Observe the wiring order -- the bottom terminal is ground and must be wired back to the electrical
panel ground (earth) bonding point or another good ground acceptable to the authority having jurisdiction
and the electrical inspector. The neutral wire must be taken back to the electrical panel neutral
distribution bar and must not be grounded.
/!\ Dangerous voltages will be present on this terminal block and on other components
surrounding it and the transformer when the AC supply is turned on. Do not touch.
