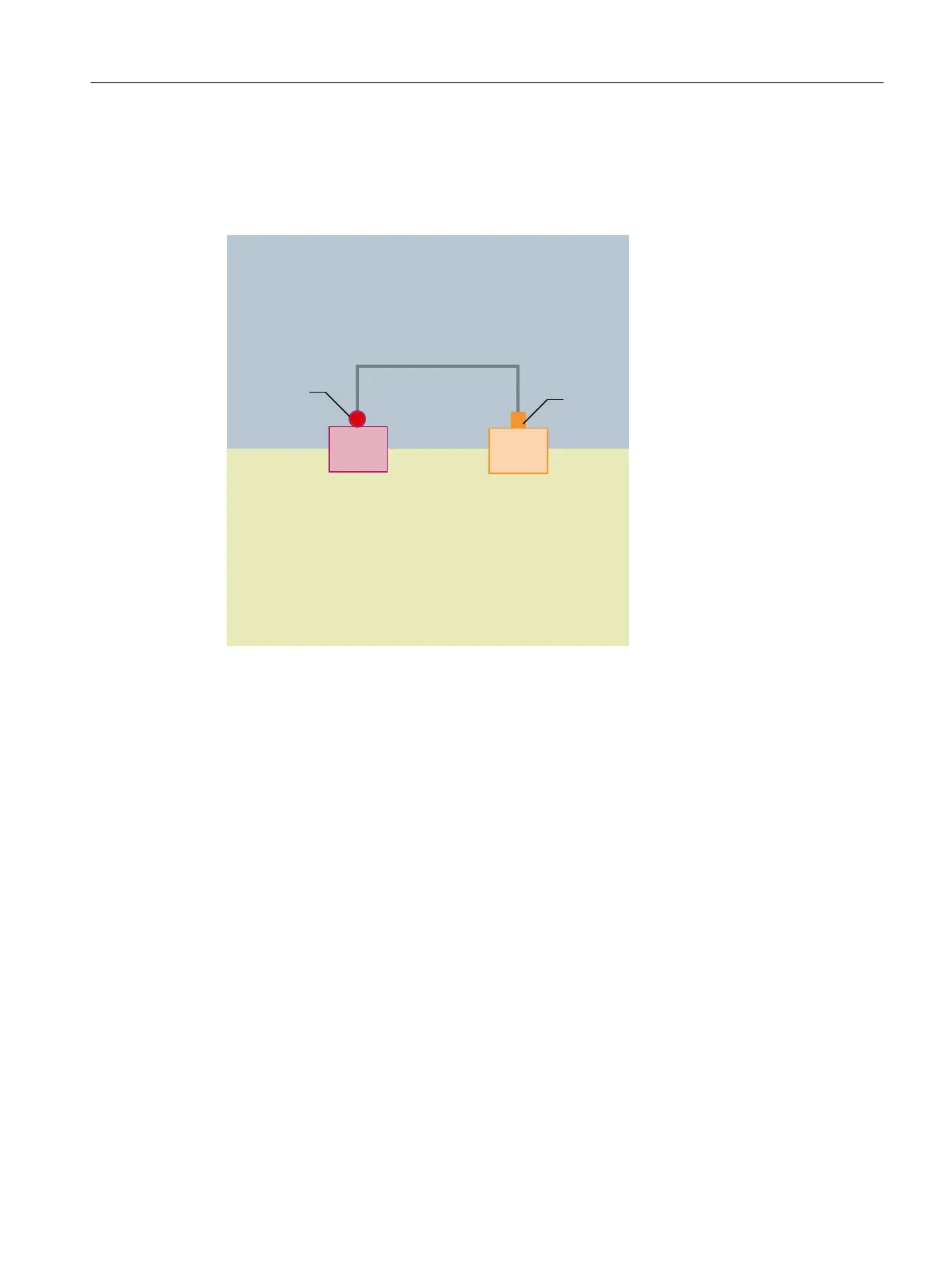

Configuration 2: NCU and PCU with direct OP
Description
1&83&8
6\VWHPQHWZRUN
&RPSDQ\QHWZRUN
;
(WK
The NCU and PCU are connected via a crossed Ethernet cable.
The NCU is the DHCP server with the IP address 192.168.214.1.
For this Eth 2 configuration, the PCU is assigned a fixed IP address in the range
192.168.214.241 – 192.168.214.249 with a subnet mask 255.255.255.0 .
General information and networking
1.4 Networking
Operator panel front: OP 012
Manual, 09/2016, A5E36371591B 79
