3.2 Keyboard
Keyboard
Several keys and keypads are installed on the operator panel front:
● The alphabetic block contains the letters A - Z and the space character.
● The numeric block contains the digits 0 - 9, and the characters "-", "/", "=", "+" and ".".
● The cursor key group is used to navigate on the screen.
● The control key group includes special functions.
● The mouse comprises a touchpad, for finger operation, as well as for cursor navigation and
also for the left and right mouse buttons.
● The softkeys call up functions that are available on the screen via a menu bar.
● The "Menu back" key switches back to the higher-level horizontal menu.
● The "Menu forward" key advances in the extended horizontal softkey bar.
● The "Menu select" key calls the main menu to select the operating area.
● The "Machine area" key selects the "Machine" operating area.
Switching between upper and lower case
To toggle between upper and lower case letters, press the key combination Ctrl + Shift
Upper case is always activated as standard.
Overview of the key symbols

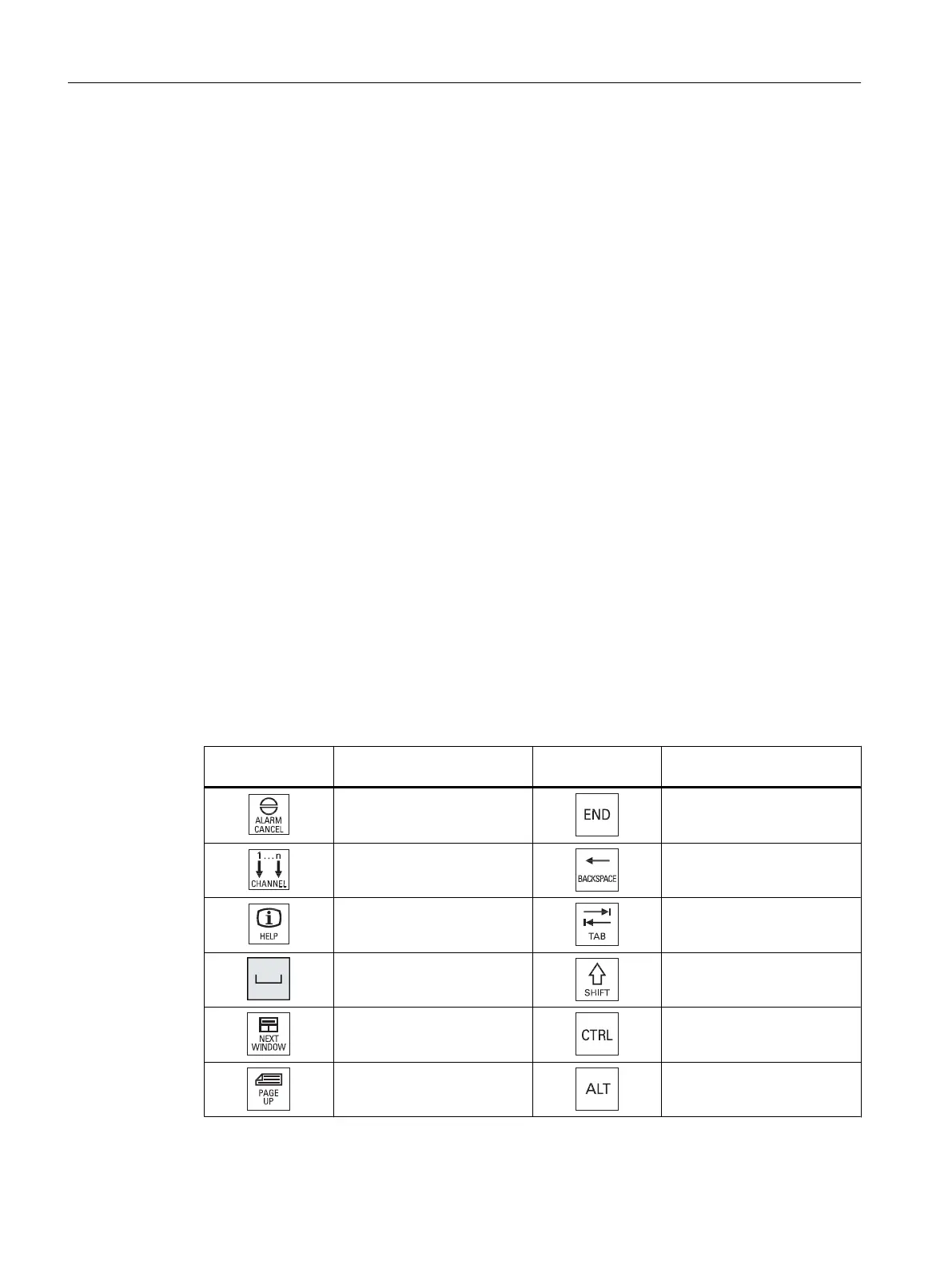

The key symbols used on the operator panel front are shown in the overview along with the
corresponding function keys on the PC keyboard.
Key Function corresponds to the
PC key function
Key Function corresponds to the
PC key function
Esc End
F11 Backspace
F12 Tab
Space (only intended for internal key‐
board changeover)
Home Ctrl key
Page up Alt key
Operator control and display elements
3.2 Keyboard
Operator panel front: OP 012
92 Manual, 09/2016, A5E36371591B
