Operating the Touch Panel
To operate the Touch Panel, use the integrated keyboard:

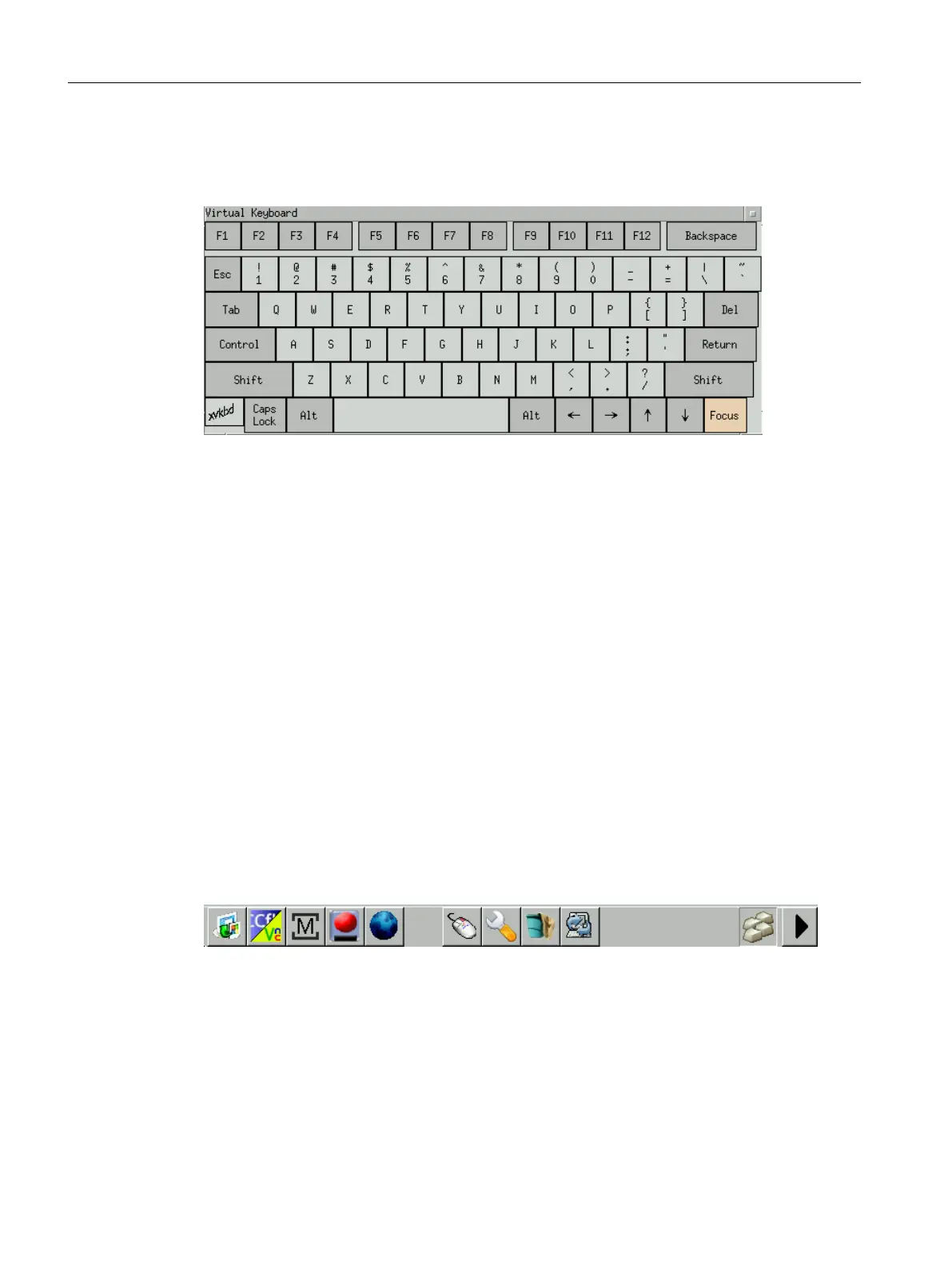

Figure 1-24 Virtual Keyboard
The integrated keyboard is activated using the button to the far right on the start bar.
See also
How to register a TCU on the system network (Page 55)
Using the TCU's main menu (Page 42)
Reference
SIMATIC HMI, Operating instructions: Thin Client, Thin Client PRO
1.4.2.6 This is how you configure the SIMATIC Thin Client Touch Panel
Operating the start bar
The following functions are available in the start bar of the SIMATIC Thin Client:
To select the SINUMERIK mode, press the button:
General information and networking
1.4 Networking
Operator panel front: OP 012
62 Manual, 09/2016, A5E36371591B
