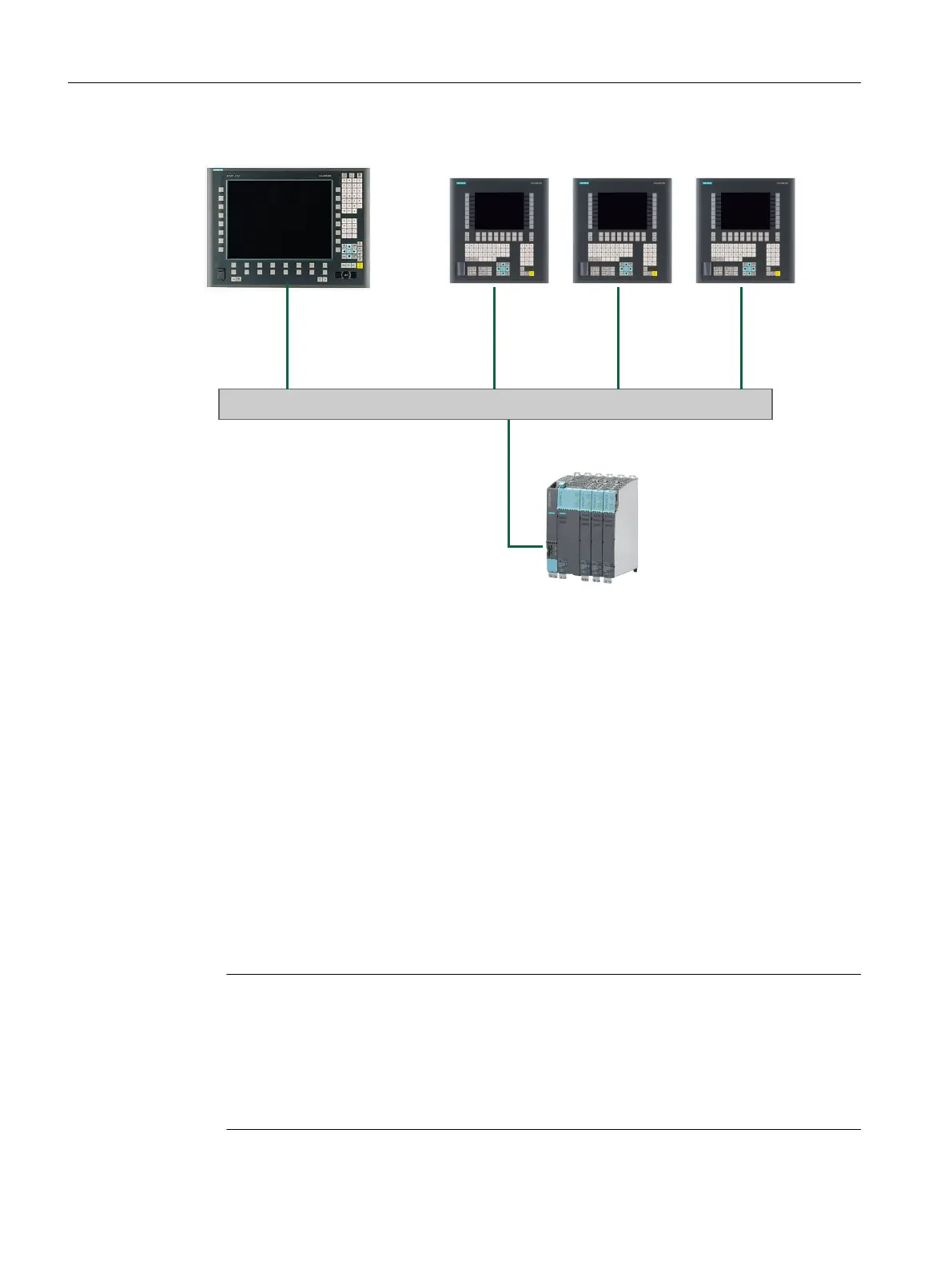

Figure 1-26 Configuration example
Proceed as follows
To configure the application example, proceed as follows:
1. PCU 50.3 with HMI Advanced
Deactivate the DHCP server on the PCU: For this select the option "Boot support runtime
and configuration only (TFTP/FTP)" on the "TCU support" tab of the "System Network
Center" program.
2. SINUMERIK 840D sl from CNC software, version 2.4 and higher
The systemconfiguration.ini configuration file is included on the SINUMERIK 840D
sl product DVD.
3. OP 08T operator panel
Once the installation of the OP 08T operator panel with SINUMERIK Operate has been
completed, copy the systemconfiguration.ini file from the /Siemens/
sinumerik/hmi/appl/systemconfig/tm/ directory to the /oem/sinumerik/hmi/
cfg/ directory. After this, a system restart is necessary.
Note
Subsequent changes
Once the file has been copied, no further settings (e.g. changing language) can be
implemented on the SINUMERIK Operate. If you want or need to implement changes later,
the systemconfiguration.ini file can be renamed (e.g., as systemconfiguration.save). After
this, a system restart is necessary. Following the restart, the full functional scope of
SINUMERIK Operate is available once again.
General information and networking
1.4 Networking
Operator panel front: OP 012
86 Manual, 09/2016, A5E36371591B
