Configuration and operation
4.3 Assign the address and network parameters with the Primary Setup Tool (PST)
IE/PB LINK PN IO
Operating Instructions, 11/2017, C79000-G8976-C393-02
49
Configuring and loading the LINK
1. Search the network for the LINK: "Network" > "Browse"
2. In the left-hand window, double-click on the displayed LINK.
The PROFIBUS and Ethernet interface of the LINK are displayed.
3. Select the Ethernet interface..
In the right-hand part of the dialog, the properties of the Ethernet interface are displayed.
4. Enter the values for the IP address and the subnet mask.

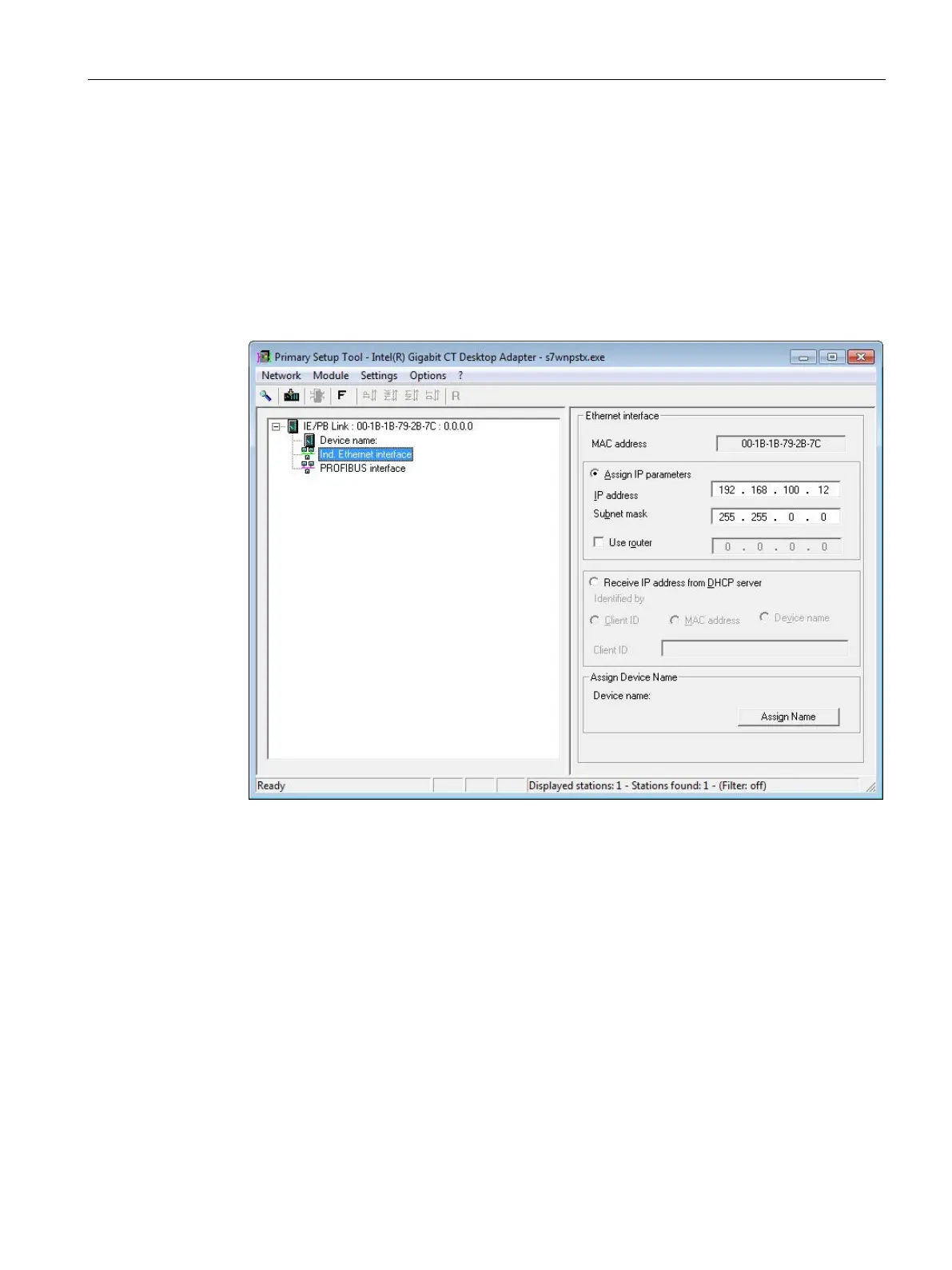

Figure 4-1 Ethernet interface: Entering the IP address and subnet mask
5. Select the PROFIBUS interface.
In the right-hand part of the window, the network settings of the PROFIBUS interface are
displayed.
