Siemens MICROMASTER 411 - Table 2-2 Gland Plate Detail; Figure 2-7 MICROMASTER 411 Gland Dimensions

2 Installation Issue 03/01
MICROMASTER 411 & COMBIMASTER 411 Operating Instructions
28 6SE6400-5CA00-0BP0

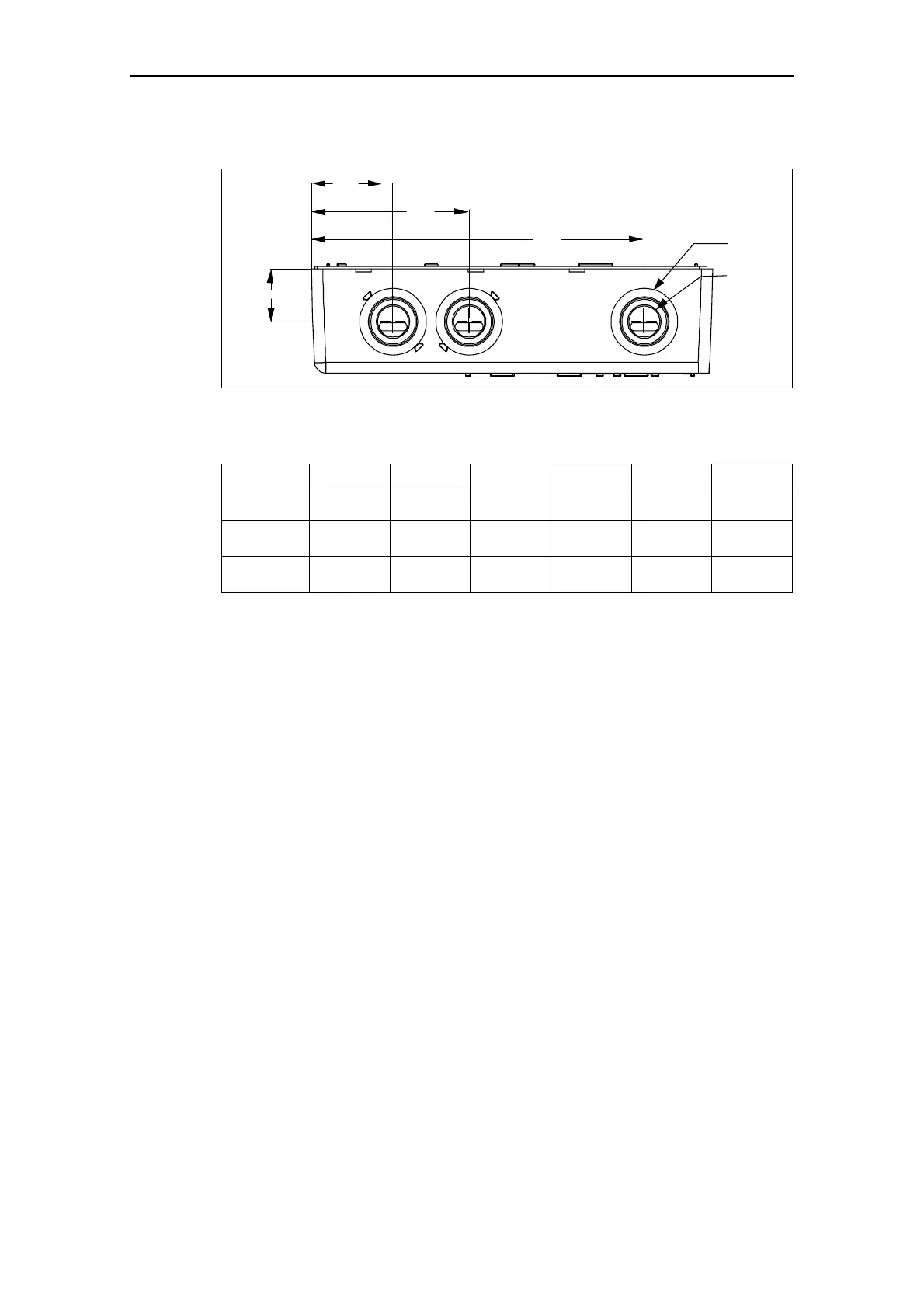

MICROMASTER 411 – Cable Gland Dimensions.
GH
GW3
GW2
GW1
GD1
GD2
Figure 2-7 MICROMASTER 411 Gland Dimensions
Table 2-2 Gland Plate Detail
GW1 GW2 GW3 GH GD1 GD2
Case Size
mm
(inch)
mm
(inch)
mm
(inch)
mm
(inch)
mm
(inch)
mm
(inch)
B
42,9
(1,68)
82,9
(3,26)
175,0
(6,89)
27,6
(1,09)
35
(1,38)
26
(1,02)
C
43,0
(1,69)
83,0
(3,27)
203,4
(8,01)
38,3
(1,51)
36
(1,42)
26
(1,02)
