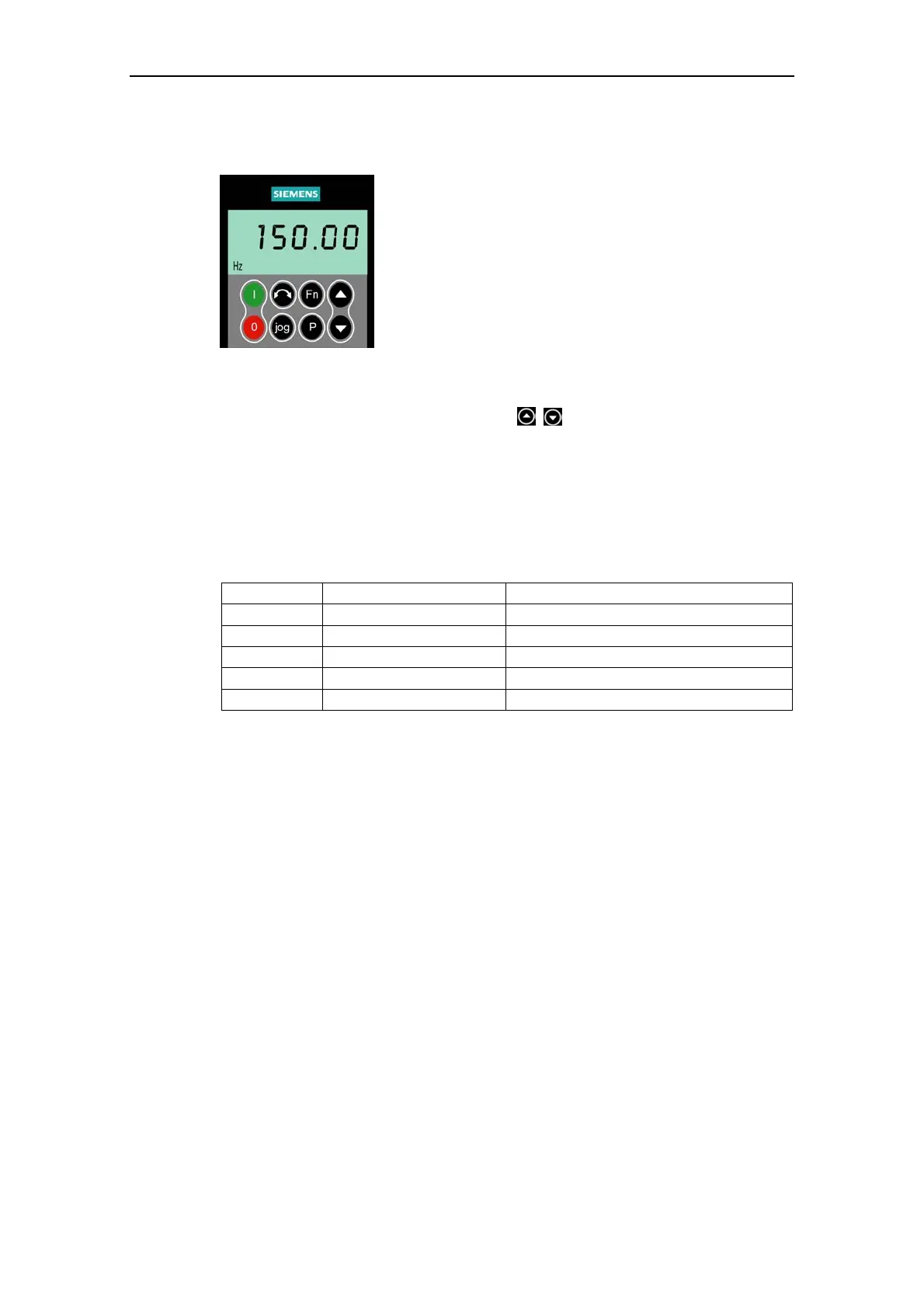

3.3.4.1 Commissioning with the Basic Operator Panel (BOP)
The Basic Operator Panel (BOP), which is available as an
optional accessory, provides the user with access to the
inverter parameters and enables you to customize the
settings of your COMBIMASTER 411 & MICROMASTER
411. The BOP is mounted in an Operator Panel Mounting
Kit and connected to the COMBIMASTER 411 &
MICROMASTER 411 via the serial interface (see Figure
3-9). The BOP can be used to configure several
COMBIMASTER 411 & MICROMASTER 411 Inverters.
The BOP features a five-digit, seven-segment display for
showing parameter numbers and values, alarm and fault messages and setpoints
and actual values. Parameter sets cannot be saved via the BOP.
Control functions for the inverter (ON/OFF,
, , reverse) are not active in the
works settings. In order to specify this command via the BOP, P0700 = 1 must be
set.
If the BOP connection is removed during normal running the drives is stopped and
the motor coasts to standstill.
Table 3-5 shows the factory default settings for operation via the BOP.
Table 3-5 Default Settings for BOP Operation
Parameter Meaning Default Europe (North America)
P0100 Operating Mode Europe/US 50 Hz, kW (60 Hz, hp)
P0307 Power (rated motor) kW (Hp)
P0310 Motor frequency rating 50 Hz (60 Hz)
P0311 Motor speed rating 1395 (1680) rpm [depending on variant]]
P1082 Maximum Motor Frequency 50 Hz (60 Hz)
