Siemens MICROMASTER 440 - 5 Setting Parameters; Introduction to Basic Operator Panel (BOP)

Issue 08/03
MICROMASTER 440
6SE6400-5GA00-0BP0
Quick Start Guide 43
5 Setting Parameters

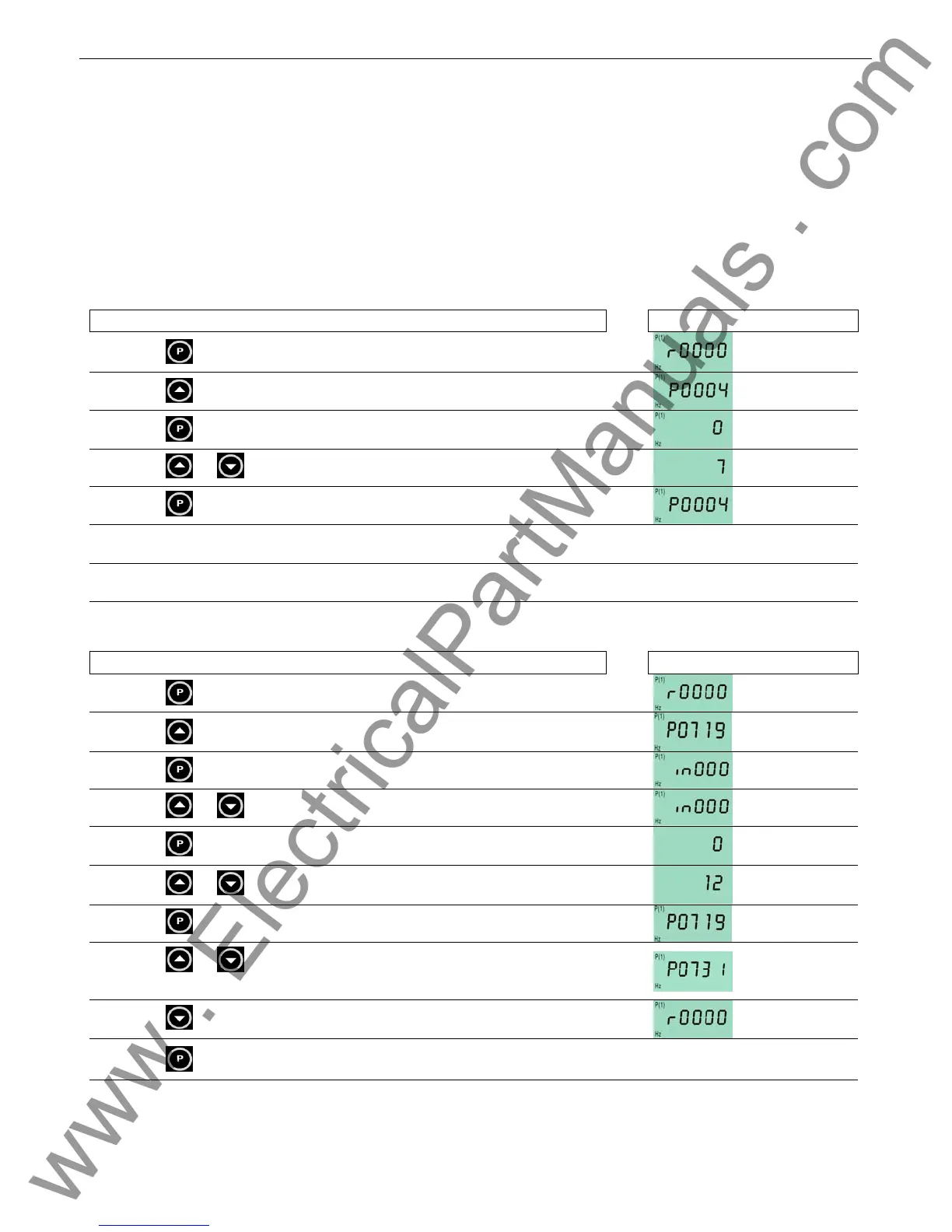

5.1 Introduction to Basic Operator Panel (BOP).
There are several types of parameters that can be changed on a MICROMASTER 440. This
procedure describes how to use the BOP to change parameters. There are also read-only parameters
denoted by rXXXX for information/monitoring purposes.
5.1.1 Changing a “normal” parameter.
Step Example of the display
1
Press
in order to access list of parameters.
2
Press
to select the parameter that you want to change.
3
Press
to access that parameter’s contents
4
Press
or
to scroll to desired setting
5
Press
to confirm and save the setting
6 Repeat steps 1 to 5 until all desired parameters are changed
NOTE: In this example, the user can only see the command parameters.
5.1.2 Changing an indexed parameter
Step Example of the display
1
Press
in order to access list of parameters.
2
Press
to select the parameter that you want to change.
3
Press
in order to reach the index number
Press
or in order to scroll to the required index
4
Press
in order to display the current setting
5
Press
or to scroll to desired setting
6
Press
to confirm and save the setting
7
Press
or to scroll to next desired parameter & repeat
steps 2 to 6
8
Press
to scroll back down to r0000
9
Press
to exit the parameter changing menu
