PID Control
9.2 Connections
BW500 and BW500/L
110 Operating Instructions, 12/2016, A5E33482052-AD
9.2.3

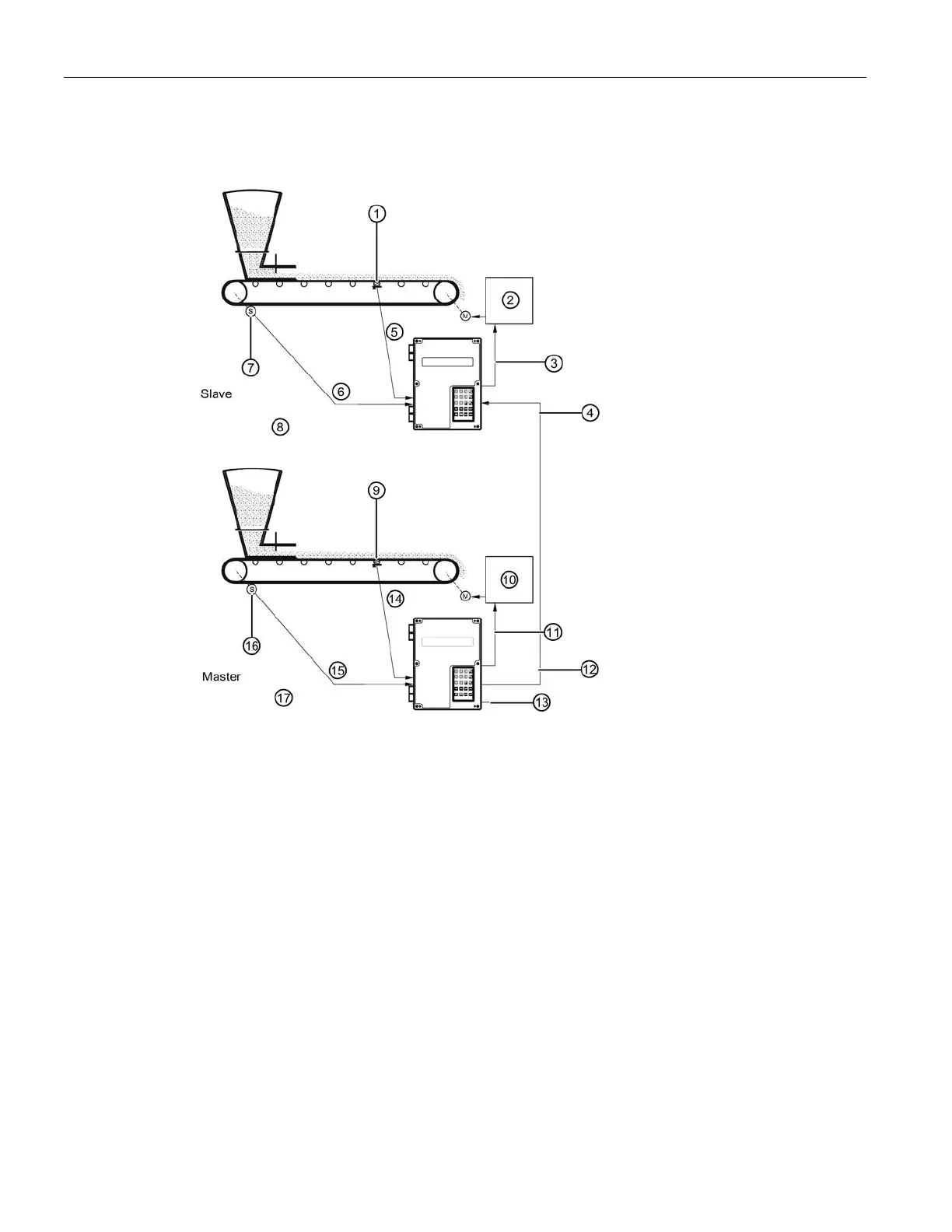

Setpoint Controller – Master/Slave Control
①
Belt scale
②
Motor speed controller
③
Control output rate (P201-02 = 4)
④
Remote ratio setpoint rate (P255-01 = 1 P418-01 to suit)
⑤
Load
⑥
Speed
⑦
Speed sensor
⑧
PID 1 process value source - rate (P402-01 = 1)
⑨
Belt scale
⑩
Motor speed controller
⑪
Control output rate (P201-02 = 4)
⑫
Rate* (P201-01 = 1)
⑬
Remote setpoint rate (P255 - 01 = 1)
⑭
Load
⑮
Speed
⑯
Speed sensor
⑰
PID 1 process value source - load (P402-01 = 1)
*P201-03=1 also applicable
