PID Control
9.2 Connections
BW500 and BW500/L
Operating Instructions, 12/2016, A5E33482052-AD
111
9.2.4

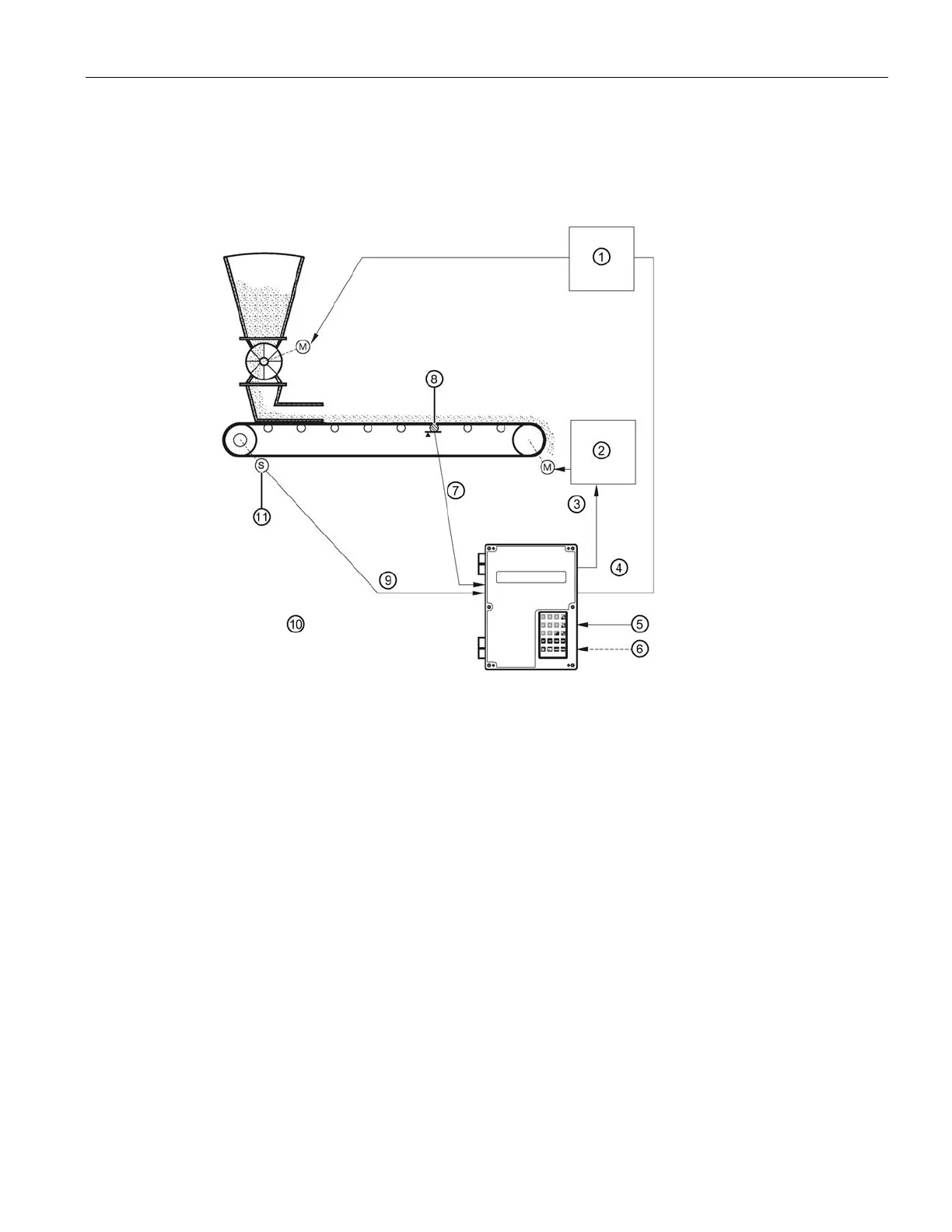

Setpoint Controller – Rate and Load Control
①
Motor speed controller - rate
②
Motor speed controller - load
③
PID 1 control output, (P201-02 = 4)
④
PID 2 control output, (P201-03 = 4)
⑤
PID 1 remote setpoint - load (P255-01 = 1)
⑥
PID 2 remote setpoint - rate (P255-02 = 1)
⑦
Load
⑧
Belt scale
⑨
Speed
⑩
PID 1 process value source - load (P402-01 = 2), PID 2 process value source - rate (P402-02 =
1)
⑪
Speed sensor
