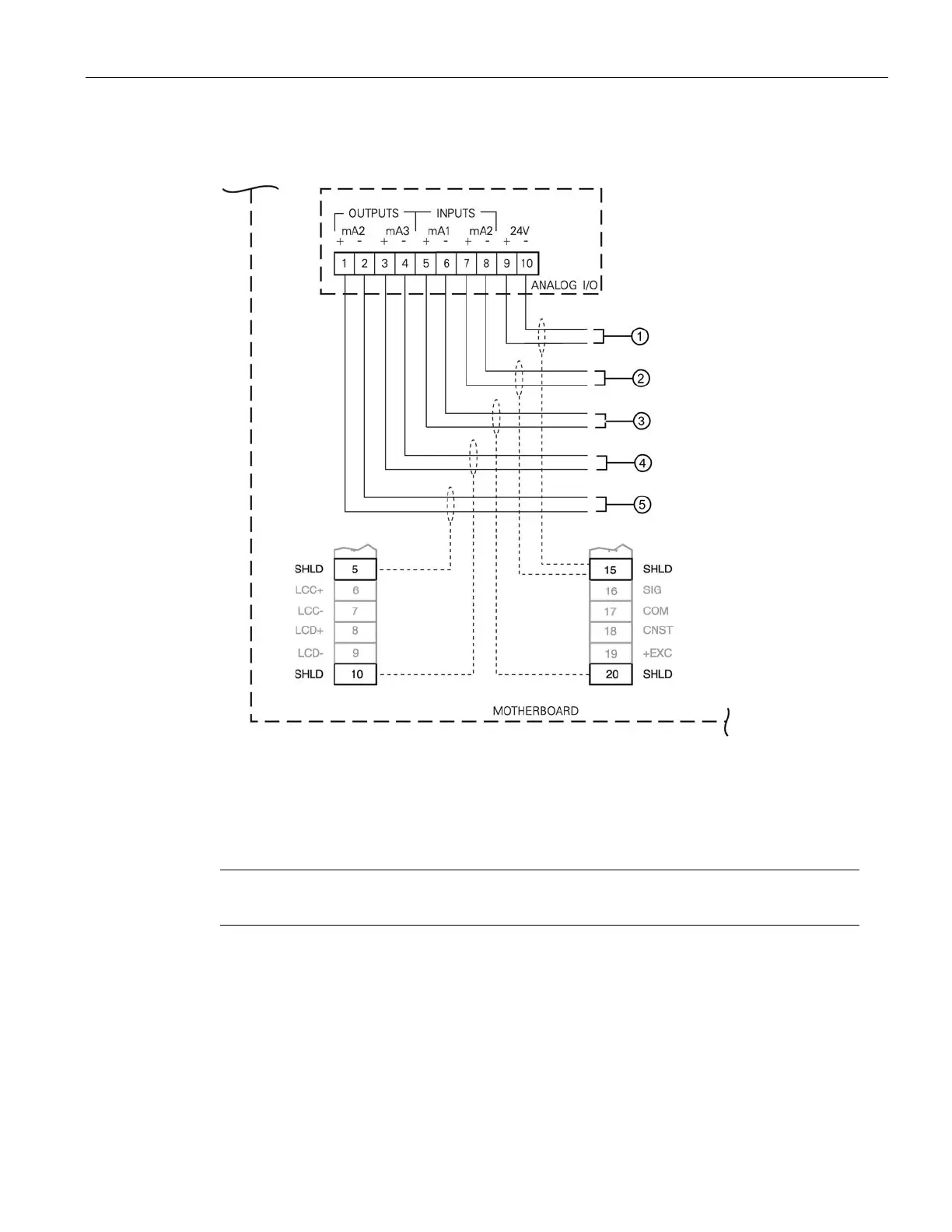

5.15 mA I/O Board Connections
BW500 and BW500/L
Operating Instructions, 12/2016, A5E33482052-AD
43
5.15
mA I/O Board Connections
①
Auxiliary supply output, isolated 24 V DC at 50 mA, short circuit protected
②
From customer instrumentation, isolated mA input, 200 Ω
③
From customer instrumentation, isolated mA input, 200 Ω
④
To customer instrumentation, isolated mA output, 750 Ω maximum load
⑤
To customer instrumentation, isolated mA output, 750 Ω maximum load
Note
mA I/O Board connections are not available for BW500/L.
