Recalibration
7.7 Linearization
BW500 and BW500/L
96 Operating Instructions, 12/2016, A5E33482052-AD
①

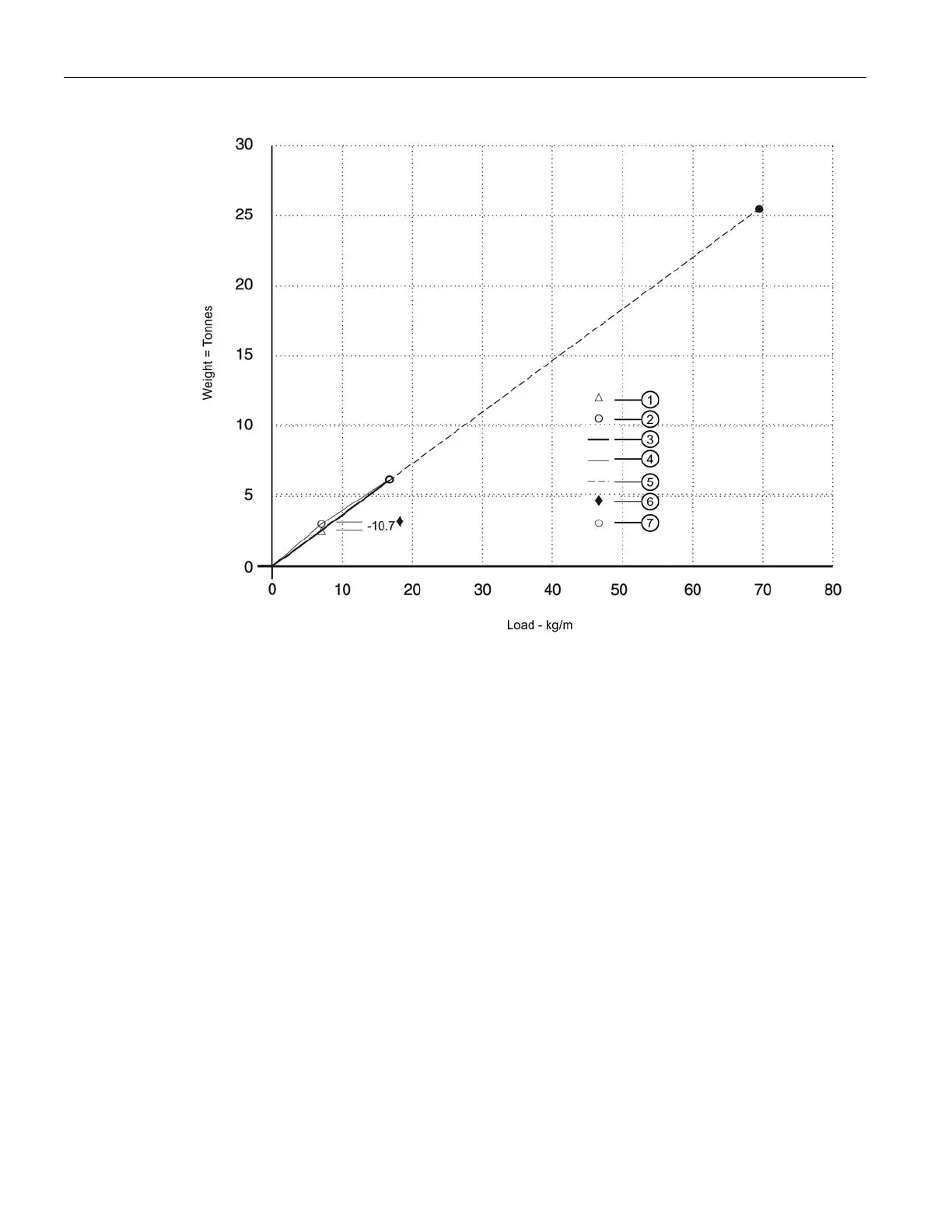

Actual weight per material test
②
Totalized weight by BW500
③
Belt scale response
④
Linearized BW500 response
⑤
Internal response 100% - 150% of span
⑥
% compensation
⑦
Span (100%)
For Parameter reference, go to
Parameters (Page 153)
