Siemens MOBILETT Plus HP Installation Instructions

Installation 2 - 27
Siemens AG SPR8-220.031.04 Page 27 of 30 MOBILETT Plus/ -E/ -HP
Medical Solutions Rev. 04 09.03 CS PS 24

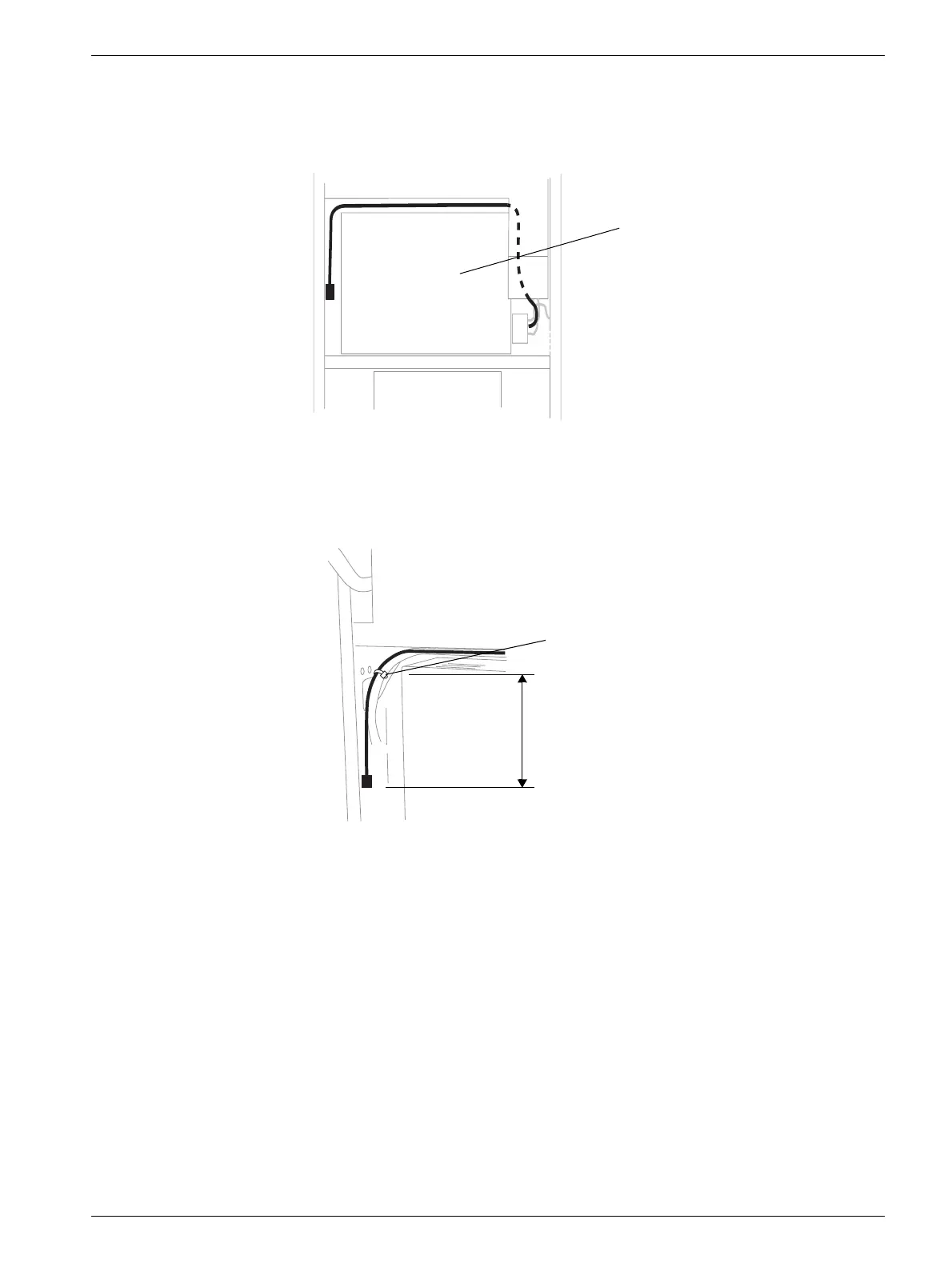

12. The end of the cable with pin plug K23 is placed as shown in Fig. 37. The cable
runs on top of the protective cover over board D8 (pos. 1 / Fig. 37) along with the
other cables.
13. Fasten the end with a cable tie (2.5x100mm) to one of the cables already present
(see pos. 1 / Fig. 38). Leave about 7 cm hanging.
MOB00525
Fig. 37 Cable from power supply
1
D8
MOB00526
Fig. 38 Fastening of cable
1
approx. 7 cm
D8
